ENP-360-48
65.73
Details

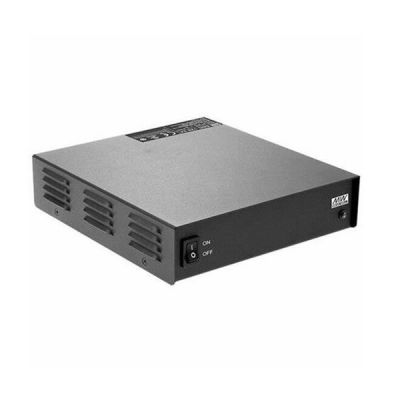

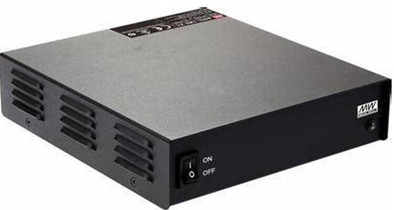

Meanwell ENP-360-48 is 360W desktop type power supply with 55.2V6.5A350mVp-p47.5-58.8V. The unit works perfectly for communication related applications. With the standard 7" width size in the land mobile radio field, it provides the most frequently used voltage in the communication field. ENP-360-48 could operate for the ambient temperature range -30℃~+70℃ under free air convection. Compared with ESP and ESC, it has significant improvement: wide input range (88~132VAC/ 176~264VAC→90~264VAC), new active power factor correction function (Active PFC), extended warranty period (2 years→ 3 years) and complete safety certification (UL/CUL/CB/CE/FCC). Furthermore, ENP-360-48 complies with the latest global energy consumption standards EISA 2007/DoE Level VI, NRCan, EU ErP and CoC Fifth Edition. ENP-360 adds programmable (Programmable) function controlled specially by MCU in the design, so that users can adjust the appropriate charging methods and parameters for different battery specifications through personal computers and intelligent programmer SBP-001 and special software. In light of its longevity, good quality, and high reliability, Meanwell ENP-360-48 is very suitable for radio system backup solutions, land radio systems, monitoring systems electric and bicycle chargers and other applications.
Meanwell ENP-360-48 Specifications
| Model | ENP-360-48 | ||
| OUTPUT | DC VOLTAGE | 55.2V | |
| RATED CURRENT | 6.5A | ||
| CURRENT | RATED | 0-6.5A | |
| PEAK | 8.2A | ||
| WATTAGE | RATED | 359W | |
| PEAK | 453W | ||
| RIPPLE & NOISE (max.) | 350mVp-p | ||
| VOLTAGE ADJ. RANGE | 47.5-58.8V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGULATION | ±0.5% | ||
| SETUP, RISE TIME | 1000ms, 100ms at full load | ||
| HOLD UP TIME (Typ.) | 20ms at full load | ||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||
| EFFICIENCY (Typ.) | 94.00% | ||
| AC CURRENT | 3.8A/115VAC 1.9A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 60A at 230VAC | ||
| NO LOAD POWER CONSUMPTION | <0.5W | ||
| LEAKAGE CURRENT | <3.5mA / 240VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, recovers automatically after fault condition is removed | |
| OVERLOAD | Normally works within 110 ~ 125% rated output power for more than 3 seconds and switches to constant current limiting, with auto-recovery after the peak load condition is removed | ||
| Constant current limiting, if >125% rated power, with auto-recovery after the overload condition is removed | |||
| OVER VOLTAGE | 62.1-72.9V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, EAC TP TC 004, J62368-1(2020)(Only for 12V,24V) approved; Meet BS EN/EN62368-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN55035 | ||
| Others | MTBF | 1199.8K hrs min. Telcordia SR-332 (Bellcore) ; 147.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 192*178*45.5mm (L*W*H) | ||
| PACKING | 1.5Kg; 10pcs/16Kg /1.38CUFT | ||
Meanwell ENP-360-48 Features
l 3 years warranty
l Energy efficiency Level VI
l 125% peak load capability
l Universal AC input/Full range
l Built-in active PFC function
l No load power consumption <0.5W
l Fanless design, cooling by free air convection
l Comply with EISA 2007/DoE, NRCan and EU ErP
l Protection: Short circuit/Overload/Over voltage/Over temperature
Meanwell ENP-360-48 Applications
l Land mobile radio system
l Surveillance system
l TV antenna facility
Meanwell ENP-360-48 Mechanical Diagram
