ENC-240-48
70.73

ENC-240-48

$70.73

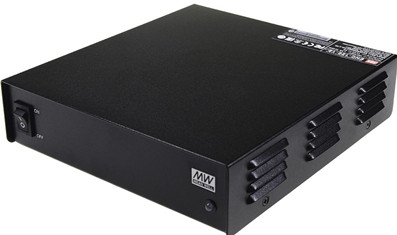

Meanwell 240W Programmable Desktop Type Battery Charger with 57.6V55.2V36-60V4A230.4W15-45AH<1mA90~264VAC 127~370VDC

- +
Availability:In stock
SKU Meanwell ENC-240-48
Brand Meanwell
Details

Meanwell ENC-240-48 is single output 240W AC/DC desktop type charger with 57.6V55.2V36-60V4A230.4W15-45AH<1mA. The item is equipped with 3 stage charging curve, and accepts 90~264VAC input. Meanwhile, it provides built-in active power factor correction (PFC) function, 7" standard width, and complete safety certification (UL/CUL/CB/CE/FCC). In addition to the embedded pre-defined charging curves, the default curve is programmable, and therefore able to accommodate different types of batteries such as lead- acid batteries (gel, flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). The design is specially controlled by MCU, permitting users to adjust the appropriate charging methods and parameters for different battery specifications. Furthermore, ENC-240-48 could work for the ambient temperature range -30℃~+70℃ under free air convection. it is also supplied with various protections such as Short circuit, Over voltage, Over temperature, Battery under voltage, Battery over voltage and Battery reverse polarity protection. In light of its longevity, good quality, and high reliability, Meanwell ENC-240-48 is very suitable for radio system backup program, land radio system, monitoring system electric and bicycle charger and other applicationsMeanwell ENC-240-48 Price and Datasheet Programmable Desktop Type Battery Charger External Battery Charger 240W YCICT

Meanwell ENC-240-48 Encoding

ENC Series Name
240 Rated Wattage
48 Nominal Voltage

Meanwell ENC-240-48 Specifications

Model ENC-240-48
OUTPUT BOOST CHARGE VOLTAGE (Vboost) (default) 57.6V
FLOAT CHARGE VOLTAGE (Vfloat) (default) 55.2V
CHARGE VOLTAGE RANGE 36-60V
OUTPUT CURRENT(CC) (default) 4A
RATED POWER 230.4W
RECOMMENDED BATTERY CAPACITY (AMP HOURS) 15-45AH
LEAKAGE CURRENT FROM BATTERY (Typ.) <1mA
Input VOLTAGE RANGE 90~264VAC 127~370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) 93.00%
AC CURRENT 2.5A/115VAC 1.25A/230VAC
INRUSH CURRENT(Typ.) COLD START 75A at 230VAC
LEAKAGE CURRENT <3.5mA / 240VAC
PROTECTION SHORT CIRCUIT Protection type : Shut down O/P voltage, re-power on to recover
OVER VOLTAGE 62.1-72.9V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
REVERSE POLARITY By internal fuse
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION TEMPERATURE COMPENSATION By NTC
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1, UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035, BSMI CNS13438
Others MTBF 1423.3K hrs min. Telcordia SR-332 (Bellcore) ; 155.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 192*178*45.5mm (L*W*H)
PACKING 1.23Kg; 10pcs/13.3Kg /1.38CUFT

Meanwell ENC-240-48 Features

l  3 years warranty

l  Universal AC input/Full range

l  Built-in active PFC function

l  Fanless design, cooling by free air convection

l  Built-in temperature compensation function

l  Built-in 3 stage programmable charging curve

l  Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)

l  Protection: Short circuit/ Over voltage /Over temperature /Battery under voltage/Battery over voltage/Battery reverse polarity protection

Meanwell ENC-240-48 Price and Specs 240W Programmable Desktop Type Battery Charger External Battery Charger YCICT

Meanwell ENC-240-48 Applications

l  Radio system backup solution

l  Electric scooter charger

l  Surveillance system

Meanwell ENC-240-48 Price and Specs 240W Programmable Desktop Type Battery Charger External Battery Charger PFC YCICT

Meanwell ENC-240-48 Mechanical Diagram

Meanwell ENC-240-48 Price and Specs 240W Programmable Desktop Type Battery Charger External Battery Charger AC/DC YCICT

Meanwell ENC-240-48 Price and Datasheet 240W Programmable Desktop Type Battery Charger External Battery Charger YCICT
