ENC-180-24
75.24
Details

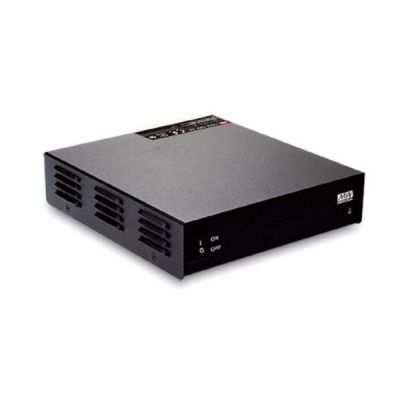

Meanwell ENC-180-24 is single output 180W AC/DC desktop type charger with 28.8V27.6V18-30V6A172.8W25-65AH<1mA. The model is equipped with 3 stage charging curve. Apart from the embedded pre-defined charging curves, the default curve is programmable, and therefore able to accommodate different types of batteries such as lead- acid batteries (gel, flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). With the rugged mechanical design and the high efficiency circuitry, ENC-180-24 could operate for the ambient temperature range -30℃~+70℃ under free air convection. What’s more, the item is provided with various protections like Short circuit, Over voltage, Over temperature, Battery under voltage, Battery over voltage and Battery reverse polarity protection. Thanks to its longevity, good quality, and high reliability, Meanwell ENC-180-24 is very suitable for Radio system backup, Electric scooter charger and Surveillance system.
Meanwell ENC-180-24 Encoding
| ENC | Series Name |
| 180 | Rated Wattage |
| 24 | Nominal Voltage |
Meanwell ENC-180-24 Specifications
| Model | ENC-180-24 | |
| OUTPUT | BOOST CHARGE VOLTAGE (Vboost) (default) | 28.8V |
| FLOAT CHARGE VOLTAGE (Vfloat) (default) | 27.6V | |
| CHARGE VOLTAGE RANGE | 18-30V | |
| OUTPUT CURRENT(CC) (default) | 6A | |
| RATED POWER | 172.8W | |
| RECOMMENDED BATTERY CAPACITY (AMP HOURS) | 25-65AH | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <1mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT | 1.9A/115VAC 0.95A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A at 230VAC | |
| LEAKAGE CURRENT | <3.5mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Protection type : Shut down O/P voltage, re-power on to recover |
| OVER VOLTAGE | 31-36.5V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| REVERSE POLARITY | By internal fuse | |
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | TEMPERATURE COMPENSATION | By NTC |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BSMI CNS13438 | |
| Others | MTBF | 1445.6K hrs min. Telcordia SR-332 (Bellcore) ; 155.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 192*178*45.5mm (L*W*H) | |
| PACKING | 1.15Kg; 10pcs/12.5Kg /1.34CUFT | |
Meanwell ENC-180-24 Features
l 3 years warranty
l Universal AC input/Full range
l Built-in active PFC function
l Fanless design, cooling by free air convection
l Built-in temperature compensation function
l Built-in 3 stage programmable charging curve
l Protection: Short circuit/ Over voltage /Over temperature /Battery under voltage/Battery over voltage/Battery reverse polarity protection
l Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
Meanwell ENC-180-24 Applications
l Radio system backup solution
l Electric scooter charger
l Surveillance system
Meanwell ENC-180-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
