ELP-75-3.3
34.26
Details

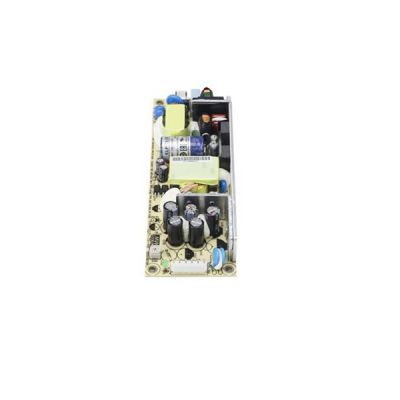

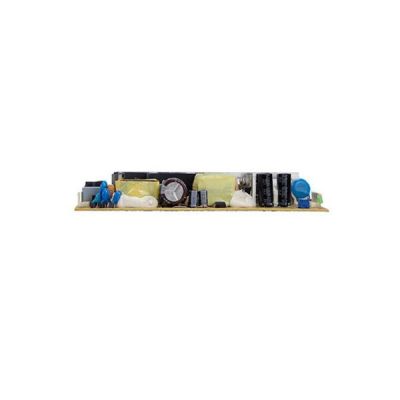

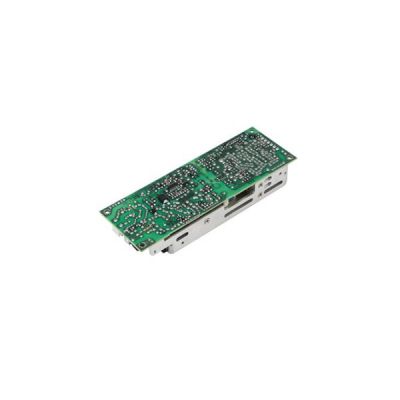

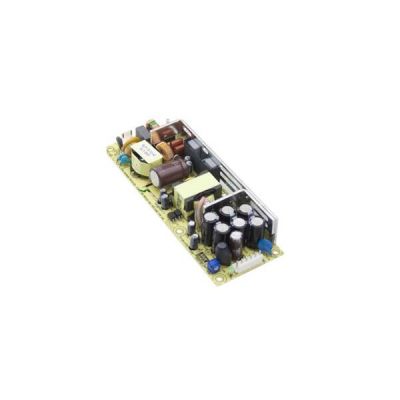

Meanwell ELP-75-3.3 is 75W Single Output with 3.3V15A0-15A49.5W80mVp-p3-3.6V. the unit Features PFC Function in compact size and low profile, and it also offers printed circuit board architecture for direct mounting to the system chassis. Meanwhile, ELP-75-3.3 accepts 90~264VAC input and various output voltages between 3.3V and 48V. With the high working efficiency up to 90% and the extremely low no load power consumption<0.5W. it can be used for ClassⅡ(no FG) system design. Additionally, EPP-75-3.3 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Moreover, the item is equipped with various protection types such as Short circuit, Overload and Over voltage. Thanks to its high efficiency, high reliability and longevity, Meanwell ELP-75-3.3 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell ELP-75-3.3 Specifications
| Model | ELP-75-3.3 | |
| OUTPUT | DC VOLTAGE | 3.3V |
| RATED CURRENT | 15A | |
| CURRENT RANGE | 0-15A | |
| RATED POWER | 49.5W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE ADJ. RANGE | 3-3.6V | |
| VOLTAGE TOL ERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | |
| SETUP, RISE TIME | 2500ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC 20ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 3.3V: PF>0.91/230VAC 5V~48V: PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 80.00% | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1 A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A/230VAC | |
| LEAKAGE CURRENT | <1mA/240VAC | |
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.7-4.45V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 345.3Khrs min MIL-HDBK-217F (25℃) |
| DIMENSION | PCB:175*60*27mm (L*W*H) with optional CASE:195*68 .5* 33mm (L*W*H) | |
| PACKING | PCB:0.25Kg; 48pcs/13Kg/0.96CUFT with optional CASE:0.54Kg; 25pcs/14 5Kg/0.7CUFT | |
Meanwell ELP-75-3.3 Features
l 1U low profile
l LED indicator for power on
l No load power consumption<0.5W
l 3 years warranty
l Universal AC input/ Full range
l Built-in active PFC function, PF>0.95
l High efficiency up to 90%
l Protections: Short circuit /Overload/Over voltage
l Cooling by free air convection
Meanwell ELP-75-3.3 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
