ELGC-300-H
58.84
Details

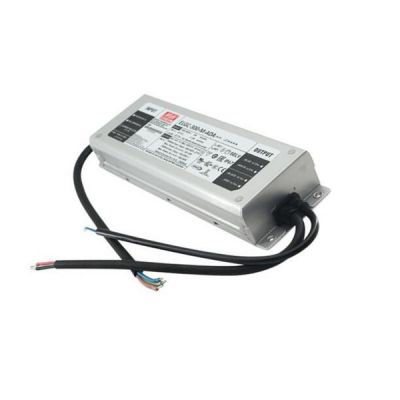

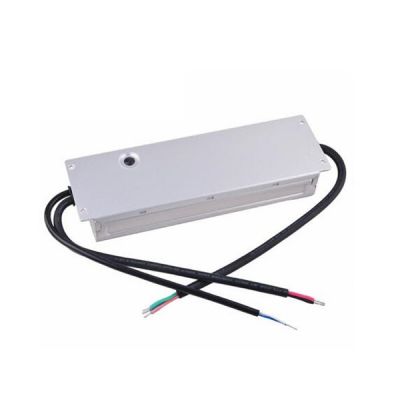

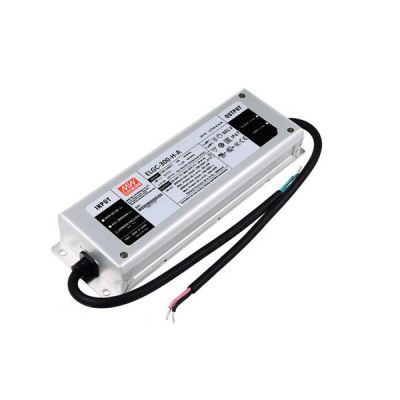

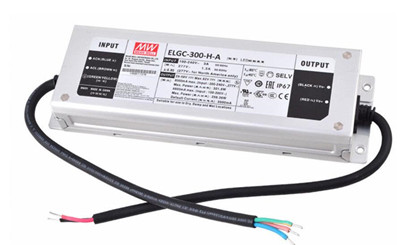

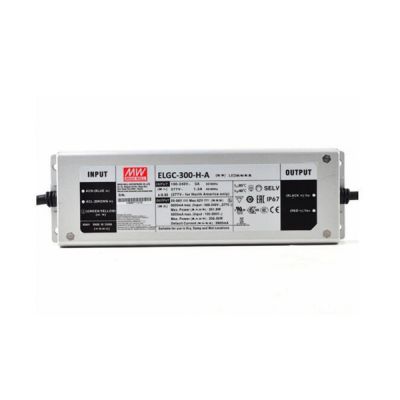

Meanwell ELGC-300-H is a 300W LED AC/DC driver with 5600mA301W256W29-58V5200-8000mA62V2600~8000mA2600~6800Ma. It features the constant power mode and high voltage output, and operates from 100~305VAC with the rated current ranging between 5200mA and 8000mA. With the efficiency reaching high up to 94.5% and the fanless design, Meanwell ELGC-300-H is able to work for -40 ℃~+85 ℃ case temperature under free air convection. Apart from them, the metal housing design and IP67 ingress protection level permit it to suit both indoor and outdoor applications. At the same time, the innovative environment-adaptive capability permits it to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Apart from them, the product is equipped with various function options such as dimming methodologies. In light of its long lifetime, high efficiency and excellent performance, Meanwell ELGC-300-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELGC-300-H Encoding
| ELGC | Series Name |
| 300 | Rated Wattage |
| H | Rated Output Current (L/M/H Types) |
| A | Function Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Blank type available by modification | By request |
| A | IP67 | Output constant power adjustable via built-in lo potentiometer | In stock |
| AB | IP67 | Output constant power adjustable via built-in lo potentiometer + 3 in 1 dimming function (O~10Vdc, 10V PWM signal and resistance) |
In stock |
| ADA | IP67 | DALI-2 control technology with lo Adjustable via built-in Potentiometer | In stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
Meanwell ELGC-300-H Specifications
| Model | ELGC-300-H □ | ||
| Output | DEFAULT CURRENT | 5600mA | |
| RATED POWER | 200VAC ~ 305VAC | 301W | |
| 100VAC ~ 180VAC | 256W | ||
| CONSTANT CURRENT REGION | 29-58V | ||
| FULL POWER CURRENT RANGE | 5200-8000mA | ||
| OPEN CIRCUIT VOLTAGE (max.) | 62V | ||
| CURRENT ADJ. RANGE |
(200 ~ 305VAC) | 2600~8000mA | |
| (100 ~ 180VAC) | 2600~6800mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | ||
| CURRENT TOLERANCE | ±5% | ||
| SET UP TIME | 500ms/230VAC, 500ms/115VAC | ||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142VDC ~ 431VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load | ||
| TOTAL HARMONIC DISTORTION | THD< 10% (at load>=50% at 115VAC/230VAC ,at load>=75% at 277VAC) | ||
| EFFICIENCY (Typ.) | 92.50% | ||
| AC CURRENT | 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=1200 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC | ||
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB / ADA-Type(Dimming OFF) | ||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | ||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER TEMPERATURE | Tcase>85℃±5℃,derate power automatically by 6%/℃ max | ||
| OVER VOLTAGE | 61 ~ 78V | ||
| Shut down output voltage, re-power on to recovery | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| MAX. CASE TEMP. | Tcase=+85℃ | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 EAC TP TC 004;GB19510.1,GB19510.14; IP67;KC61347-1,KC61347-2-13 approved |
|
| DALI STANDARDS | Compliance to IEC62386-101,102,207 for ADA Type only | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3;KN15 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV Line-Line 4KV);KN61547 |
||
| Others | MTBF | 1637.5K hrs min. Telcordia SR-332 (Bellcore) ;170.1K hrs min. MIL-HDBK-217F (25℃) | |
| LIFETIME | 50000 hrs min. | ||
| DIMENSION | 246*77*39.5mm (L*W*H) | ||
| PACKING | 1.45Kg;9pcs/14Kg/0.76CUFT | ||
Meanwell ELGC-300-H Features
l Surge protection with 6KV/4KV
l Full power at 65~ 100% operation (Constant Power)
l Protection Functions: OCP, SCP, OVP, OTP
l IP67 design for indoor or outdoor installations
l Typical lifetime> 50000 hours and 5 years warranty
l Latest safety requirements of IEC61347/GB19510 and UL8750
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; DALI-2 dimming
Meanwell ELGC-300-H Applications
l LED bay lighting
l LED stage lighting
l LED flood lighting
l LED fishing lighting
l LED horticulture lighting
l Stadium lighting
l Type "HL" for use in class I , Division 2
Meanwell ELGC-300-H Mechanical Diagram
