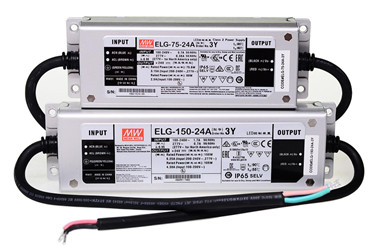

Meanwell ELG-75 Series is a 75W AC/DC LED driver highlighting the dual mode constant voltage and constant current output. The entire series operates from 100~ 305V AC and offers the models with different rated voltages ranging between 12V and 48V. Due to the high efficiency reaching up to 90%, and the fanless design, ELG-75 is able to work for -40℃~+85℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allows the series to meet both indoor and outdoor applications. At the same time, it is equipped with various function options such as dimming methodologies. Considering its high reliability, high efficiency and excellent quality, Meanwell ELG-75 Series is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell ELG-75 Series Encoding
| ELG | Series Name |
| 75 | Rated Wattage |
| 24 | Rated Output Voltage ( 12/24/36/42/48V) |
| A | Function Mode Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo and Vo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-75 Series Model Specifications
| Model | ELG-75-12 □ | ELG-75-24 □ | ELG-75-36 □ | ELG-75-42 □ | ELG-75-48 □ | |
| Output | DC VOLTAGE | 12V | 24V | 36V | 42V | 48V |
| CONSTANT CURRENT REGION | 6-12V | 12-24V | 18-36V | 21-42V | 24-48V | |
| RATED CURRENT | 5A | 3.15A | 2.1A | 1.8A | 1.6A | |
| RATED POWER | 200VAC ~ 305VAC | |||||
| 60W | 75.6W | 75.6W | 75.6W | 76.8W | ||
| 100VAC ~ 180VAC | ||||||
| 48W | 60W | 60W | 60W | 60W | ||
| RIPPLE & NOISE (max.) | 150 mVp-p | 200 mVp-p | 250 mVp-p | 250 mVp-p | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 10.8-13.2V | 21.6-26.4V | 32.4-39.6V | 37.8-46.2V | 43.2-52.8V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 2.5-5A | 1.57-3.15A | 1.05-2.1A | 0.9-1.8A | 0.8-1.6A | ||
| VOLTAGE TOLERANCE | ±3.0% | ±3.0% | ±2.5% | ±2.5% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 100ms/115VAC, 230VAC | |||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC(at full load) | |||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=50%/115VC,230VAC; at load>=75%/277VAC) | |||||
| EFFICIENCY (Typ.) | 86.00% | 88.00% | 89.00% | 90.00% | 90.00% | |
| AC CURRENT | 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |||||
| OVER VOLTAGE | 14-18V | 28-34V | 41-48V | 47-54V | 54-62V | |
| Shut down output voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | 'Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1,KC61347-2-13 approved | ||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=50%) ; BS EN/EN61000-3-3; GB17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547 | |||||
| Others | MTBF | 3451.7K hrs min. Telcordia SR-332 (Bellcore) ;331.3K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 180*63*35.5mm (L*W*H) | |||||
| PACKING | 0.8Kg;16pcs/13.4Kg/0.67CUFT | |||||
Meanwell ELG-75 Series Features
l Constant Voltage + Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l Class 2 power unit
l No load/Standby power consumption <0.5W
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3in 1 dimming (dim-to-off); Smart timer dimming; DALI
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell ELG-75 Series Applications
l LED street lighting
l LED architectural lighting
l LED bay lighting
l LED floodlighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location

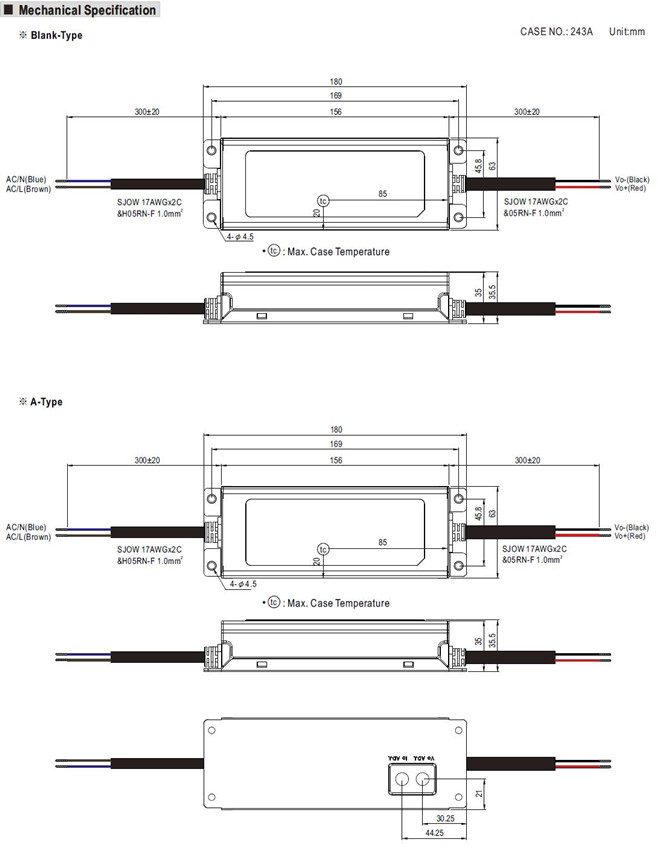

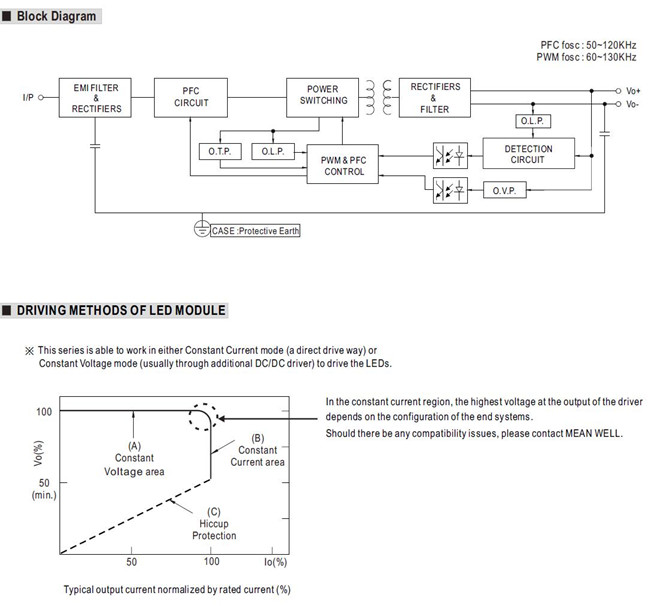

Meanwell ELG-75 Series Mechanical Diagram
