ELG-75-C1400
26.73
Details

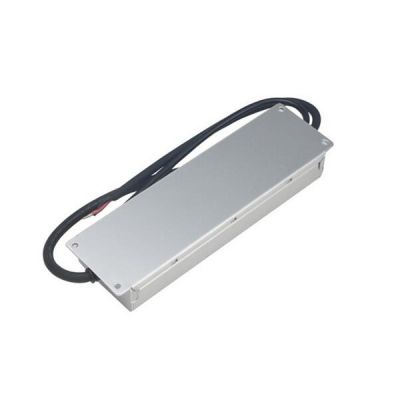

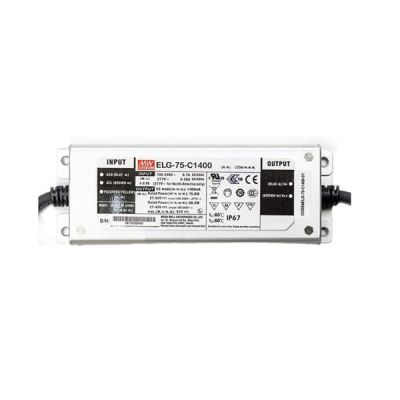

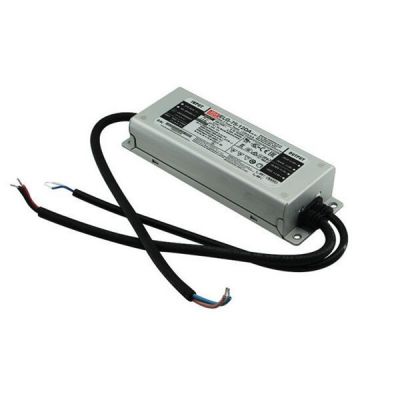

Meanwell ELG-75-C1400 is a 75W LED AC/DC driver with 1400mA200VAC~305VAC75.6W100VAC~180VAC60.2W27-54V61V700-1400mA. The model provides the constant current mode and high voltage output, and also could operate from 100~305VAC. At the same time, it gives the model with rated current 14000mA. Since the efficiency reaches high up to 91%, ELG-75-C1400 is able to work for -40℃~+85℃ case temperature under free air convection with no fan. What’s more, the metal housing design and IP67/IP65 ingress protection level make it possible to satisfy both indoor and outdoor applications. Apart from them, the unit is provided with various function options, such as dimming methodologies. Due to its long lifetime, high efficiency and excellent reliability, Meanwell ELG-75-C1400 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-75-C1400 Encoding
| ELG | Series Name |
| 75 | Rated Wattage |
| C1400 | Rated Output Current ( 350/500/700/1050/1400mA)) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-75-C1400 Specifications
| Model | ELG-75-C1400 □ | |
| Output | RATED CURRENT | 1400mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 75.6W | ||
| 100VAC ~ 180VAC | ||
| 60.2W | ||
| CONSTANT CURRENT REGION | 27-54V | |
| OPEN CIRCUIT VOLTAGE (max) | 61V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 700-1400mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/115VAC,230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA -Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 64-79V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB19510.1, GB19510.14;KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17743 GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547 |
|
| Others | MTBF | 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 180*63*35.5 mm (L*W*H) | |
| PACKING | 0.8Kg;16pcs/13.4Kg/0.67CUFT | |
Meanwell ELG-75-C1400 Features
l 5 years warranty
l Built-in active P FC function
l Typical lifetime> 50000 hours
l Constant Current mode output
l No load/Standby power consumption <0.5W
l Metal housing design with functional Ground
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-75-C1400 Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2hazardous (Classified) location
Meanwell ELG-75-C1400 Mechanical Diagram
