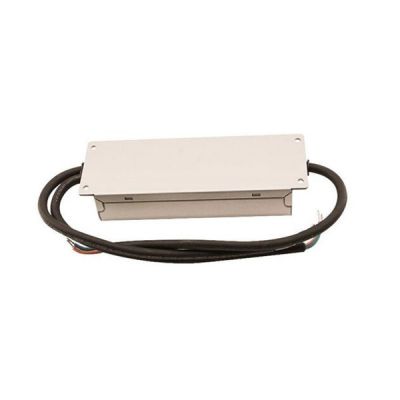

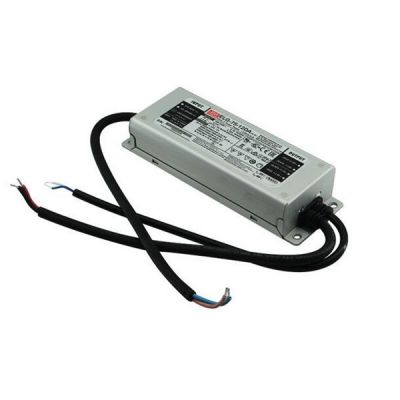

ELG-75-C1050
26.04
Details
Meanwell ELG-75-C1050 is a 75W LED AC/DC driver with 1050mA200VAC~305VAC74.55W100VAC~180VAC59.85W35-71V78V525-1050mA. The product offers the constant current mode and high voltage output, and could operate from 100~305VAC. it gives the model with rated current 1050mA. Since the high efficiency reaches up to 91% and the fanless design, ELG-75-C1050 is able to work for -40℃~+85℃ case temperature under free air convection. Moreover, The metal housing design and IP67/IP65 ingress protection level make it possible to fit both indoor and outdoor applications. Additionally, the item is supplied with various function options, such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent reliability, Meanwell ELG-75-C1050 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-75-C1050 Encoding
| ELG | Series Name |
| 75 | Rated Wattage |
| C1050 | Rated Output Current ( 350/500/700/1050/1400mA)) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-75-C1050 Specifications
| Model | ELG-75-C1050 □ | |
| Output | RATED CURRENT | 1050mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 74.55W | ||
| 100VAC ~ 180VAC | ||
| 59.85W | ||
| CONSTANT CURRENT REGION | 35-71V | |
| OPEN CIRCUIT VOLTAGE (max) | 78V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 525-1050mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/115VAC,230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA -Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 80-100V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB19510.1, GB19510.14;KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17743 GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547 |
|
| Others | MTBF | 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 180*63*35.5 mm (L*W*H) | |
| PACKING | 0.8Kg;16pcs/13.4Kg/0.67CUFT | |
Meanwell ELG-75-C1050 Features
l 5 years warranty
l Constant Current mode output
l Built-in active P FC function
l Typical lifetime> 50000 hours
l No load/Standby power consumption <0.5W
l Metal housing design with functional Ground
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-75-C1050 Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2hazardous (Classified) location
Meanwell ELG-75-C1050 Mechanical Diagram
