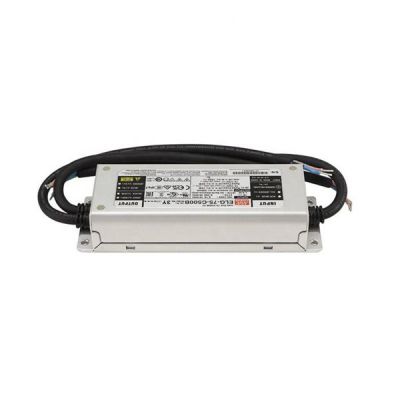

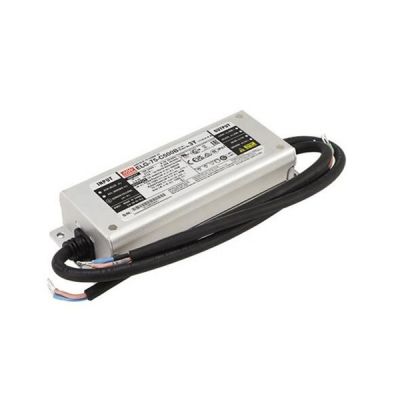

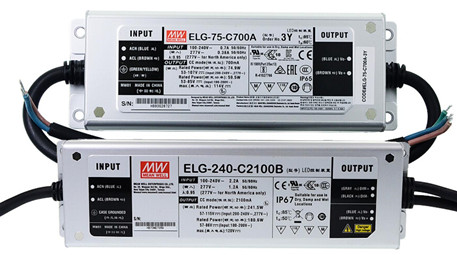

Meanwell ELG-75-C Series is a 75W LED AC/DC driver. The entire series features the constant current mode and high voltage output. At the same time, it is able to operate from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency reaching up to 91% and the fanless design, ELG-75-C could work for -40℃~+85℃ case temperature under free air convection. Apart from them, The metal housing design and IP67/IP65 ingress protection level allows them to fit both indoor and outdoor applications. Additionally, the series is equipped with various function options, such as dimming methodologies. Considering its long life, high efficiency and excellent reliability, Meanwell ELG-75-C Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-75-C Series Encoding
| ELG | Series Name |
| 75 | Rated Wattage |
| C500 | Rated Output Current ( 350/500/700/1050/1400mA)) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-75-C Series Model Specifications
| Model | ELG-75-C350 □ | ELG-75-C500 □ | ELG-75-C700 □ | ELG-75-C1050 □ | ELG-75-C1400 □ | |
| Output | RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | 1400mA |
| RATED POWER | 200VAC ~ 305VAC | |||||
| 74.9W | 75W | 74.9W | 74.55W | 75.6W | ||
| 100VAC ~ 180VAC | ||||||
| 59.85W | 60W | 59.5W | 59.85W | 60.2W | ||
| CONSTANT CURRENT REGION | 107-214V | 75-150V | 53-107V | 35-71V | 27-54V | |
| OPEN CIRCUIT VOLTAGE (max) | 224V | 158V | 114V | 78V | 61V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 175-350mA | 250-500mA | 350-700mA | 525-1050mA | 700-1400mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |||||
| CURRENT TOLERANCE | ±5.0% | |||||
| SET UP TIME | 500ms/115VAC,230VAC | |||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |||||
| EFFICIENCY (Typ.) | 91.00% | 91.00% | 91.00% | 90.00% | 90.00% | |
| AC CURRENT | 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA -Type |
|||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
| OVER VOLTAGE | 225-260V | 160-190V | 115-140V | 80-100V | 64-79V | |
| Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB19510.1, GB19510.14;KC61347-1,KC61347-2-13 approved |
||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17743 GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
|||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547 |
|||||
| Others | MTBF | 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 180*63*35.5 mm (L*W*H) | |||||
| PACKING | 0.8Kg;16pcs/13.4Kg/0.67CUFT | |||||
Meanwell ELG-75-C Series Features
l Constant Current mode output
l Metal housing design with functional Ground
l Built-in active P FC function
l No load/Standby power consumption <0.5W
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell ELG-75-C Series Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2hazardous (Classified) location

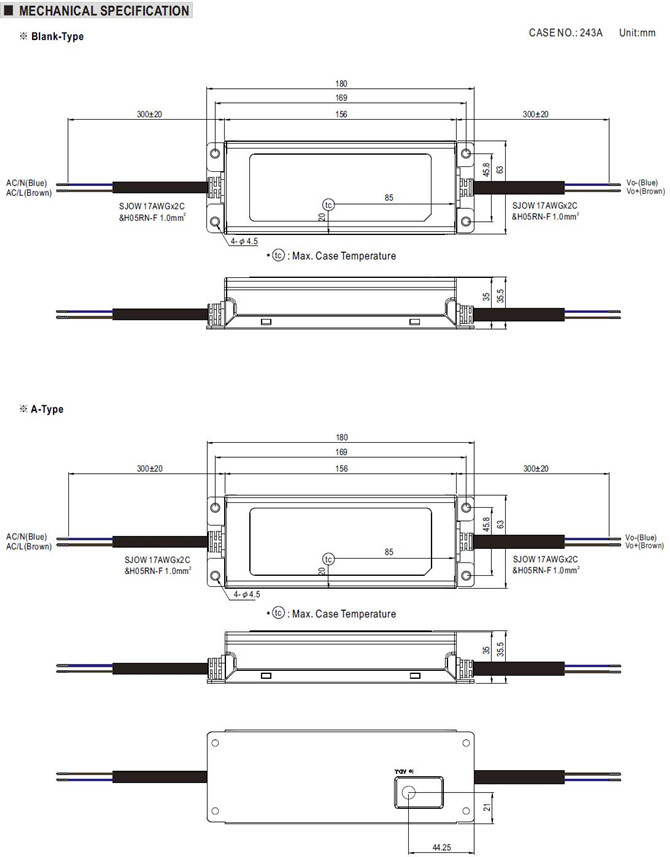

Meanwell ELG-75-C Series Mechanical Diagram
