ELG-300-24A
40.86
Details

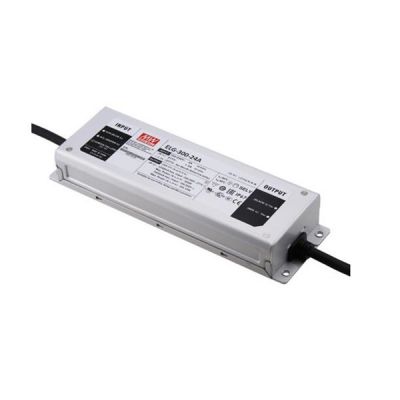

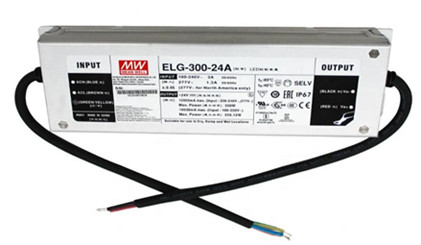

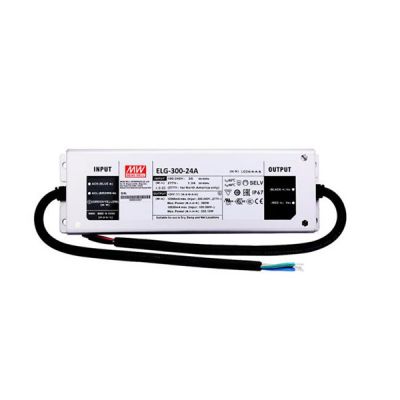

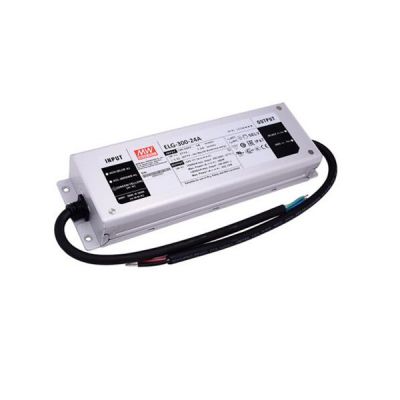

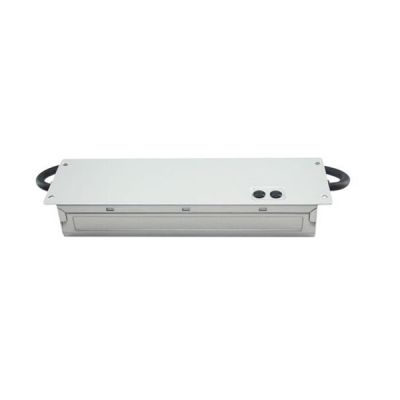

Meanwell ELG-300-24A is a 300W LED driver with 24V14.4-24V12.5A10.63A300W255W240 mVp-p22.4-25.6V6.25-12.5A. The unit highlights the constant current and Constant voltage mode design, and could operate from 100~305VAC and provides CV mode or CC mode applications. As the efficiency reaches high up to 94% and the fanless design, the ambient temperature is able to work for -40 ℃~+ 85 ℃case temperature under free air convection. In addition, the metal housing design and IP67 ingress protection level allows to meet with both indoor and outdoor applications. What’s more, the innovative environment-adaptive capability permits to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Thanks to its high efficiency, high reliability and longevity, Meanwell ELG-300-24A serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-300-24A Encoding
| ELG | Series Name |
| 300 | Rated Wattage |
| 24 | Rated Output Voltage (12/24) |
| *** | Function Mode Option |
| Type IP Level | Function |
| A IP65 | lo and Vo adjustable through built-in potentiometer. |
Meanwell ELG-300-24A Specifications
| Model | ELG-300-24A □ | ||
| Output | DC VOLTAGE | 24V | |
| CONSTANT CURRENT REGION | 14.4-24V | ||
| RATED CURRENT | 200VAC ~ 305VAC | 12.5A | |
| 100VAC ~ 180VAC | 10.63A | ||
| RATED POWER | 200VAC ~ 305VAC | 300W | |
| 100VAC ~ 180VAC | 255W | ||
| RIPPLE & NOISE (max.) | 240 mVp-p | ||
| VOLTAGE ADJ. RANGE | 22.4-25.6V | ||
| CURRENT ADJ. RANGE | 6.25-12.5A | ||
| VOLTAGE TOLERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGULATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 100ms/230VAC, 500ms, 100ms/115VAC | ||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | ||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>=0.95/115VAC, PF>=0.93/230VAC, PF>=0.90/277VAC at full load | ||
| TOTAL HARMONIC DISTORTION | THD< 10%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | ||
| EFFICIENCY (Typ.) | 94.00% | ||
| AC CURRENT | 3A / 115VAC 1.6A / 230VAC 1.3A/277VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | ||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |
| Constant current limiting, recovers automatically after fault condition is removed | |||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||
| OVER VOLTAGE | 27 ~ 34V | ||
| Shut down output voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| MAX. CASE TEMP. | Tcase=+85℃ | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”)(Except for 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004; GB19510.1,GB19510.14; KC61347-1,KC61347-2-13; IS15885(Part2/Sec13),IP67 approved |
|
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN6Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ( at load>=50%) ; | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),KN61547 |
||
| Others | MTBF | 1827.7K hrs min. Telcordia SR-332 (Bellcore) ; 196.5Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 246*77*39.5mm (L*W*H) | ||
| PACKING | 1.45 Kg; 9pcs /13.5Kg / 0.76CUFT | ||
Meanwell ELG-300-24A Features
l Typical lifetime> 50000 hours
l 5 years warranty
l Output adjustable via potentiometer
l Constant Voltage + Constant Current mode output
l Protection Functions: OCP, SCP, OVP, OTP
l IP67 rating for indoor or outdoor installations
Meanwell ELG-300-24A Applications
l LED bay lighting
l LED stage lighting
l LED flood lighting
l LED strip lighting
l DMX control system
Meanwell ELG-300-24A Mechanical Diagram
