ELG-240-C2100
38.93
Details

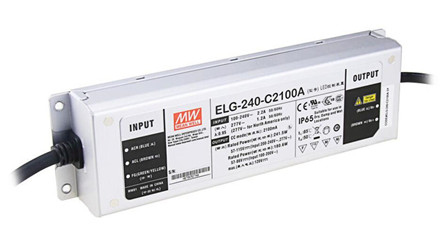

Meanwell ELG-240-C2100 is a 240W LED AC/DC driver with 2100mA200VAC~305VAC241.5W100VAC~180VAC170.6W180.6W120V1050-2100mA. The model offers constant current mode and high voltage output. At the same time, it could operate from 100~ 305VAC with the rated current 2100mA. Since the efficiency reaches high up to 93%, ELG-240-C2100 is able to work for -40℃ + 85℃ case temperature with free air convection and fanless design. Additionally, the metal housing and IP67/IP65 ingress protection level make it possible to meet both indoor and outdoor applications. Furthermore, the unit is equipped with various function options such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent performance, Meanwell ELG-240-C2100 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-240-C2100 Encoding
| ELG | Series Name |
| 240 | Rated Wattage |
| C2100 | Rated Output Current (700/1050/1400/1750/2100mA) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-240-C2100 Specifications
| Model | ELG-240-C2100 □ | |
| Output | RATED CURRENT | 2100mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 241.5W | ||
| 100VAC ~ 180VAC | ||
| 170.6W | ||
| CONSTANT CURRENT REGION | 180.6W | |
| OPEN CIRCUIT VOLTAGE | 120V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 1050-2100mA | ||
| CURRENT RIPPLE | 5.0% max. At rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 800ms/115VAC, 500ms/230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 128-156V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17625.1, GB17743; EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547 |
|
| Others | MTBF | 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244*71*37.5 mm (L*W*H) | |
| PACKING | 1.22Kg; 12pcs /15.2kg / 0.72CUFT | |
Meanwell ELG-240-C2100 Features
l Constant Current mode output
l Typical life time>50000 hours
l 5 years warranty
l Metal housing design with functional Ground
l Built-in active PFC function
l No load/Standby power consumption<0. 5W
l IP67/IP65 rating for indoor or outdoor installations. Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-240-C2100 Features
l L ED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell ELG-240-C2100 Mechanical Diagram
