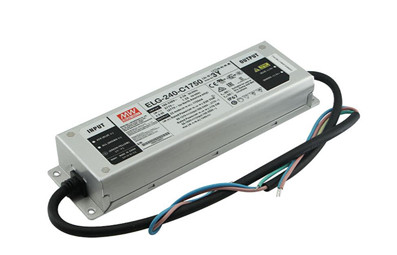

ELG-240-C1750
38.86
Details
Meanwell ELG-240-C1750 is a 240W LED AC/DC driver with 1750mA200VAC~305VAC239.75W100VAC~180VAC178.5W178.5W144V875~1750mA. The product outstands with the constant current mode and high voltage output. Moreover, it is able to work from 100~ 305VAC with the rated current 17500mA. As the efficiency goes high up to 93%, ELG-240-C1750 could work for -40℃ + 85℃ case temperature with free air convection and fanless design. In addition, the metal housing and IP67/IP65 ingress protection level allow to meet both indoor and outdoor applications. what’s more, the model is equipped with various function options such as dimming methodologies. In view of its long lifetime, high efficiency and excellent performance, Meanwell ELG-240-C1750 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-240-C1750 Encoding
| ELG | Series Name |
| 240 | Rated Wattage |
| C1750 | Rated Output Current (700/1050/1400/1750/2100mA) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-240-C1750 Specifications
| Model | ELG-240-C1750 □ | |
| Output | RATED CURRENT | 1750mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 239.75W | ||
| 100VAC ~ 180VAC | ||
| 178.5W | ||
| CONSTANT CURRENT REGION | 178.5W | |
| OPEN CIRCUIT VOLTAGE | 144V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 875 ~ 1750mA | ||
| CURRENT RIPPLE | 5.0% max. At rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 800ms/115VAC, 500ms/230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=450μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 153-175V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1;BIS IS15885(for 700A/1050A only);IP65 or IP67; KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17625.1, GB17743; EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547 |
|
| Others | MTBF | 2730.9K hrs min. Telcordia SR-332 (Bellcore) ; 235K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244*71*37.5 mm (L*W*H) | |
| PACKING | 1.22Kg; 12pcs /15.2kg / 0.72CUFT | |
Meanwell ELG-240-C1750 Features
l Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l Typical life time>50000 hours
l 5 years warranty
l No load/Standby power consumption<0. 5W
l IP67/IP65 rating for indoor or outdoor installations. Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-240-C1750 Features
l L ED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell ELG-240-C1750 Mechanical Diagram
