ELG-240-42
30.61
Details

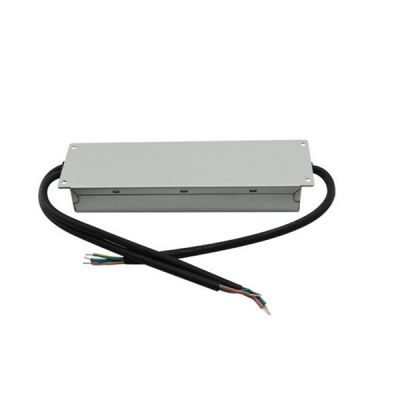

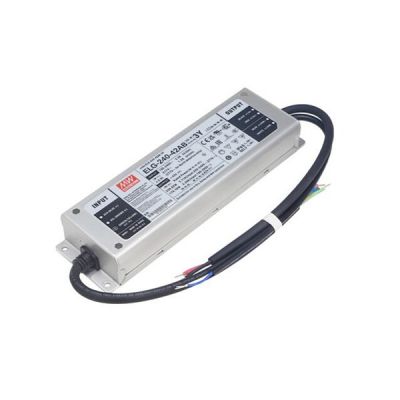

Meanwell ELG-240-42 is a 240W AC/DC LED driver with 42V21-42V5.71A239.82W179.76W250 mVp-p39-45V2.86-5.71A. It features the dual mode constant voltage and constant current output, and could operate from 100~ 305VAC. The item is supplied with the rated voltage 42V. Since the high efficiency reaches up to 93% and the fanless design, ELG-240-42 is able to work for-40 ℃~ +90 ℃case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow it to meet with both indoor and outdoor applications. Apart from them, the model is equipped with various function options, such as dimming methodologies. In light of its longevity, high efficiency and excellent quality, Meanwell ELG-240-42 is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell ELG-240-42 Encoding
| ELG | Series Name |
| 240 | Rated Wattage |
| 42 | Rated Output Voltage (12/24/36/42/48V/54V) |
| A | Function Mode Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo and Vo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-240-42 Specifications
| Model | ELG-240-42 □ | |
| Output | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 21-42V | |
| RATED CURRENT | 5.71A | |
| RATED POWER | 200VAC ~ 305VAC | |
| 239.82W | ||
| 100VAC ~ 180VAC | ||
| 179.76W | ||
| RIPPLE & NOISE (max.) | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 39-45V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 2.86-5.71A | ||
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC | |
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/115VC,230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT | 2.2A / 115VAC 1.5A / 230VAC 1.2A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D-Type Standby power consumption <0.5W for B / AB / DA-Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| OVER VOLTAGE | 47-54V | |
| Shut down output voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| STORAGE TEMP., HUMIDITY | -40 ~ +90℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42B/48/48A/48B/54/54A/54ADA/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (a t load>=50%) ; BS EN/EN61000-3-3; GB17625.1,GB17743;EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 02; KC KN15,KN61547 |
|
| Others | MTBF | 2391.4K hrs min. Telcordia SR-332 (Bellcore) ; 190.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244*71*37.5mm (L*W*H) | |
| PACKING | 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT | |
Meanwell ELG-240-42 Features
l 5 years warranty
l Built-in active PFC function
l Typical lifetime> 50000 hours
l No load/Standby power consumption <0.5W
l IP67 / IP65 rating for indoor or outdoor installations
l Constant Voltage + Constant Current mode output
l Metal housing design with functional Ground
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-240-42 Applications
l LED bay lighting
l LED floodlighting
l LED street lighting
l LED architectural lighting
l Type HL" for use in Class I, Division 2hazardous (Classified) location
Meanwell ELG-240-42 Mechanical Diagram
