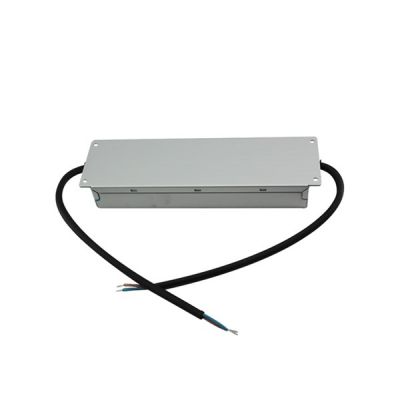

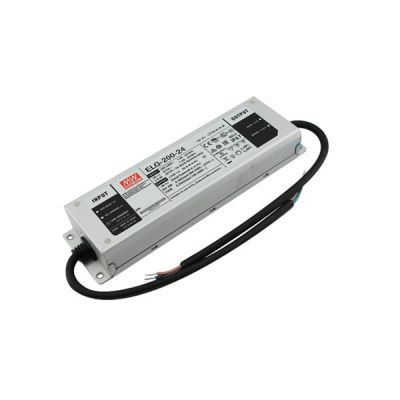

Meanwell ELG-200 Series is a 200W AC/DC LED driver. The entire series features the dual mode constant voltage and constant current output. At the same time, it operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency reaching up to 93% and the fanless design, ELG-200 is able to operate for -40 ℃~ +90 ℃ case temperature under free air convection. The metal housing design and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Apart from them, ELG-200 is equipped with various function options, such as dimming methodologies. Considering its long life, high efficiency and excellent quality, Meanwell ELG-200 Series is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell ELG-200 Series Encoding
| ELG | Series Name |
| 200 | Rated Wattage |
| 54 | Rated Output Voltage (12/24/36/42/48V/54V) |
| A | Function Mode Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo and Vo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-200 Series Model Specifications
| Model | ELG-200-12 □ | ELG-200-24 □ | ELG-200-36 □ | ELG-200-42 □ | ELG-200-48 □ | ELG-200-54 □ | |
| Output | DC VOLTAGE | 12V | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 6-12V | 12-24V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 16A | 8.4A | 5.55A | 4.76A | 4.16A | 3.72A | |
| RATED POWER | 200VAC ~ 305VAC | ||||||
| 192W | 201.6W | 199.8W | 199.9W | 199.68W | 200.88W | ||
| 100VAC ~ 180VAC | |||||||
| 144W | 150W | 149.76W | 149.94W | 149.76W | 150.12W | ||
| RIPPLE & NOISE (max.) | 150 mVp-p | 200 mVp-p | 250 mVp-p | 250 mVp-p | 250 mVp-p | 350 mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 11.2-12.8V | 22.4-25.6V | 33.5-38.5V | 39-45V | 44.8-51.2V | 50-57V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 8-16A | 4.2-8.4A | 2.78-5.55A | 2.38-4.76A | 2.08-4.16A | 1.86-3.72A | ||
| VOLTAGE TOLERANCE | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC | ||||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | ||||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC atfull load | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC) | ||||||
| EFFICIENCY (Typ.) | 90.00% | 92.00% | 92.00% | 92.50% | 93.00% | 93.00% | |
| AC CURRENT | 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC | ||||||
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D-Type Standby power consumption <0.5W for B / AB / DA-Type |
||||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | ||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||||||
| OVER VOLTAGE | 13.5-18V | 27-34V | 42-49V | 47-54V | 54-63V | 60-67V | |
| Shut down output voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +90℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved |
|||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ;BS EN/ EN61000-3-3;GB17625.1,GB17743; EAC TP TC 020; KC KN15,KN61547 |
||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547 |
||||||
| Others | MTBF | 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 244*71*37.5mm (L*W*H) | ||||||
| PACKING | 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT | ||||||
Meanwell ELG-200 Series Features
l Constant Voltage + Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l No load/Standby power consumption<0.5W
l IP67/IP65 rating for indoor or outdoor installations
l F unction options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
l Typical lifetime>50000 hours
l 5 years warranty
Meanwell ELG-200 Series Applications
l LED bay lighting
l LED floodlighting
l LED street lighting
l LED architectural lighting
l Type HL" for use in Class I, Division 2hazardous (Classified) location

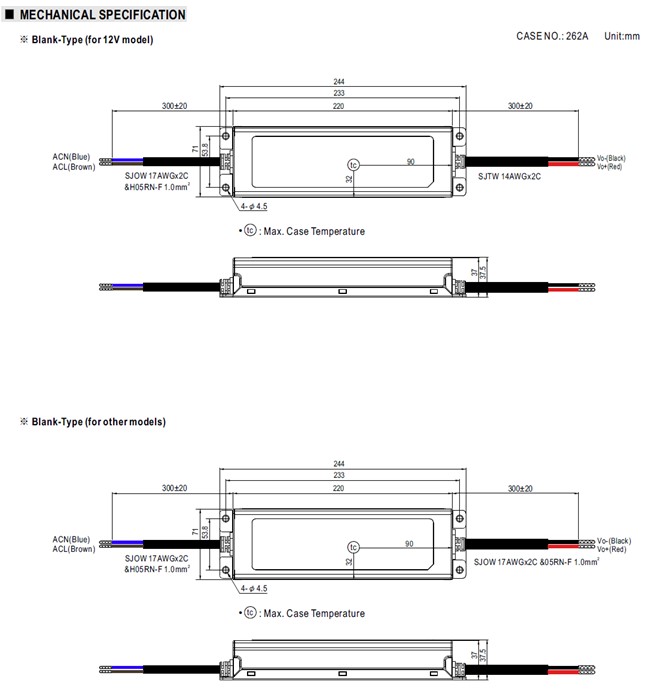

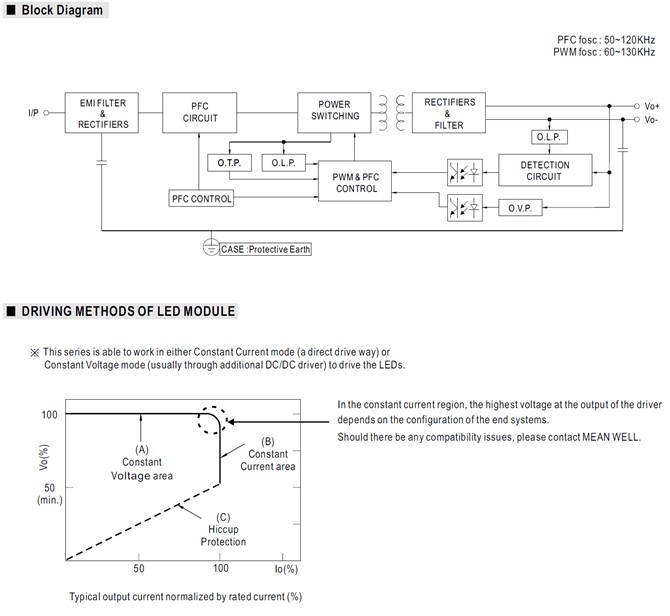

Meanwell ELG-200 Series Mechanical Diagram
