ELG-200-C700
34.02
Details

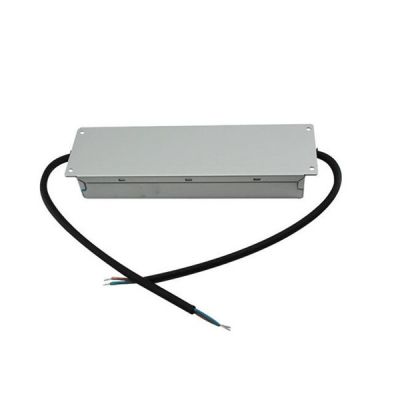

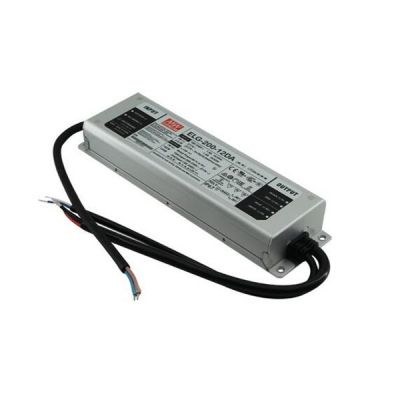

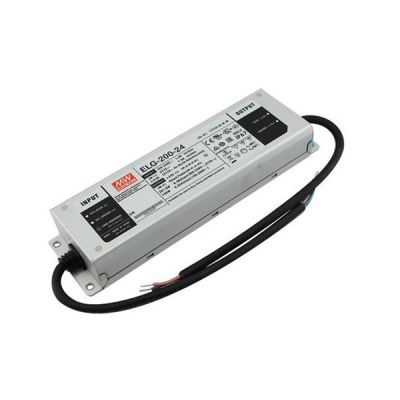

Meanwell ELG-200-C700 is a 200W LED AC/DC driver with 700mA200VAC~305VAC200.2W100VAC~180VAC150.5W142-286V300V350-700mA. The product features the constant current mode and high voltage output. At the same time, it is able to operate from 100~305VAC and offered with the rated current 700mA. With the efficiency reaching high up to 93%, ELG-200-C700 could work for -40℃~+85℃ case temperature under free air convection and no fan. Additionally, the design of metal housing and IP67/IP65 ingress protection level allows it to fit both indoor and outdoor applications. What’s more, the item is equipped with various function options, such as dimming methodologies. Due to its long lifetime, high efficiency and excellent performance, Meanwell ELG-200-C700 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-200-C700 Encoding
| ELG | Series Name |
| 200 | Rated Wattage |
| C700 | Rated Output Current (700/1050/1400/1750/2100mA) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-200-C700 Specifications
| Model | ELG-200-C700 □ | |
| Output | RATED CURRENT | 700mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 200.2W | ||
| 100VAC ~ 180VAC | ||
| 150.5W | ||
| CONSTANT CURRENT REGION | 142-286V | |
| OPEN CIRCUIT VOLTAGE | 300V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 350-700mA | ||
| CURRENT RIPPLE | 5.0% max. At rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 800ms/115VAC, 500ms/230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 315-370V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type on | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3; GB17625.1, GB17743;EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV,Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547 | |
| Others | MTBF | 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244*71*37.5 mm (L*W*H) | |
| PACKING | 1.22Kg; 12pcs /15.2kg / 0.72CUFT | |
Meanwell ELG-200-C700 Features
l Typical lifetime> 50000 hours
l 5 years warranty
l Constant Current mode output
l Metal housing design with functional Ground
l Built-in active P FC function
l No load/Standby power consumption <0. 5W
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via pote ntiometer;3in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-200-C700 Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED flood lighting
l LED greenhouse lighting
l Type “HL” for use in Class l, Division 2 hazardous (Classified) location
Meanwell ELG-200-C700 Mechanical Diagram
