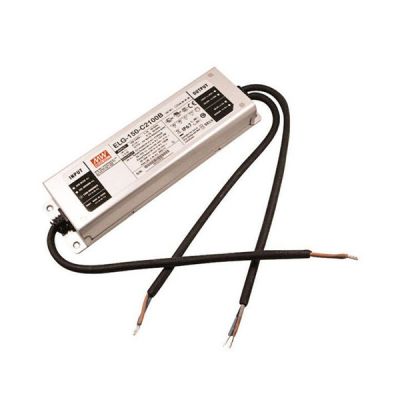

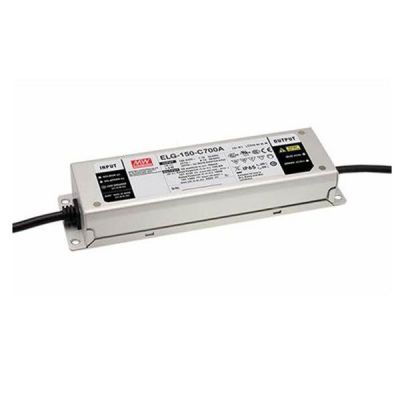

ELG-150-C
26.13
Details
Meanwell ELG-150-C Series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. The entire series operates from 100~360VAC and offered with different rated current ranging between 500mA and 2100mA. Since the efficiency reaches high up to 92%, with the no fan design, ELG-150-C is able to work for -40℃~+85℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP 65 ingress protection level allows them to fit both indoor and outdoor applications. Apart from them, ELG-1 50-C is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent performance, Meanwell ELG-150-C Series as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-150-C Series Encoding
| ELG | Series Name |
| 150 | Rated Wattage |
| C700 | Rated Output Current (500/700/1050/1400/1750/2100mA) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
| BE | IP67 | 3 in 1 dimming function and Auxiliary DC output | In stock |
Meanwell ELG-150-C Series Model Specifications
| Model | ELG-150-C500 □ | ELG-150-C700 □ | ELG-150-C1050 □ | ELG-150-C1400 □ | ELG-150-C1750 □ | ELG-150-C2100 □ | ||
| Output | RATED CURRENT | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | |
| RATED POWER | 100VAC ~ 180VAC | |||||||
| For all types | 105W | 105W | 105W | 105W | 105W | 105W | ||
| 200VAC ~ 305VAC | ||||||||
| (Except for BE Type) | 150W | 149.8W | 150.15W | 149.8W | 150.5W | 151.2W | ||
| (For BE Type only) | 135W | 134.4W | 134.4W | 133W | 133W | 134.4W | ||
| CONSTANT CURRENT REGION | 150-300V | 107-214V | 72-143V | 54-107V | 43-86V | 36-64V | ||
| CONSTANT CURRENT REGION for BE type only | 150-270V | 107-192V | 72-128V | 54-95V | 43-76V | 36-64V | ||
| OPEN CIRCUIT VOLTAGE | 315V | 225V | 151V | 115V | 94V | 80V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||
| 250~500mA | 350~700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | |||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||
| CURRENT TOLERANCE | ±5.0% | |||||||
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V) at 0.3A for BE-Type only | |||||||
| SET UP TIME | 600ms/115VAC 500ms/230VAC | |||||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC) | |||||||
| EFFICIENCY (Typ.) | 92.00% | 92.00% | 92.00% | 91.00% | 91.00% | 91.00% | ||
| EFFICIENCY (Typ.)(for BE Type only) | 90.00% | 90.00% | 90.00% | 89.00% | 89.00% | 89.00% | ||
| AC CURRENT (Typ.) | 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC | |||||||
| INRUSH CURRENT (Typ. ) | COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|||||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||
| OVER VOLTAGE | 320-360V | 230-265V | 155-180V | 128-150V | 96-106V | 82-92V | ||
| Shut down o/p voltage, re-power on to recover | ||||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 700A,1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved |
||||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3; GB17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
|||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547 |
|||||||
| Others | MTBF | 3102.4K hrs min. Telcordia SR-332 (Bellcore) ;308.5K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 219*63*35.5 mm (L*W*H) | |||||||
| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | |||||||
Meanwell ELG-150-C Series Features
l Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l No load/Standby power consumption <0.5W
l lP67/IP65 rating for indoor or outdoor installations· Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;Auxiliary DC output
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell ELG-150-C Series Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2 hazardous (Classified) location

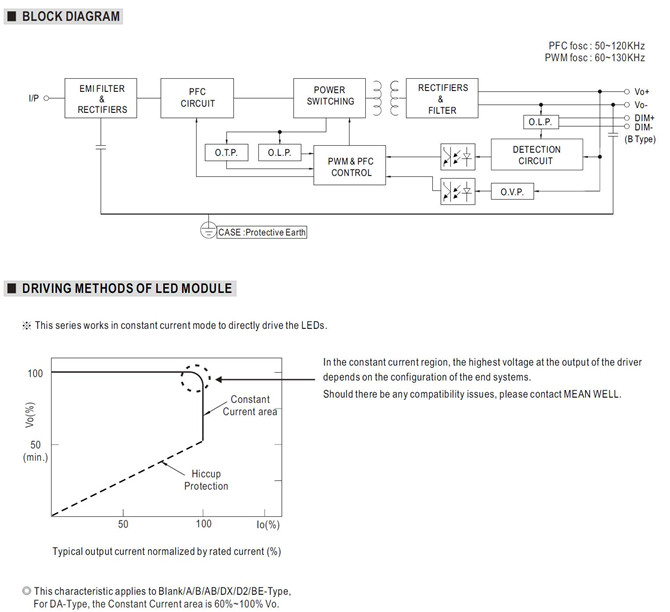

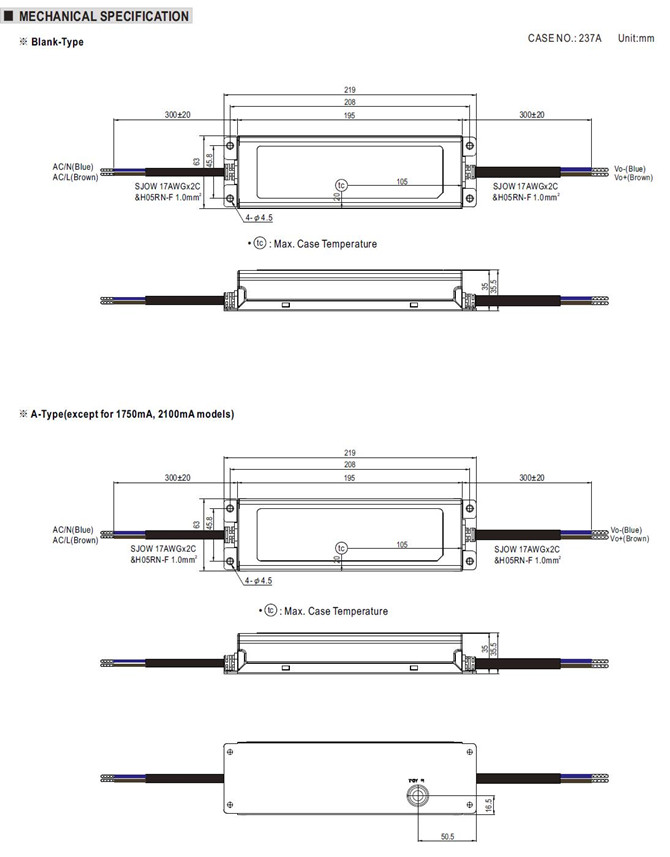

Meanwell ELG-150-C Series Mechanical Diagram
