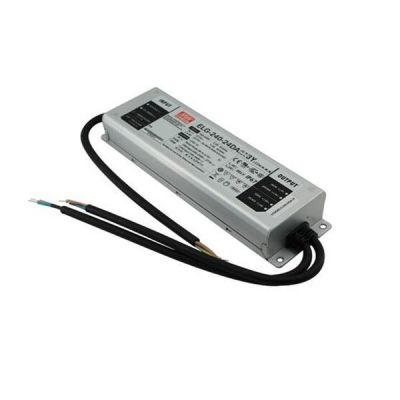

ELG-100U-36
24.38
Details

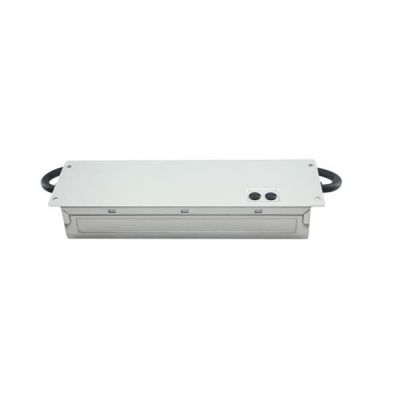

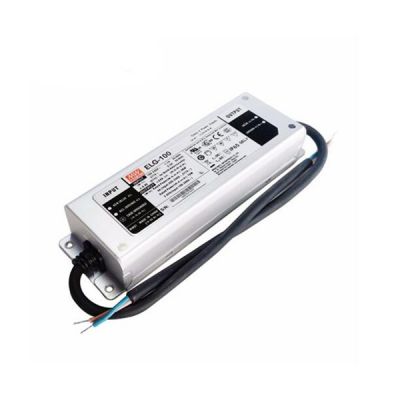

Meanwell ELG-100U-36 is a 100W LED AC DC driver with 36V18-36V2.66A95.76W250 mVp-p32.4-39.6V1.33-2.66A. The item outstands with the constant current output and constant voltage output design. Meanwhile, it can operate at input voltage of 100~360VAC, and offers the model with output rated voltage 36V. As its high conversion efficiency reaches up to 91% and no fan design, ELG-100U-36 is able to work in the case temperature range of -40°C~+90°C under natural air cooling. What’s more, the metal casing and the design of high protection grade IP67/IP65 make it suitable for indoor or outdoor applications. In addition, the product is supplied with various functions and options such as several dimming methods. Due to its longevity, high efficiency and excellent reliability, Meanwell ELG-100U-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell ELG-100U-36 Encoding
| ELG | Series Name |
| 100U | Rated Wattage |
| 36 | Rated Output Voltage (24/36/42/48V) |
| A | Function Mode Option |
| Type | Function | Note |
| Blank | IO and VO fixed | By request |
| A | lo and Vo adjustable through built-in potentiometer. | By request |
| B | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) | By request |
Meanwell ELG-100U-36 Specifications
| Model | ELG-100U-36 □ | |
| Output | DC VOLTAGE | 36V |
| CONSTANT CURRENT REGION | 18-36V | |
| RATED CURRENT | 2.66A | |
| RATED POWER | 95.76W | |
| RIPPLE & NOISE (max.) | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A Type only (via built-in potentiometer) | |
| 32.4-39.6V | ||
| CURRENT ADJ. RANGE | Adjustable for A Type only (via built-in potentiometer) | |
| 1.33-2.66A | ||
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 80ms/120VAC 500ms, 100ms/230VAC | |
| HOLD UP TIME (Typ.) | 15ms/120VAC 10ms/230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/120VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/120VAC; at load>=60%/230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT | 1.1A / 120VAC 0.6A / 230VAC 0.5A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth = 1.4ms measured at 10% Ipeak , twidth = 620us measured at 50% Ipeak) at 277VAC ; Per NEMA 410 | |
| NO LOAD / STANDBY POWER CONSUMPTION | <0.5W | |
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode , recovers automatically after fault condition is removed | |
| OVER TEMPERATURE | Shut down output voltage with auto-recovery or re-power on to recover | |
| OVER VOLTAGE | 41-48V | |
| Shut down output voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL” ),CSA C22.22 No.250.13-12 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC part 15 class B | |
| EMC IMMUNITY | Design refer to IEC61000-4-2,3,4,5,6,8,11;EN61547,light industry level | |
| Others | MTBF | 2877.8K hrs min. Telcordia SR-332 (Bellcore) 287.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*63*35.5mm (L*W*H) | |
| PACKING | 0.85kg; 16pcs/14.2kg/0.72CUFT | |
Meanwell ELG-100U-36 Features
l Typical lifetime> 50000 hours
l 5 years warranty
l Class 2 power unit
l Constant Voltage + Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l No load/ Standby power consumption <0. 5W
l Suitable for use in Dry, Damp and Wet Locations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off)
Meanwell ELG-100U-36 Applications
l LED street lighting
l LED architectural lighting
l LED bay lighting
l LED floodlighting
l Type HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell ELG-100U-36 Mechanical Diagram
