ELG-100
25.01
Details

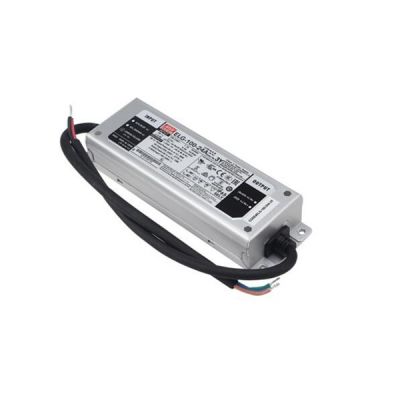

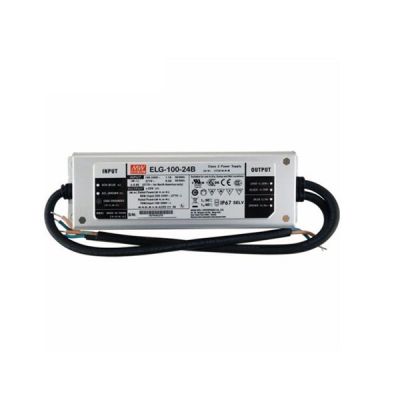

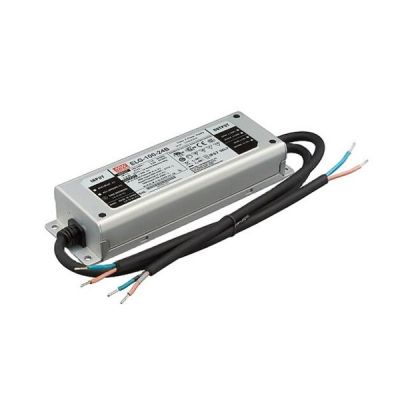

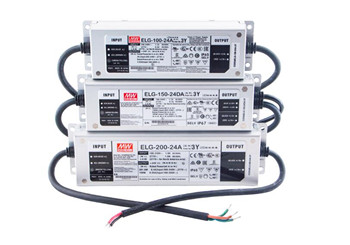

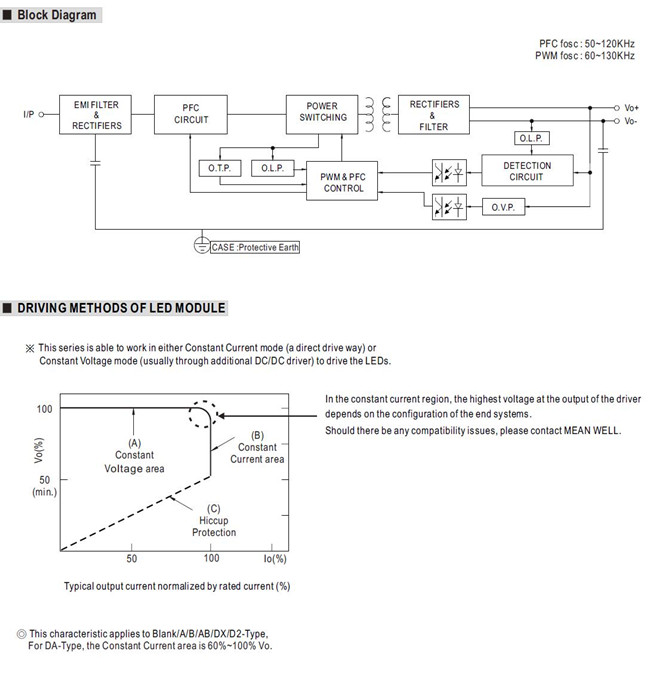

Meanwell ELG-100 Series is a 100W AC/DC LED driver. The entire series highlights the dual mode constant voltage and constant current output. At the same time, It operates from 100~ 360VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 91% and the fanless design, ELG-100 is able to work for -40℃~ +90℃ case temperature under free air convection. The metal housing design and IP67/IP65 ingress protection level allows to fit both indoor and outdoor applications. Apart from them, ELG-100 is equipped with various function options such as dimming methodologies. Considering its long life, high efficiency and excellent quality, Meanwell ELG-100 Series is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell ELG-100 Series Encoding
| ELG | Series Name |
| 100 | Rated Wattage |
| 36 | Rated Output Voltage (24/36/42/48V/54V) |
| A | Function Mode Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO and VO fixed | In stock |
| A | IP65 | lo and Vo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-100 Series Model Specifications
| Model | ELG-100-24 □ | ELG-100-36 □ | ELG-100-42 □ | ELG-100-48 □ | ELG-100-54 □ | |
| Output | DC VOLTAGE | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 12-24V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 4.0A | 2.66A | 2.28A | 2A | 1.78A | |
| RATED POWER | 200VAC ~ 305VAC | |||||
| 96W | 95.76W | 95.76W | 96W | 96.12W | ||
| 100VAC ~ 180VAC | ||||||
| 70W | 70W | 70W | 70W | 70W | ||
| RIPPLE & NOISE (max.) | 200 mVp-p | 250 mVp-p | 250 mVp-p | 300 mVp-p | 350 mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 21.6-26.4V | 32.4-39.6V | 37.8-46.2V | 43.2-52.8V | 48.6-59.4V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 2-4A | 1.33-2.66A | 1.14-2.28A | 1-2A | 0.89-1.78A | ||
| VOLTAGE TOLERANCE | ±3.0% | ±2.5% | ±2.5% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms/115VAC 500ms, 100ms/230VAC | |||||
| HOLD UP TIME (Typ.) | 15ms/115VAC 10ms/230VAC | |||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC) | |||||
| EFFICIENCY (Typ.) | 88.00% | 89.00% | 90.00% | 90.00% | 91.00% | |
| AC CURRENT | 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD START 60A(twidth=850μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |||||
| OVER VOLTAGE | 28-34V | 41-48V | 47-54V | 54-62V | 62-72V | |
| Shut down output voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 24/24A/24B/24DA/36/36A/36B/42/42A/42ADA/42B/48/48B/54/54A/54ADA/54B only); GB19510.1, GB19510.14; IP65 or IP67;KC61347-1,KC61347-2-13 approved |
||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%); BS EN/EN61000-3-3;GB17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547 | |||||
| Others | MTBF | 2920.8K hrs min. Telcordia SR-332 (Bellcore) 282.9Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 199*63*35.5mm (L*W*H) | |||||
| PACKING | 0.85kg; 16pcs/14.2kg/0.72CUFT | |||||
Meanwell ELG-100 Series Features
l Constant Voltage + Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l Class 2 power unit
l No load/Standby power consumption <0.5W
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in1dimming (dim-to-off);
Smart timer dimming; DALI
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell ELG-100 Series Applications
l LED street lighting
l LED architectural lighting
l LED bay lighting
l LED floodlighting
l Type HL" for use in Class I, Division 2hazardous (Classified) location

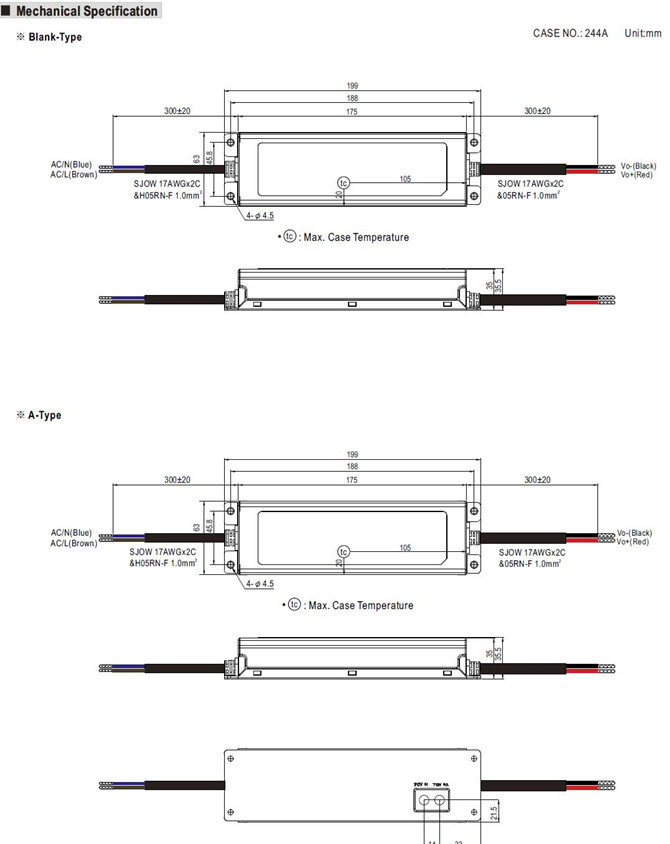

Meanwell ELG-100 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
