ELG-100-C1400
24.93
Details

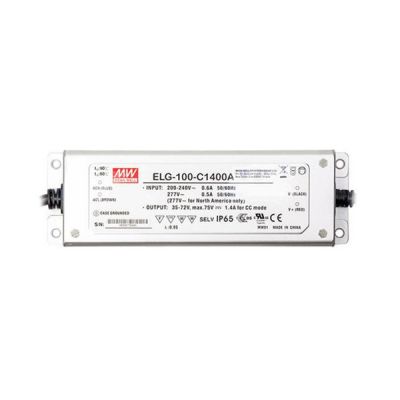

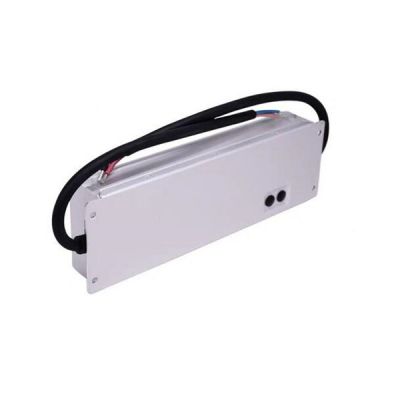

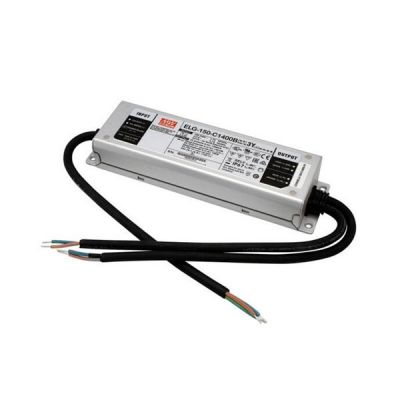

Meanwell ELG-100-C1400 is a 100W LED AC/DC driver with 1400mA200VAC~305VAC100.8W100VAC~180VAC70W35-72V75V700-1400mA. It highlights the constant current mode and high voltage output. At the same time, the model operates from 100~360VAC and equipped with the rated current 1400mA. Thanks to the high efficiency up to 92% and the fanless design, ELG-100-C1400 is able to work for -40 ℃~+90 ℃ case temperature under free air convection. In addition to them, the design of metal housing and IP67/IP 65 ingress protection level allows it to fit both indoor and outdoor applications. Moreover, ELG-1 00-C1400 is supplied with various function options, such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent reliability, Meanwell ELG-100-C1400 functions as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-100-C1400 Encoding
| ELG | Series Name |
| 100 | Rated Wattage |
| C1400 | Rated Output Current ( 350/500/700/1050/1400mA)) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
Meanwell ELG-100-C1400 Specifications
| Model | ELG-100-C1400 □ | |
| Output | RATED CURRENT | 1400mA |
| RATED POWER | 200VAC ~ 305VAC | |
| 100.8W | ||
| 100VAC ~ 180VAC | ||
| 70W | ||
| CONSTANT CURRENT REGION | 35-72V | |
| OPEN CIRCUIT VOLTAGE (max) | 75V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 700-1400mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 1000ms/115VAC 500ms/230VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.1A / 115VAC 0.6A / 230VAC 0.5A/277VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 40A(twidth=760μs measured at 50% Ipeak)/230VAC; Per NEMA 41 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
|
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| OVER VOLTAGE | 79-95V | |
| Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 700A,1050A only);GB19510.1,GB19510.14; IP65 or IP67; KC61347-1,KC61347-2-13 approved |
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3; Gb17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV); EAC TP TC 020; KC KN15,KN61547 | |
| Others | MTBF | 3070.8K hrs min. Telcordia SR-332 (Bellcore) 300.7Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*63*35.5 mm (L*W*H) | |
| PACKING | 0.85kg; 16pcs/14.2kg/0.72CUFT | |
Meanwell ELG-100-C1400 Features
l Constant Current mode output
l Metal housing design with functional Ground
l Typical lifetime>50000 hours
l 5 years warranty
l Built-in active PFC function
l No load/Standby power consumption <0.5W
l lP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Meanwell ELG-100-C1400 Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2hazardous (Classified) location
Meanwell ELG-100-C1400 Mechanical Diagram
