EDR-75-12
15.24
Details

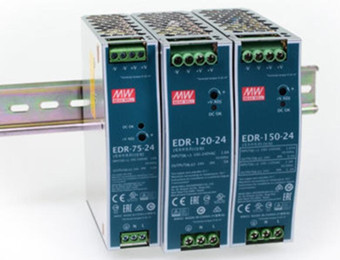

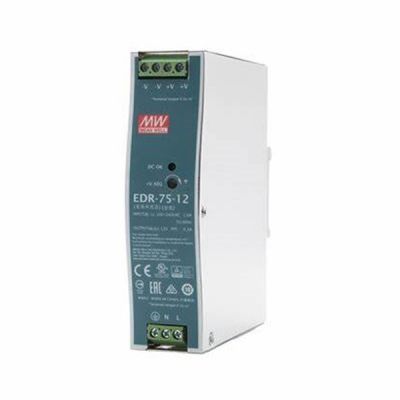

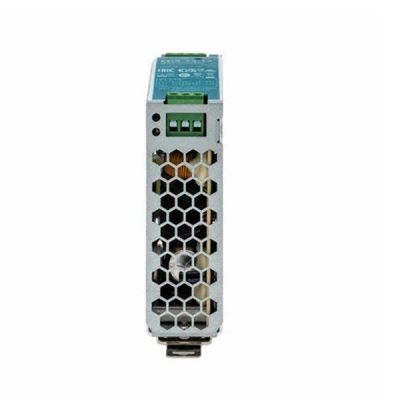

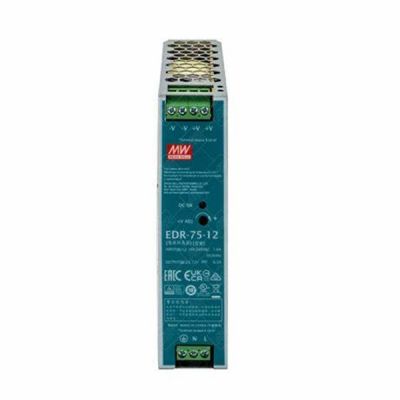

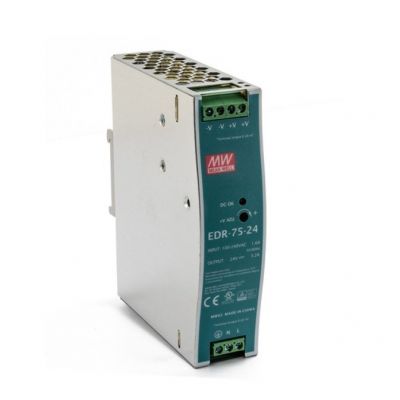

Meanwell EDR-75-12 is an economical slim 75W Din rail power supply with 12V6.A0-6.3A75.6W80mVp-p12-14V. This model adapts to be installed onTS-35/7.5 or TS-35/15 mounting rails. Its body is designed just 32mm in width, which saves a lot of space inside the cabinets. EDR-75-12 uses the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. In addition, EDR-75-12 is designed with metal housing that enhances the power dissipation. As working efficiency reaching up to 88.5%, the unit can operate at the ambient temperature between -20℃ and 60℃ under air convection. Furthermore, it is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) allows EDR-75-12 a very competitive power supply solution for industrial applications.
Meanwell EDR-75-12 Specifications
| Model | EDR-75-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 6.3A | |
| CURRENT RANGE | 0-6.3A | |
| RATED POWER | 75.6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE ADJ. RANGE | 12-14V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1200ms, 60ms/230VAC 2000ms, 60ms/115VAC at full load | |
| HOLD UP TIME | 60ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 85.50% | |
| AC CURRENT (Typ.) | 1.45A/115VAC 0.9A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 14-17V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class A | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 506.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 32*125.2*102mm (W*H*D) | |
| PACKING | 0.51Kg; 28pcs/15.3Kg/1.22CUFT | |
Meanwell EDR-75-12 Features
l 100% full load burn-in test
l 2 years warranty
l Universal AC input/ Full range
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Meanwell EDR-75-12 Applications
l Industrial control system
l Semiconductor fabrication equipment
l Factory automation
l Electro-mechanical apparatus
