DRS-480-48
213.69
Details

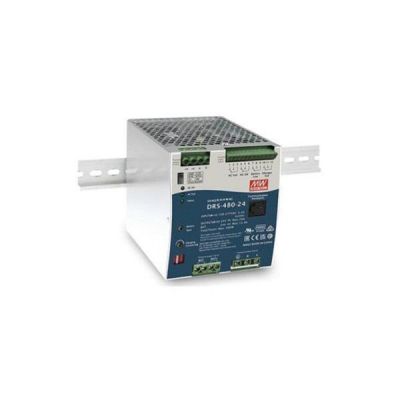

Meanwell DRS-480-48 is a 480W AC/DC DIN rail type security power supply with 48V0-10A7.7A10-100AH480mVp-p.It can be installed on DIN rail TS-35/7.5 or 15 with the universal input between 90VAC and 305VAC and output 24VDC nominal systems. Apart from the primary output, there is an extra charger circuit which will automatically adjust charge current depending on the primary output current. With high efficiency up to 93.5%, DRS-480-48 is able to run under -30 ℃ through 70℃ with free air convection cooling. The product is equipped with the key protection features such as overload protection, over voltage protection, battery low voltage disconnect, and battery reverse polarity protection, More than them, DRS-480-48 provides Form-C contacts and LED indicator alarm signals for AC-fail, battery low, charger circuit fail, and DC-OK to allow easy integration into security systems that meets local alarm codes. In light of its longevity, excellent quality and high reliability, Meanwell DRS-480-48 is an ideal power supply solution for industrial applications.
Meanwell DRS-480-48 Encoding
| DRS | Series Name |
| 480 | Rated Wattage |
| 48 | Output Voltage (24V/36V/48V) |
| ** | Function option (Blank, Built-in MODBus, CAN. CANBus optional) |
Meanwell DRS-480-48 Specifications
| Model | DRS-480-48 | |
| Output | OUTPUT VOLTAGE | 48V |
| CURRENT RANGE | 0-10A | |
| BATTERY CURRENT (CC)(max.) | 7.7A | |
| RECOMMENDED BATTERY CAPACITY(AMP HOURS) |
10-100AH | |
| RIPPLE & NOISE (max.) | 480mVp-p | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2400ms, 1000ms/230VAC 2400ms, 1000ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 10ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT (Typ.) | 5.4A/115VAC 2.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 60A/230VAC | |
| PROTECTION | SHORT CIRCUIT | Protection type: Constant current limiting, power will shutdown after 5 sec, re-power on to recover. |
| OVERLOAD | 105 ~ 135% rated output power | |
| Protection type: Constant current limiting, shutdown output voltage after 5 sec | ||
| OVER TEMPERATURE | Automatically drop load with temperature only for bat. load. | |
| Protection type : Shut down o/p voltage, recover automatically after temperature goes down. | ||
| OVER VOLTAGE | Load main output:64.8~74.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| BATTERY CUT OFF | 41.8±1V | |
| REVERSE POLARITY | By internal MOSFET, no damage, recovers automatically after fault condition is removed | |
| FUNCTION | FORM-C RELAY AC FAIL | Signals AC failure and activates when input voltage drops below : 79~89VAC of 120AC, 132~187VAC of 220VAC. Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30Vdc/1A |
| FORM-C RELAY CHARGER FAIL | Relay contact output, ON : Charger OK ; OFF : Charger Fail ; max. rating : 30Vdc/1A | |
| FORM-C RELAY DC OK | Signals normal DC output and activates when output voltage > 90% rated value. Relay contact output, ON : DC OK ; OFF : DC Fail ; max. rating : 30Vdc/1A |
|
| FORM-C RELAY BATTERY LOW/ ABNORMAL/DISCONNECTED |
Relay contact output, ON : Battery OK ; OFF : Battery Low ; max. rating : 30Vdc/1A | |
| Battery low voltage:< 44±0.5V | ||
| BATTERY START | Restart system directly from battery and does not require AC power | |
| DC-UPS | UPS switch to battery power within 10ms of AC failure | |
| ADJUSTABLE CHARGING CURRENT | 20% ~ 100% charging current adjustable by VR | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) on Load output | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 2000 meters / OVC Ⅲ | |
| OVER VOLTAGE CATEGORY | Ⅲ; According to Dekra BS EN/EN62368-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NZS 62368.1 approved; EAC TP TC 004 pending |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH | |
| EMC IMMUNITY | BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2) | |
| Others | MTBF | 556.6K hrs min. Telcordia SR-332 (Bellcore); 74.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 110*125.2*150.7mm (W*H*D) | |
| PACKING | 1.65Kg; 6pcs/ 11Kg / 1.42CUFT | |
Meanwell DRS-480-48 Features
l 3 years warranty
l Cooling by free air convection
l 2 or 3-stage selectable by DIP S.W
l Can be installed on DIN rail TS-35/7.5 or 15
l Charging curve can be set with SBP-001
l Suitable for lead acid and lithium-ion batteries
l Universal input 90~305VAC (277VAC available)
l Load-dependent high speed battery charging
l Built-in MODBus protocol, CANBus optional
l -30℃ ~ +70℃ wide operating temperature
l Battery low protection/Battery reverse polarity protection
l Form C relay contacts and L ED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK
l All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
l Signal and alarms design meet UL2524, NFPA 1221, BS EN/EN54-4and GB17945 requirement, with adjustable parameters configurable by communication interface
l Protections: Short circuit/ Overload/Over voltage/Over temperature (auto derating)/Battery reverse polarity (No damage)/ Battery cut off
Meanwell DRS-480-48 Applications
l Alarm system
l Industrial automation
l Emergency lighting system
l Central monitoring system
l Public safety battery back-up (Red box) Security system
l Uninterruptible DC-UPS system, battery detection system
Meanwell DRS-480-48 Mechanical Diagram
