Meanwell DRP-3200 Series is a 3200W single output rack mountable front end AC/DC power supply. The entire series is designed with 1U low profile and high power density up to 37W/inch³. They operate at 90~ 264VAC input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the built-in DC fan with fan speed control. Since the efficiency reaches high up to 94.5% and active PFC function, DRP-3200 Series is able to work for the temperature up to 70℃. Apart from them, the series provides vast design flexibility by equipping various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 25600W via two 19" rack shelves, DHP- 1UT), remote ON/OFF control, auxiliary power, alarm signal, and etc. Maximum number monitored by master controller in communication shall be 8 power supplies. Considering its longevity, high reliability and high efficiency, Meanwell DRP-3200 Series serves as a high performance power supply solution for various industrial applications such as automated industry, Wireless/Telecom Solutions and redundant power system, and so on.
Meanwell DRP-3200 Series Encoding
| DRP | Series Name |
| 3200 | Output Wattage |
| 24 | OutputVoltage ( 24V/48V) |
| *** | Communication Protocol Option |
| Blank | PMBus In Stock |
| CAN | CANBus Protocol By Request |
Meanwell DRP-3200 Series Model Specifications

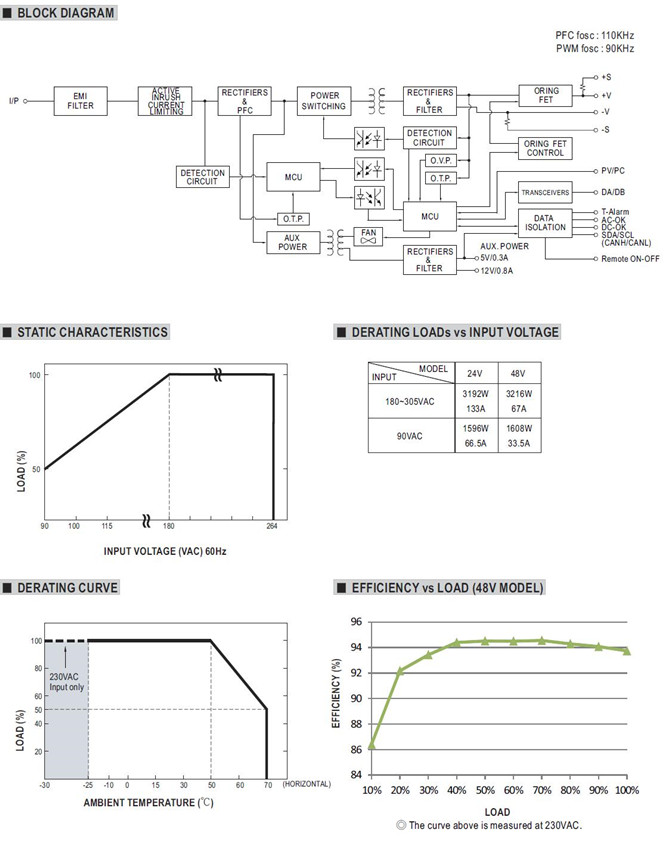

| Model | DRP-3200-24 | DRP-3200-48 | ||
| Output | DC VOLTAGE | 24V | 48V | |
| RATED CURRENT | 133A | 67A | ||
| CURRENT RANGE | 0-133A | 0-67A | ||
| RATED POWER | 3192W | 3216W | ||
| RIPPLE & NOISE (max.) | 300 mVp-p | 480 mVp-p | ||
| VOLTAGE ADJ. RANGE(SVR) | 23.5-30V | 47.5-58.8V | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ||
| LINE REGUL ATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |||
| HOLD UP TIME | 16ms / 230VAC at 75% load 9ms / 230VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 93.50% | 94.50% | ||
| AC CURRENT (Typ.) | 17A/230VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 55A/230VAC | |||
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 115% rated current | ||
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||||
| OVER VOLTAGE | 31.5 ~ 37.5V | 63 ~ 75V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, tolerance±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance±10%, ripple 450mVp-p | ||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages | |||
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage | |||
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current. | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages | |||
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK. | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 535.5K hrs min. Telcordia SR-332 (Bellcore) ; 44.6K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 325*107*41mm (L*W*H) | |||
| PACKING | 2.65Kg;4pcs/11.6Kg/0.87CUFT | |||
Meanwell DRP-3200 Series Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 94.5%
l Forced air cooling by built-in DC fan
l Output voltage and constant current level programmable
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 12800W for one 19" rack shelf
l Built-in I²C interface, support PMBus protocol (Optional CANBus protocol)
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell DRP-3200 Series Applications
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system

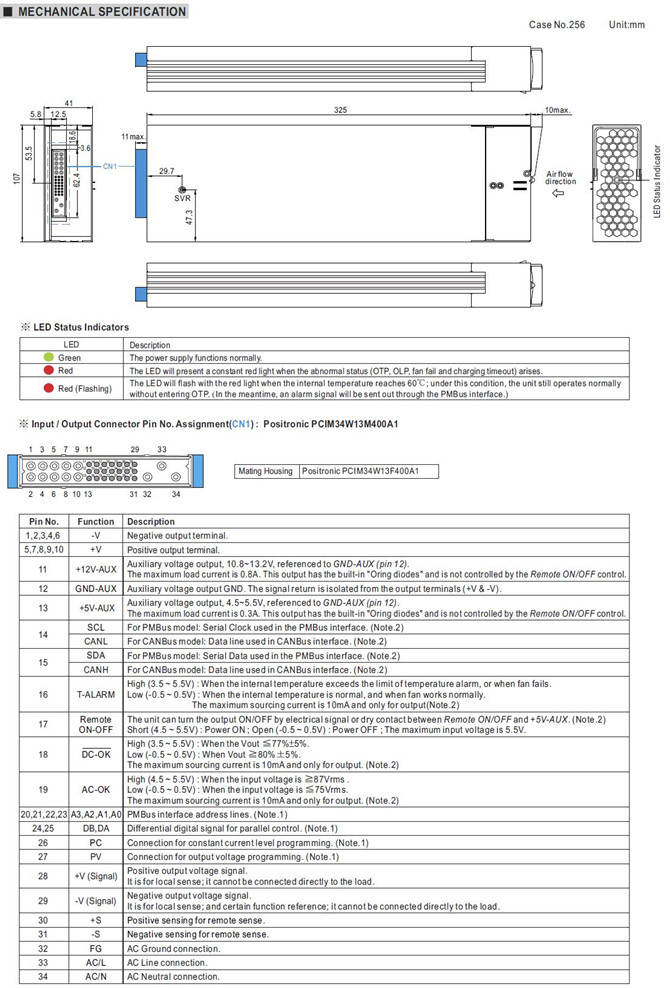

Meanwell DRP-3200 Series Mechanical Diagram
