DRP-3200-48
879.46
Details

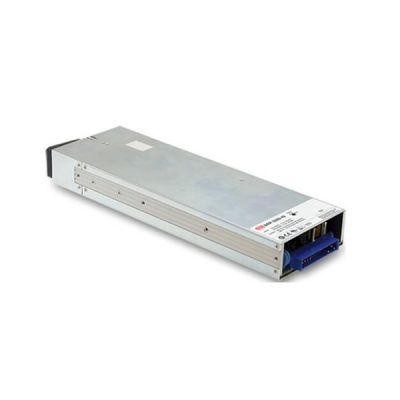

Meanwell DRP-3200-48 is a 3200W single output rack mountable front end AC/DC power supply with 48V67A0-67A3216W480 mVp-p47.5-58.8V. It is designed with 1U low profile and high power density up to 37W/inch³. What’s more, the item operates at 90~ 264VAC input voltage and equipped with the DC output mostly requested by the industry. The model is cooled by the built-in DC fan with fan speed control. with the efficiency reaching high up to 94.5% and active PFC function, DRP-3200-48 is able to work for the temperature up to 70℃. Apart from them, the unit provides vast design flexibility via various built-in functions such as the PMBus communication protocol, output programming, active current sharing (up to 25600W via two 19" rack shelves, DHP- 1UT), remote ON/OFF control, auxiliary power, alarm signal, and etc. Maximum number monitored by master controller in communication shall be 8 power supplies. Due to its longevity, high reliability and high efficiency, Meanwell DRP-3200-48 serves as a high performance power supply solution for various industrial applications such as automated industry, Wireless/Telecom Solutions and redundant power system, and so on.
Meanwell DRP-3200-48 Encoding
| DRP | Series Name |
| 3200 | Output Wattage |
| 48 | OutputVoltage ( 24V/48V) |
| *** | Communication Protocol Option |
| Blank | PMBus In Stock |
| CAN | CANBus Protocol By Request |
Meanwell DRP-3200-48 Specifications
| Model | DRP-3200-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 67A | |
| CURRENT RANGE | 0-67A | |
| RATED POWER | 3216W | |
| RIPPLE & NOISE (max.) | 480 mVp-p | |
| VOLTAGE ADJ. RANGE(SVR) | 47.5-58.8V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |
| HOLD UP TIME | 16ms / 230VAC at 75% load 9ms / 230VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |
| EFFICIENCY (Typ.) | 94.50% | |
| AC CURRENT (Typ.) | 17A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 55A/230VAC | |
| LEAKAGE CURR ENT | <1.5mA / 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 115% rated current |
| Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover | ||
| OVER VOLTAGE | 63 ~ 75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A, tolerance±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance±10%, ripple 450mVp-p |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages | |
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage | |
| CONSTANT CURRENT LEVEL PROGRAMMABLE(PC) | Adjustment of constant current level is allowable to 20 ~ 100% of rated current. | |
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:short Power OFF:open. | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages | |
| ALARM SIGNAL | Isolated TTL signal output for T-Alarm, AC-OK and DC-OK. | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 535.5K hrs min. Telcordia SR-332 (Bellcore) ; 44.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 325*107*41mm (L*W*H) | |
| PACKING | 2.65Kg;4pcs/11.6Kg/0.87CUFT | |
Meanwell DRP-3200-48 Features
l 5 years warranty
l Optional conformal coating
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 94.5%
l Forced air cooling by built-in DC fan
l Built-in OR-ing FET, support hot swap (hot plug)
l Active current sharing up to 12800W for one 19" rack shelf
l Output voltage and constant current level programmable
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Built-in I²C interface, support PMBus protocol (Optional CANBus protocol)
Meanwell DRP-3200-48 Applications
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system
Meanwell DRP-3200-48 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
