DRC-60B
25.81
Details

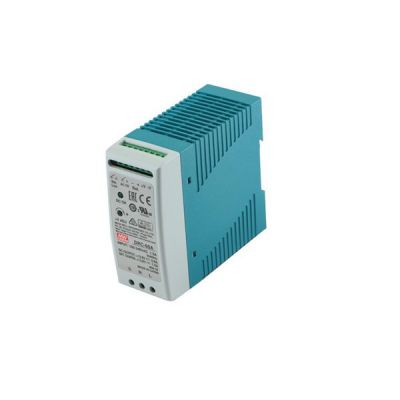

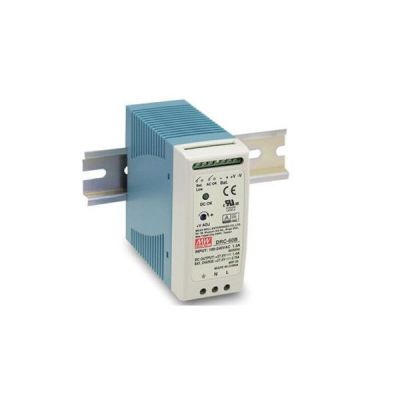

Meanwell DRC-60B is 60W AC/DC Single Output DIN rail type security power supply Battery Charger (UPS Function) with CH1CH227.6V27.6V1.4A0.75A0-2.15A59.34W200mVp-pCH1:24-30V. it could be mounted on DIN rail TS-35/7.5 or 15. The width is designed just 40mm, well suited for the installation in limited spacing. Except for the primary output, there is a charger output with smaller rated current, enabling the backup power supply application the security access systems need. Additionally, DRC-60B accepts the universal input between 90V AC and 264VAC, and supplies 13.8VDC and 27.6VDC at output. As the efficiency reaches up to 88%, it can work with air convection cooling under -30℃ through 70℃. Besides the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is equipped as well, via TTL open collector output for the standard model to facilitate the system design. Thanks to its high efficiency, excellent reliability and long lifespan. Meanwell DRC-60B serves as an ideal power supply solution for industrial applications.
Meanwell DRC-60B Encoding
| DRC | Series Name |
| 60 | Output wattage |
| B | Output Voltage |
Meanwell DRC-60B Specifications
| Model | DRC-60B | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 27.6V | 27.6V | |
| RATED CURRENT | 1.4A | 0.75A | |
| CURRENT RANGE | 0-2.15A | ---- | |
| RATED POWER | 59.34W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:24-30V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | |
| SETUP, RISE TIME | 400ms, 50ms/230VAC 800ms, 50ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF≧0.95/230VAC PF≧0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 88.00% | ||
| AC CURRENT (Typ.) | 1.3A/115VAC 0.8A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | CH1:28.98 ~ 37.26V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| BATTERY CUT OFF | 20±1V | ||
| FUNCTION | AC OK | Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30V/1A | |
| BATTERY LOW | Relay contact output, OFF : Battery OK ; ON : Battery Low ; max. rating : 30V/1A | ||
| Battery low voltage : < 22V | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61204-3, light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 1854.1K hrs min. Telcordia SR-332 (Bellcore) ; 504.1K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 40*90*100mm (W*H*D) | ||
| PACKING | 0.3Kg; 42pcs/13.6Kg/0.82CUFT | ||
Meanwell DRC-60B Features
l Pass L PS
l 3 years warranty
l Cooling by free air convection
l LED indicator for power on
l 100% full load burn-in test
l Universal AC input/ Full range

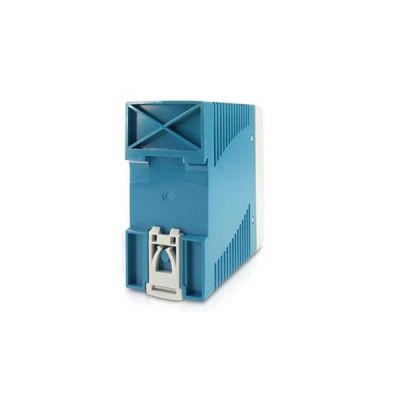

l Can be installed on DIN rail TS-35/7.5 or 15
l Protections: Short circuit/Overload/Over voltage
l Alarm signal for AC OK and Battery low via relay contact
l Battery low protection/Battery reverse polarity protection by fuse
Meanwell DRC-60B Applications
l Security system
l Alarm system
l DC UPS system
l Central monitoring system
l Access systems
l Emergency lighting system
Meanwell DRC-60B Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
