DRA-60-24
22.16
Details

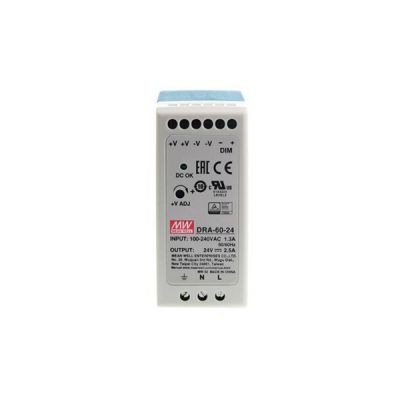

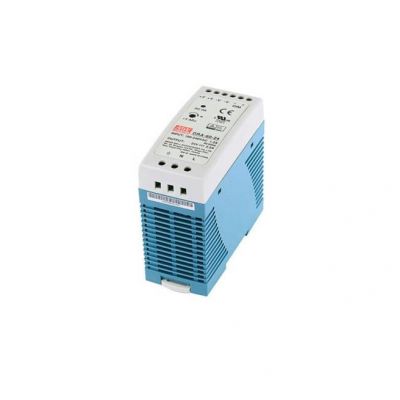

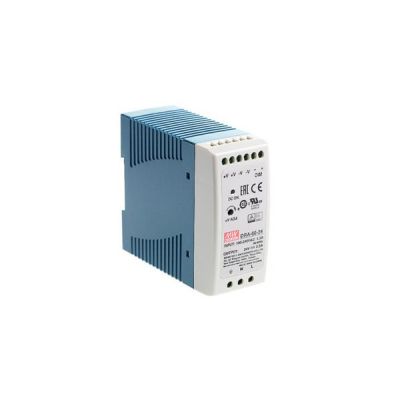

Meanwell DRA-60-24 is a 60W AC/DC DIN rail power supply with 24V3-24V2.5A0-2.5A60W150mVp-p24-30V. This unit outstands the adjustable output current. The users are able to easily modify the constant output current level via 1~ 10Vdc, PWM signal or resistance. Apart from them, DRA-6O-24 can be mounted on DIN rail TS-35/7.5 or 15. Furthermore, the width of this unit is just 40mm, so it is well suitable for the installation in limited spacing. In addition, DRA-60-24 also accepts the universal AC input between 90V AC and 264V AC. As the efficiency reaches up to 87%, the product can operate from -30 ℃ through 70 ℃ under free air convection. Because of its high efficiency, high reliability and long longevity. Meanwell DRA-60-24 is a high price-to-performance power supply solution for industrial applications.
Meanwell DRA-60-24 Specifications
| Model | DRA-60-24 | |
| Output | DC VOLTAGE | 24V |
| CONSTANT CURRENT REGION | 3-24V | |
| RATED CURRENT | 2.5A | |
| CURRENT RANGE | 0-2.5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24-30V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load | |
| HOLD UP TIME | 50ms/230VAC 10ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 1.3A/115VAC 0.8A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 60A/230VAC | |
| PROTECTION | OVERLOAD | 95 ~ 108% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 28.98 ~ 37.26V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) on output | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 436.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*90*100mm (W*H*D) | |
| PACKING | 0.3Kg; 42pcs/13.6Kg/0.82CUFT | |
Meanwell DRA-60-24 Features
l Pass LPS
l 3 years warranty
l LED indicator for power on
l 100% full load burn-in test
l Universal AC input/ Full range
l Cooling by free air convection
l Protections: Short circuit/Overload/Over voltage
l Can be installed on DIN rail TS-35/7.5 or 15
l Output Voltage adjustable through internal potentiometer
l Output Current adjustable through external 1~ 10Vdc, PWM signal or resistance
Meanwell DRA-60-24 Applications
l Machine vision inspection system
l Plant cultivation system
Meanwell DRA-60-24 Mechanical Diagram
