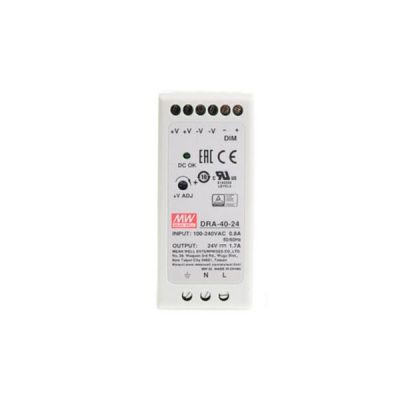

DRA-40
18.15
Details
Meanwell DRA-40 Series is a 40W AC/DC DIN rail power supply, and features the adjustable output current. Users are able to easily change the constant output current level, via 1~10V dc, PWM signal or resistance. In addition, DRA-40 series can be mounted on DIN rail TS-35/7.5 or 15. Apart from them, the width of the unit is only 40mm. so that it is well suited for the installation in a limited spacing. The entire DRA-40 series accepts the universal AC input between 90V AC and 264VAC. The efficiency reaches up to 87%, that the entire series can operate, under free air convection, from -30 ℃ through 70 ℃. Considering its high efficiency, high reliability and long longevity. Meanwell DRA-40 series serves as a high price-to-performance power supply solution for industrial applications.
Meanwell DRA-40 Series Model Specifications
| Model | DRA-40-12 | DRA-40-24 | |
| Output | DC VOLTAGE | 12V | 24V |
| CONSTANT CURRENT REGION | 3-12V | 3-24V | |
| RATED CURRENT | 3.34A | 1.7A | |
| CURRENT RANGE | 0-3.34A | 0-1.7A | |
| RATED POWER | 40.08W | 40.8W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | 24-30V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load | ||
| HOLD UP TIME | 50ms/230VAC 10ms/115VAC at full load | ||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] | |
| FREQUENCY RANGE | 47 - 63Hz | ||
| EFFICIENCY (Typ.) | 85.00% | 87.00% | |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.6A/230VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 60A/230VAC | ||
| PROTECTION | OVERLOAD | 95 ~ 108% rated output power | |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 14.49 ~ 18.63V | 28.98 ~ 37.26V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 55℃) on output | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020 | ||
| Others | MTBF | 439.3K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 40*90*100mm (W*H*D) | ||
| PACKING | 0.3Kg; 42pcs/13.6Kg/0.82CUFT | ||
Meanwell DRA-40 Series Features
l Universal AC input/ Full range
l Protections: Short circuit 1 Overload 1 Over voltage

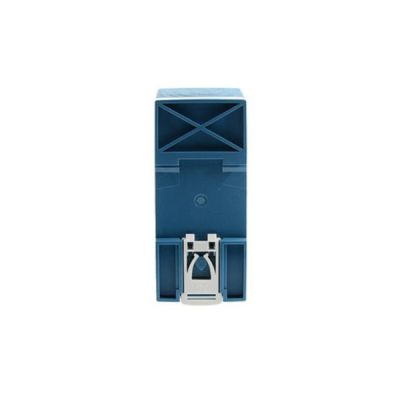

l Can be installed on DIN rail TS-35/7.5or 15
l Output Voltage adjustable through internal potentiometer

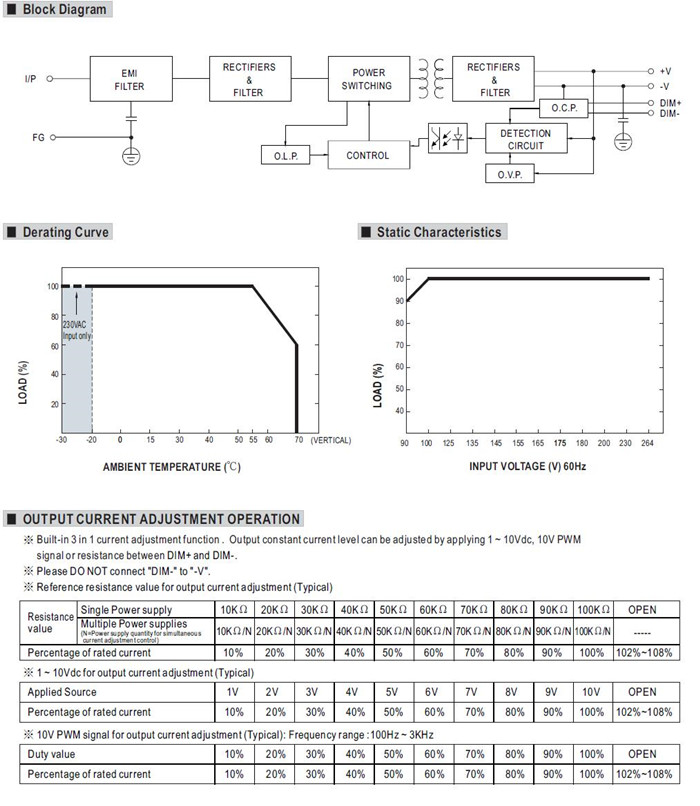

l Output Current adjustable through external 1~ 10Vdc, PWM signal or resistance
l Cooling by free air convection
l Pass LPS
l LED indicator for power on
l 100% full load burn-in test
l 3 years warranty
Meanwell DRA-40 Series Applications
l Machine vision inspection system
l Plant cultivation system

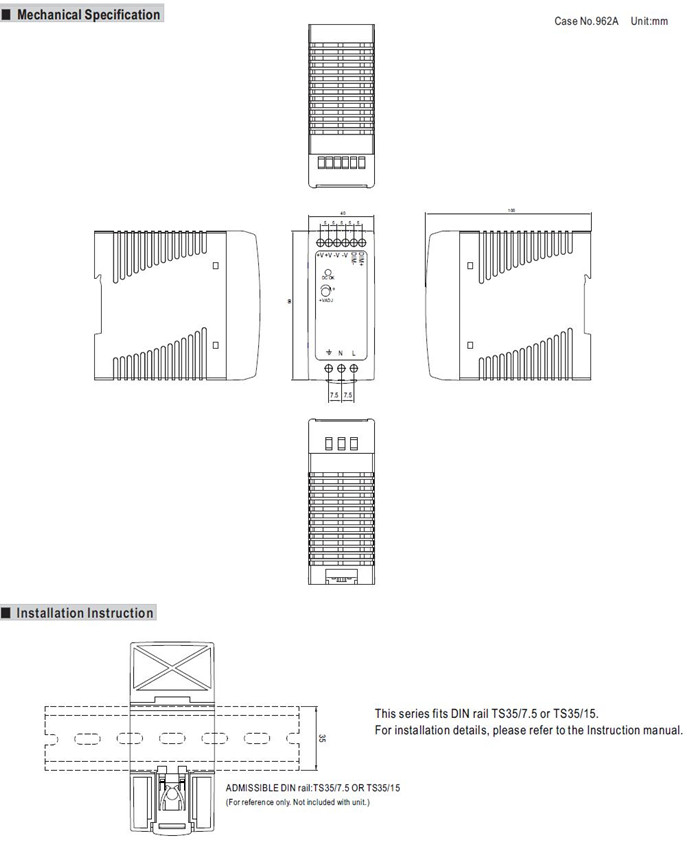

Meanwell DRA-40 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
