DPU01N
2.33
Details

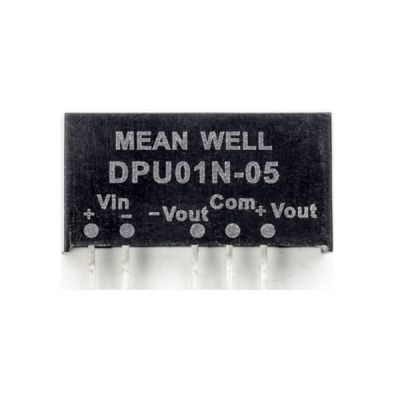

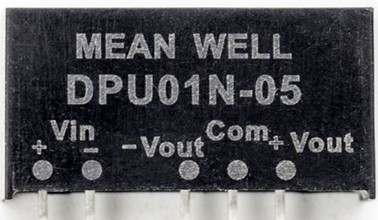

Meanwell DPU01N Series is 1W isolated and unregulated DC-DC converter. Meanwhile, the item outstands module type and SIP6 package. The main features are as following: international standard pins, high efficiency reaching up to 84%, wide working temperaturerange -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, short circuit protection, etc. In addition, the models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its high reliability, excellent quality, and competitive price, Meanwell DPU01N Series is suitable for all kinds of systems, such as industrial control, telecommunicationfield, distributed power architecture, and so on.
Meanwell DPU01N Series Encoding
| DPU | Series Name | S: Single Output |
| D: Dual Output | ||
| 01 | Rated Wattage | |
| N | Input Voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N: 21.6-26.4Vdc | |
| 12 | 5V/12V/15Vdc ±5V/±12V/±15Vdc | |
Meanwell DPU01N Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DPU01N-05 | 24V (21.6~26.4V) | 7mA | 54mA | ±5V | ±0~100mA | 80% | 100μF |
| DPU01N-12 | 7mA | 53mA | ±12V | ±0~42mA | 80% | 100μF | |
| DPU01N-15 | 8mA | 55mA | ±15V | ±0~33mA | 78% | 100μF | |
| INPUT | VOLTAGE RANGE | L: 4.5 ~ 5.5Vdc , M: 10.8 ~ 13.2Vdc , N: 21.6 ~ 26.4Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 500mA Slow-Blow Type for all models | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | 10% | ||||||
| SWITCHING FREQUENCY (Typ.) | 24Vin: 75KHz, other: 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | 1 second max | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃(Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 10pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 1500Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton 24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton |
||||||
Meanwell DPU01N Series Features
l Low cost
l 3 years warranty
l SIP6 package with industry standard pinout
l Protection: Short circuit
l High efficiency up to 84%
l 1.5KVDC l/O isolation
l Operating temperature range -40~+90℃
l Comply to BS EN/EN55032 radiated Class A without additional components
Meanwell DPU01N Series Applications
l Analyzer
l Detector
l Instrument
l Data switch
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell DPU01N Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
