DPU01N-12
2.34

DPU01N-12

$2.34

Meanwell 1W SIP Package DC-DC Unregulated Converter with 24V7mA53mA±12V±0~42mA

- +
Availability:In stock
SKU Meanwell DPU01N-12
Brand Meanwell
Details

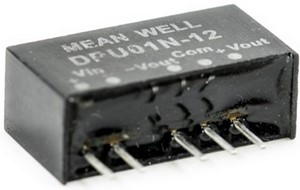

Meanwell DPU01N-12 is 1W isolated and unregulated DC-DC converter with 24V7mA53mA±12V±0~42mA. The model stands out with module type and SIP6 package. At the same time, the main features are as following: international standard pins, high efficiency up to 84%, wide working temperaturerange -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, short circuit protection, etc. Furthermore, the models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. As a result of its high reliability, excellent quality, and competitive price, Meanwell DPU01N-12 is suitable for all kinds of systems, such as industrial control, telecommunicationfield, distributed power architecture, and so on.

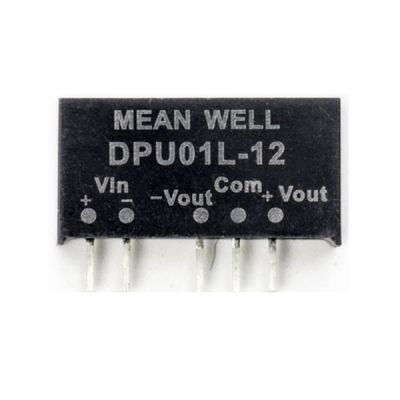

DPU01N-12 Meanwell Power Supply 1W DC-DC Unregulated Converter DPU01N DPU01N-05 DPU01N-15 Dual Output SPU01 DPU01 YCICT

Meanwell DPU01N-12 Encoding

DPU Series Name S: Single Output
D: Dual Output
01 Rated Wattage
N Input Voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N: 21.6-26.4Vdc
12 5V/12V/15Vdc ±5V/±12V/±15Vdc

Meanwell DPU01N-12 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPU01N-05 24V (21.6~26.4V) 7mA 54mA ±5V ±0~100mA 80% 100μF
DPU01N-12 7mA 53mA ±12V ±0~42mA 80% 100μF
DPU01N-15 8mA 55mA ±15V ±0~33mA 78% 100μF
INPUT VOLTAGE RANGE L: 4.5 ~ 5.5Vdc , M: 10.8 ~ 13.2Vdc , N: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 500mA Slow-Blow Type for all models
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±3%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION 10%
SWITCHING FREQUENCY (Typ.) 24Vin: 75KHz, other: 100KHz
PROTECTION SHORT CIRCUIT 1 second max
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90(Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1500Khrs MIL-HDBK-217F (25)
DIMENSION 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton
24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton

Meanwell DPU01N-12 Features

l  Low cost

l  3 years warranty

l  Protection: Short circuit

l  1.5KVDC l/O isolation

l  High efficiency up to 84%

l  SIP6 package with industry standard pinout

l  Operating temperature range -40~+90℃

l  Comply to BS EN/EN55032 radiated Class A without additional components

DPU01N-12 Meanwell Power Supply 1W DC-DC Converter SIP package DPU01N DPU01N-05 DPU01N-15 Dual Output SPU01 DPU01 YCICT

Meanwell DPU01N-12 Applications

l  Analyzer

l  Detector

l  Instrument

l  Data switch

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

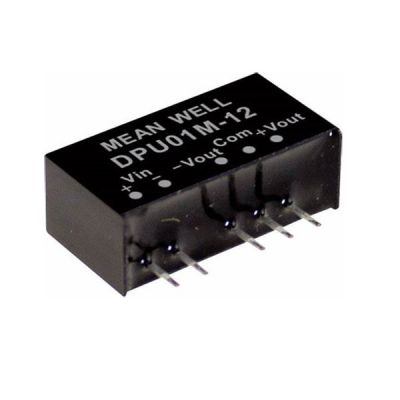

DPU01N-12 Meanwell Power Supply 1W DC-DC Converter SIP package DPU01N DPU01N-05 DPU01N-15 low cost SPU01 DPU01 YCICT

Meanwell DPU01N-12 Mechanical Diagram

DPU01N-12 Meanwell Power Supply 1W DC-DC Converter SIP DPU01N DPU01N-05 DPU01N-15 low cost SPU01 DPU01 YCICT
