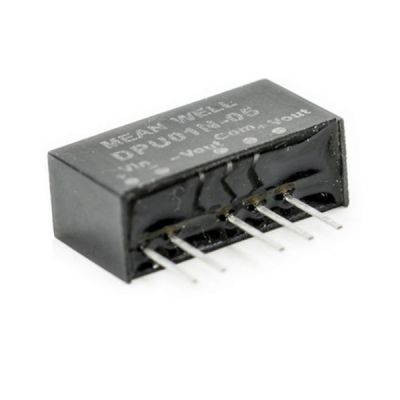

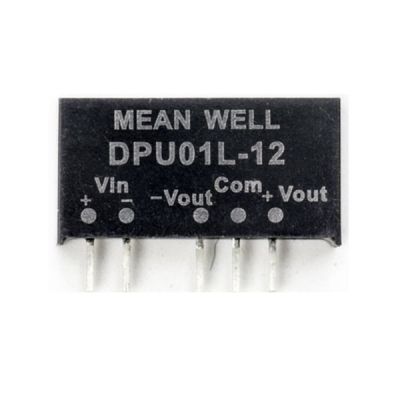

DPU01N-05
2.33
Details
Meanwell DPU01N-05 is 1W isolated and unregulated DC-DC converter with 24V7mA54mA±5V±0~100mA. At the same time, the product highlights module type and SIP6 package. The main features are as following: international standard pins, high efficiency up to 84%, wide working temperaturerange -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, short circuit protection, etc. What's more, the models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Thanks to its high reliability, excellent quality, and competitive price, Meanwell DPU01N-05 is suitable for all kinds of systems, such as industrial control, telecommunicationfield, distributed power architecture, and so on.
Meanwell DPU01N-05 Encoding
| DPU | Series Name | S: Single Output |
| D: Dual Output | ||
| 01 | Rated Wattage | |
| N | Input Voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N: 21.6-26.4Vdc | |
| 05 | 5V/12V/15Vdc ±5V/±12V/±15Vdc | |
Meanwell DPU01N-05 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DPU01N-05 | 24V (21.6~26.4V) | 7mA | 54mA | ±5V | ±0~100mA | 80% | 100μF |
| DPU01N-12 | 7mA | 53mA | ±12V | ±0~42mA | 80% | 100μF | |
| DPU01N-15 | 8mA | 55mA | ±15V | ±0~33mA | 78% | 100μF | |
| INPUT | VOLTAGE RANGE | L: 4.5 ~ 5.5Vdc , M: 10.8 ~ 13.2Vdc , N: 21.6 ~ 26.4Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 500mA Slow-Blow Type for all models | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | 10% | ||||||
| SWITCHING FREQUENCY (Typ.) | 24Vin: 75KHz, other: 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | 1 second max | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃(Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 10pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 1500Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton 24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton |
||||||
Meanwell DPU01N-05 Features
l Low cost
l 3 years warranty
l Protection: Short circuit
l High efficiency up to 84%
l 1.5KVDC l/O isolation
l SIP6 package with industry standard pinout
l Operating temperature range -40~+90℃
l Comply to BS EN/EN55032 radiated Class A without additional components
Meanwell DPU01N-05 Applications
l Analyzer
l Detector
l Instrument
l Data switch
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell DPU01N-05 Mechanical Diagram
