DPU01L
2.26

DPU01L

As low as $2.26

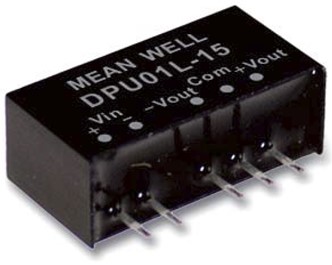

Meanwell 1W SIP Package DC-DC Unregulated Converter

- +
Availability:In stock
SKU Meanwell DPU01L
Brand Meanwell
Details

Meanwell DPU01L Series is 1W isolated and unregulated DC-DC converter. The product stands out with module type and SIP6 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 84%, wide working temperaturerange -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. What's more, the models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its high reliability, excellent quality, and competitive price, Meanwell DPU01L Series is suitable for all kinds of systems, such as industrial control, telecommunicationfield, distributed power architecture, and so on.

DPU01L Meanwell Power Supply 1W DC-DC Unregulated Converter DPU01L-05 DPU01L-12 DPU01L-15 Dual Output SPU01 DPU01 YCICT

Meanwell DPU01L Series Encoding

DPU Series Name S: Single Output
D: Dual Output
01 Rated Wattage
L Input Voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N: 21.6-26.4Vdc
12 5V/12V/15Vdc ±5V/±12V/±15Vdc

Meanwell DPU01L Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPU01L-05 5V (4.5~5.5V) 45mA 260mA ±5V ±0~100mA 78% 100μF
DPU01L-12 45mA 255mA ±12V ±0~42mA 78% 100μF
DPU01L-15 45mA 270mA ±15V ±0~33mA 75% 100μF
INPUT VOLTAGE RANGE L: 4.5 ~ 5.5Vdc , M: 10.8 ~ 13.2Vdc , N: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 500mA Slow-Blow Type for all models
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±3%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION 10%
SWITCHING FREQUENCY (Typ.) 24Vin: 75KHz, other: 100KHz
PROTECTION SHORT CIRCUIT 1 second max
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90(Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1500Khrs MIL-HDBK-217F (25)
DIMENSION 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton
24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton

Meanwell DPU01L Series Features

l  Low cost

l  3 years warranty

l  1.5KVDC l/O isolation

l  SIP6 package with industry standard pinout

l  Operating temperature range -40~+90℃

l  High efficiency up to 84%

l  Protection: Short circuit

l  Comply to BS EN/EN55032 radiated Class A without additional components

DPU01L Meanwell Power Supply 1W DC-DC Converter SIP Package DPU01L-05 DPU01L-12 DPU01L-15 low cost SPU01 DPU01 YCICT

Meanwell DPU01L Series Applications

l  Telecom/datacom system

l  Wireless network

l  Industrial control facility

l  Instrument

l  Analyzer

l  Detector

l  Data switch

DPU01L Meanwell Power Supply 1W DC-DC Converter SIP Package DPU01L-05 DPU01L-12 DPU01L-15 Dual Output SPU01 DPU01 YCICT

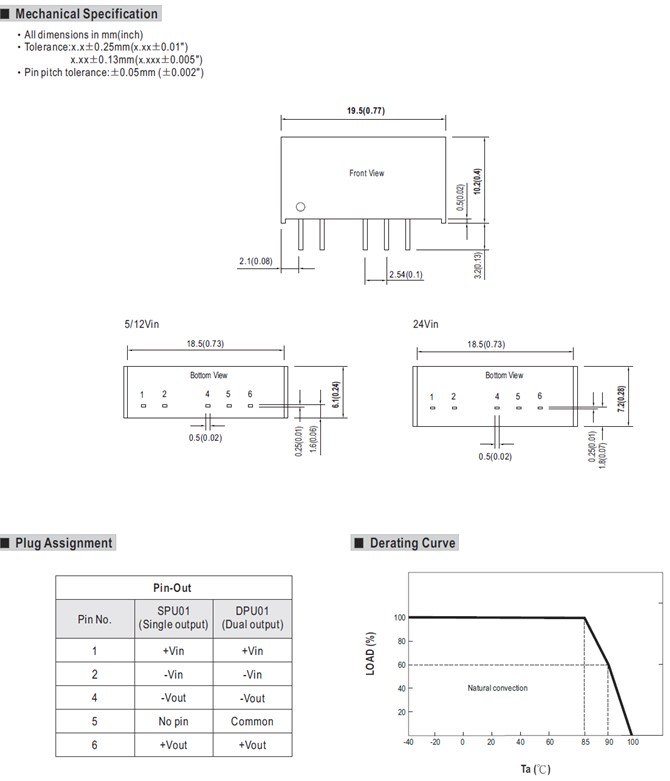

Meanwell DPU01L Series Mechanical Diagram

DPU01L Meanwell Power Supply 1W DC-DC Converter SIP DPU01L-05 DPU01L-12 DPU01L-15 Dual Output SPU01 DPU01 YCICT
