Meanwell 1W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DPRN01N
Brand Meanwell
Details

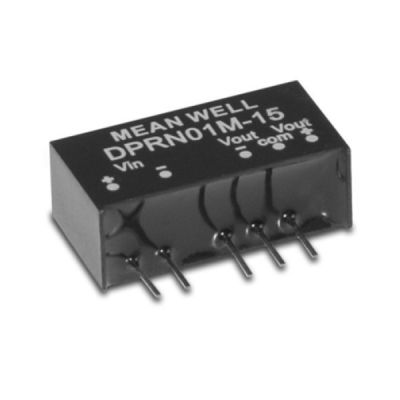

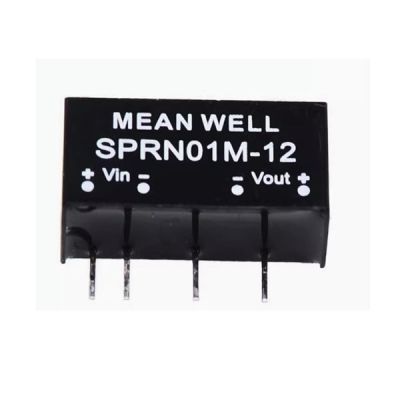

Meanwell DPRN01N Series is 1W isolated and regulated DC-DC converter. The unit stands out with module type and SIP6 package. At the same time, the main features are as following: international standard pins, wide working temperature range -40~+90℃, 1.5KVDCI/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without extra components, short circuit protection, etc. Furthermore, SPRN01&DPRN01 models account for different input voltage 5V/12V/24V/48V -5~+10%, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs. In order to continuously improve the competitiveness of DC-DC converter products, Meanwell redesigns a new generation of single-output SPRN01 Series and expands dual-output DPRN01 Series for old model. DPRN01 can be directly used as a substitute for DPR01, and the input/output pins of DPRN01 follow the original DPR01 Series. Considering its long lifespan, good quality and excellent performance, Meanwell DPRN01N Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed powerarchitecture, and so on.

DPRN01N Meanwell Power Supply 1W DC-DC Converter SIP Package DPRN01N-12 DPRN01N-15 Dual Output SPRN01 YCICT

Meanwell DPRN01N Series Encoding

DPRN Series Name S: Single Output
D: Dual Output
01 Rated Wattage
N Input Voltage (L:4.75-5.5Vdc, M:11.4-13.2Vdc, N: 22.8-26.4Vdc O: 45.6-52.8Vdc)
12 5V/12V/15Vdc ±12V/±15Vdc

Meanwell DPRN01N Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPRN01N-12 Normal 24V (22.8~26.4V) 10mA 63mA ±12V ±0~42mA 68% ±47μF
DPRN01N-15 11mA 63mA ±15V ±0~34mA 68% ±47μF
INPUT VOLTAGE RANGE L: 4.75~5.5Vdc, M: 11.4~13.2Vdc, N: 22.8~26.4Vdc, O: 45.6~52.8Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 9Vdc; 12Vin models: 18Vdc; 24Vin models: 30Vdc; 48Vin models: 60Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA
INTERNAL POWER DISSIPATION 600mW
OUTPUT VOLTAGE ACCURACY ±3.0%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION ±1.0%
LOAD REGULATION ±1.0%
SWITCHING FREQUENCY (Typ.) 110KHz
PROTECTION SHORT CIRCUIT SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max.
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.05% / (0 ~ 71)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 80pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class B
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1,1A/m
OTHERS MTBF 1000Khrs MIL-HDBK-217F (25)
DIMENSION 19.6*7.1*10.14mm (0.77*0.28*0.40 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton

Meanwell DPRN01N Series Features

l  1.5KVDC Il/O isolation

l  3 years warranty

l  Protection: Short circuit

l  Low cost

l  Operating temperature range -40~+90℃

l  Comply to BS EN/EN55032 radiated Class B without additional components

l  SIP6 package with industry standard pinout

DPRN01N Meanwell Power Supply 1W DC-DC Converter SIP6 Package DPRN01N-12 DPRN01N-15 Dual Output Low cost SPRN01 YCICT

Meanwell DPRN01N Series Applications

l  Analyzer

l  Detector

l  Instrument

l  Data switch

l  Wireless network

l  Industrial control facility

l  Telecom/Datacom system

DPRN01N Meanwell Power Supply 1W DC-DC Regulated Converter SIP6 Package DPRN01N-12 DPRN01N-15 Dual Output SPRN01 YCICT

Meanwell DPRN01N Series Mechanical Diagram
