Meanwell 6W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DPBW06G
Brand Meanwell
Details

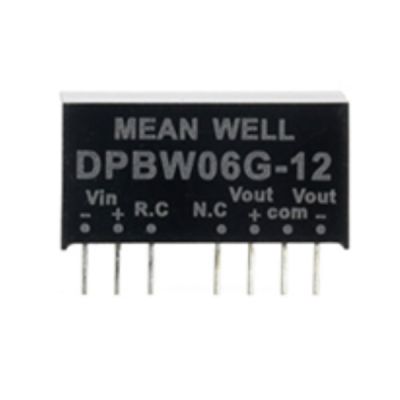

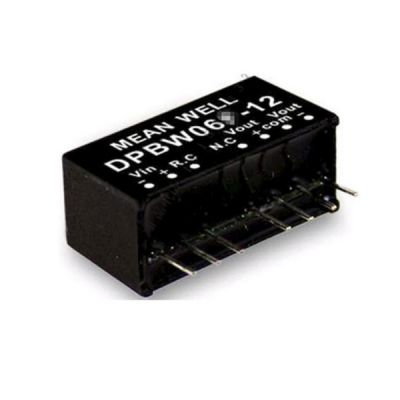

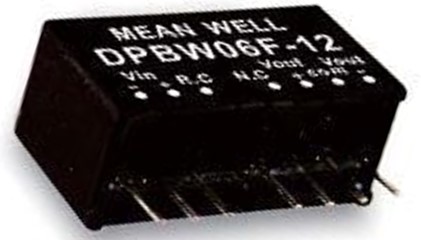

Meanwell DPBW06G Series is 6W isolated and regulated DC-DC converter. At the same time, the product stands out with module type and SIP8 package. The main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. In addition, DPBW06G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its long lifespan, good quality and high efficiency. Meanwell DPBW06G Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

DPBW06G Meanwell power supply 6W DC-DC Regulated Converter SIP DPBW06G-05 DPBW06G-12 DPBW06G-15 Dual Output SPBW06 YCICT

Meanwell DPBW06G Series Encoding

DPBW Series Name S: Single Output
D: Dual Output
06 Rated Wattage
G Input voltage (F: 9~36Vdc, G: 18~75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPBW06G Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPBW06G-05 48V (18~75V) 4mA 150mA ±5V ±0~600mA 85% 140μF
DPBW06G-12 3mA 145mA ±12V ±0~250mA 89% 660μF
DPBW06G-15 4mA 145mA ±15V ±0~200mA 88% 220μF
INPUT VOLTAGE RANGE F:9~36Vdc, G:18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models: 50Vdc, 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 6W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.2%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 580KH
PROTECTION SHORT CIRCUIT Protection type: Continuous, automatic recovery
OVERLOAD Protection type: Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~65)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 50pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1850Khrs MIL-HDBK-217F (25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated
PACKING 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPBW06G Series Features

l  SIP8 package with industry standard pinout

l  Protections: Short circuit (Continuous)/Overload

l  4:1 ultrawide input range

l  Operating temperature range -40~+85℃

l  No minimum load required

l  Remote ON/OFF control

l  1.5KVDC I/O isolation

l  High efficiency up to 89%

l  3 years warranty

DPBW06G Meanwell power supply 6W DC-DC Converter SIP Package DPBW06G-05 DPBW06G-12 DPBW06G-15 Dual Output SPBW06 YCICT

Meanwell DPBW06G Series Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Wireless network

l  Industrial control facility

l  Telecom/Datacom system

DPBW06G Meanwell power supply 6W DC-DC Converter SIP8 Package DPBW06G-05 DPBW06G-12 DPBW06G-15 Dual Output SPBW06 YCICT

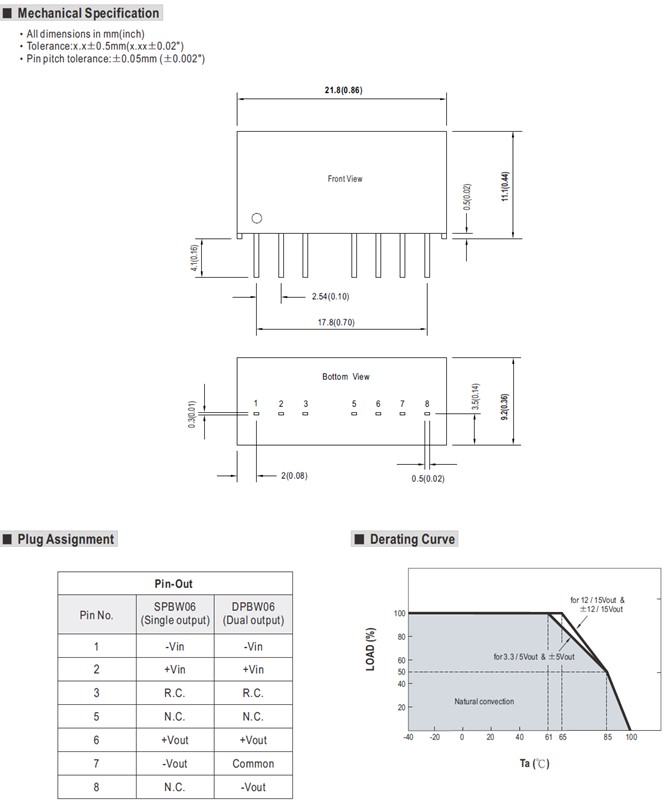

Meanwell DPBW06G Series Mechanical Diagram

DPBW06G Meanwell power supply 6W DC-DC Regulated Converter SIP8 Package DPBW06G-05 DPBW06G-12 DPBW06G-15 SPBW06 YCICT
