DPBW06G-12

$6.95

Meanwell 6W SIP Package DC-DC Regulated Converter with 3mA145mA±12V±0~250mA

- +
Availability:In stock
SKU Meanwell DPBW06G-12
Brand Meanwell
Details

Meanwell DPBW06G-12 is 6W isolated and regulated DC-DC converter with 3mA145mA±12V±0~250mA. The item highlights module type and SIP8 package. At the same time, the main features are as following: international standard pins, high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. Apart from them, DPBW06G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. In view of its long lifespan, good quality and high efficiency. Meanwell DPBW06G-12 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

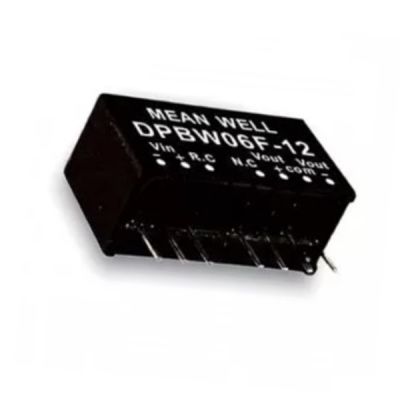

DPBW06G-12 Meanwell power supply 6W DC-DC Converter SIP Package DPBW06G DPBW06G-05 DPBW06G-15 Dual Output SPBW06 YCICT

Meanwell DPBW06G-12 Encoding

DPBW Series Name S: Single Output
D: Dual Output
06 Rated Wattage
G Input voltage (F: 9~36Vdc, G: 18~75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPBW06G-12 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPBW06G-05 48V (18~75V) 4mA 150mA ±5V ±0~600mA 85% 140μF
DPBW06G-12 3mA 145mA ±12V ±0~250mA 89% 660μF
DPBW06G-15 4mA 145mA ±15V ±0~200mA 88% 220μF
INPUT VOLTAGE RANGE F:9~36Vdc, G:18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models: 50Vdc, 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 6W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.2%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 580KH
PROTECTION SHORT CIRCUIT Protection type: Continuous, automatic recovery
OVERLOAD Protection type: Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~65)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 50pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1850Khrs MIL-HDBK-217F (25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated
PACKING 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPBW06G-12 Features

l  SIP8 package with industry standard pinout

l  Protections: Short circuit (Continuous)/Overload

l  Operating temperature range -40~+85℃

l  4:1 ultrawide input range

l  No minimum load required

l  High efficiency up to 89%

l  Remote ON/OFF control

l  1.5KVDC I/O isolation

l  3 years warranty

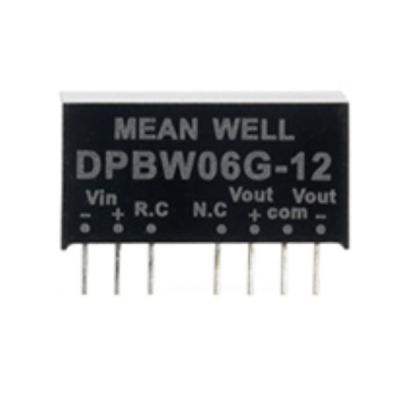

DPBW06G-12 Meanwell power supply 6W DC-DC Regulated Converter DPBW06G DPBW06G-05 DPBW06G-15 Dual Output SPBW06 YCICT

Meanwell DPBW06G-12 Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Wireless network

l  Industrial control facility

l  Telecom/Datacom system

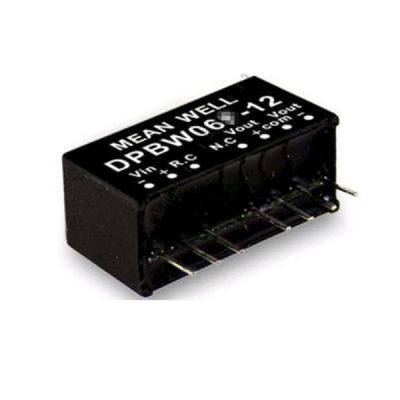

DPBW06G-12 Meanwell power supply 6W DC-DC Regulated Converter SIP DPBW06G DPBW06G-05 DPBW06G-15 Dual Output SPBW06 YCICT

Meanwell DPBW06G-12 Mechanical Diagram

DPBW06G-12 Meanwell power supply 6W DC-DC Converter SIP8 DPBW06G DPBW06G-05 DPBW06G-15 Dual Output SPBW06 YCICT
