Meanwell 3W SIP Package DC-DC Regulated Converter with 13mA75mA±15V±0~100mA

- +
Availability:In stock
SKU Meanwell DPBW03G-15
Brand Meanwell
Details

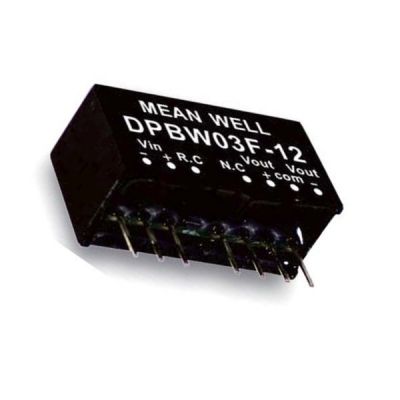

Meanwell DPBW03G-15 is 3W isolated and regulated DC-DC converter with 13mA75mA±15V±0~100mA. Meanwhile, the item features module type and SIP8 package. The main highlights are as following: international standard pins, high efficiency up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with extra components, continuous-mode short circuit protection, etc. Apart from them, DPBW03G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Thanks to its good quality, high efficiency and excellent performance, Meanwell DPBW03G-15 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

DPBW03G-15 Meanwell power supply 3W DC-DC Regulated Converter SIP8 DPBW03G DPBW03G-05 DPBW03G-12 low cost SPBW03 YCICT

Meanwell DPBW03G-15 Encoding

DPBW Series Name S: Single Output
D: Dual Output
3 Rated Wattage
G Input voltage (F: 9~36Vdc, G: 18~75Vdc)
15 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPBW03G-15 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPBW03G-05 48V (18~75V) 5mA 76mA ±5V ±0~300mA 82% 100μF
DPBW03G-12 13mA 75mA ±12V ±0~125mA 83% 470μF
DPBW03G-15 13mA 75mA ±15V ±0~100mA 83% 100μF
INPUT VOLTAGE RANGE F: 9~36Vdc, G: 18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models: 50Vdc, 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 3W
RIPPLE & NOISE 50mVp-p
LINE REGULATION 0.5%
LOAD REGULATION Single output models: ±0.5%, Dual output models: ±1%
SWITCHING FREQUENCY (Typ.) 100KH
PROTECTION SHORT CIRCUIT Protection type: Continuous, automatic recovery
OVERLOAD Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin: 7.5Vdc; 48Vin: 15.5Vdc
Shutdown voltage: 24Vin: 6Vdc; 48Vin: 12Vdc
FUNCTION REMOTE CONTROL 24Vin: 6Vdc; 48Vin: 12VdcaPower ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class A/B with external components
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPBW03G-15 Features

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

l  Comply to BS EN/EN55032 radiated Class A/B with additional components

l  4:1 ultrawide input range

l  High efficiency up to 85%

l  No minimum load required

l  Remote ON/OFF control

l  1.5KVDC I/O isolation

l  Operating temperature range -40~+85℃

l  SIP8 package with industry standard pinout

l  3 years warranty

DPBW03G-15 Meanwell power supply 3W DC-DC Regulated Converter SIP8 package DPBW03G DPBW03G-05 DPBW03G-12 SPBW03 YCICT

Meanwell DPBW03G-15 Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

DPBW03G-15 Meanwell power supply 3W DC-DC Regulated Converter SIP package DPBW03G DPBW03G-05 DPBW03G-12 SPBW03 YCICT

Meanwell DPBW03G-15 Mechanical Diagram
