Meanwell 9W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DPB09C
Brand Meanwell
Details

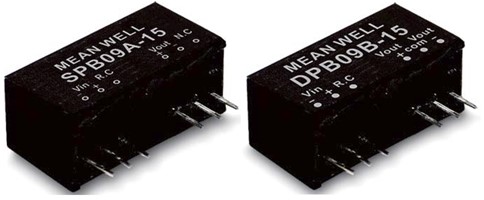

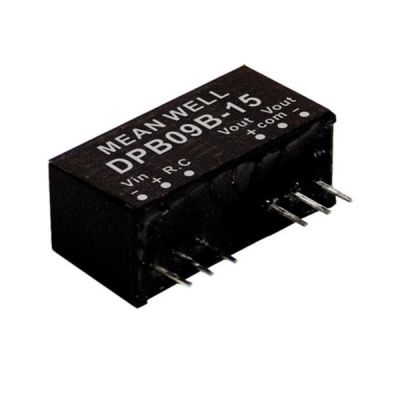

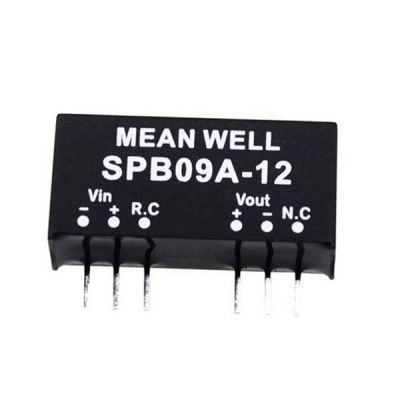

Meanwell DPB09C Series is 9W isolated and regulated DC-DC converter. The item stands out with module type and SIP8 package. Meanwhile, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. What's more, DPB09C models account for different input voltage 9~18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/1 5V/24V for single output and ±5V/±12V/±15V for dual outputs. In response to the increasing demand for miniaturized DC/DC in the system, Meanwell launched 9W single output SPB09, and dual output DPB09 series after 1~6W SIP single-row PIN wide voltage input DC/DC converter. Considering its longevity, good quality and high performance. Meanwell DPB09C Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

DPB09C Meanwell Power Supply 9W DC-DC Converter DPB09C-05 DPB09C-12 DPB09C-15 SPB09 Dual Output 2:1 input range YCICT

Meanwell DPB09C Series Encoding

DPB Series Name S: Single Output
D: Dual Output
09 Rated Wattage
C Input voltage (A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc)
12 Output Voltage (3.3/5/12/15/24Vdc ±5V ±12V ±15Vdc)

Meanwell DPB09C Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPB09C-05 Normal 48V (36~75V) 6mA 198mA ±5V ±0~800mA 84% 470μF
DPB09C-12 8mA 216mA ±12V ±0~375mA 87% 100μF
DPB09C-15 8mA 216mA ±15V ±0~300mA 87% 470μF
INPUT VOLTAGE RANGE A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 9W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.5%
LOAD REGULATION Single output models:±0.5% (±1% for 3.3Vout model), Dual output models:±0.5%
SWITCHING FREQUENCY (Typ.) 400KH
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120~250% rated output power
Protection type : Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +115 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~70)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 275Khrs MIL-HDBK-217F (25)
DIMENSION 24*9.6*11.2mm (0.94*0.38*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5g; 21pcs/per tube, 2100pcs/100 tube/per carton

Meanwell DPB09C Series Features

l  SIP8 package with industry standard pinout

l  Operating temperature range -40~+90℃

l  Remote ON/OFF control

l  3 years warranty

l  High efficiency up to 89%

l  2:1 wide input range

l  No minimum load required

l  9V model available (optional)

l  1.5KVDC I/O isolation

l  Protections: Short circuit (Continuous)/Overload/Input under voltage
