DPB09A-15
9.29
Details

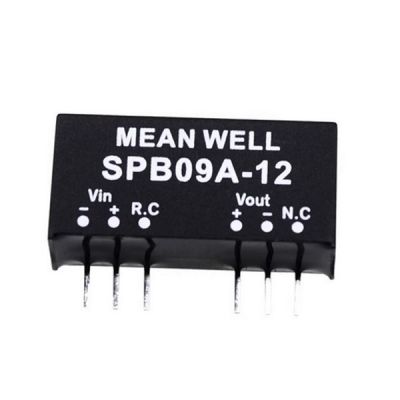

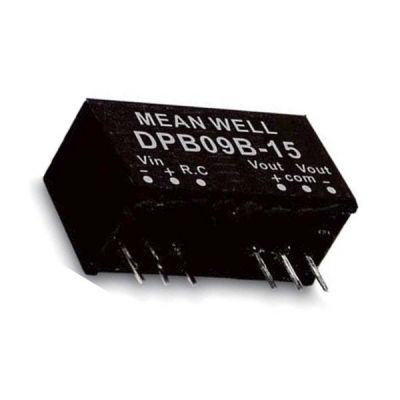

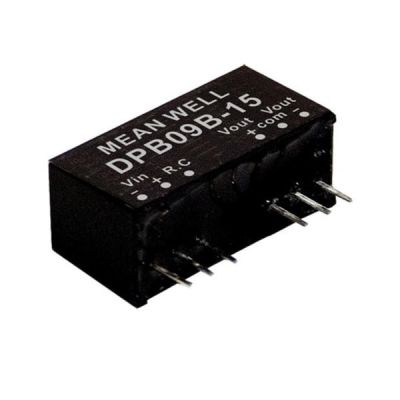

Meanwell DPB09A-15 is 9W isolated and regulated DC-DC converter with 20mA862mA±15V±0~300mA. At the same time, the model features module type and SIP8 package. The main highlights are as following: international standard pins, high efficiency up to 89%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. Apart from them, DPB09A models account for different input voltage 9~18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/1 5V/24V for single output and ±5V/±12V/±15V for dual outputs. In response to the increasing demand for miniaturized DC/DC in the system, Meanwell launched 9W single output SPB09, and dual output DPB09 series after 1~6W SIP single-row PIN wide voltage input DC/DC converter. In view of its longevity, good quality and high performance. Meanwell DPB09A-15 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DPB09A-15 Encoding
| DPB | Series Name | S: Single Output |
| D: Dual Output | ||
| 09 | Rated Wattage | |
| A | Input voltage (A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc) | |
| 15 | Output Voltage (3.3/5/12/15/24Vdc ±5V ±12V ±15Vdc) | |
Meanwell DPB09A-15 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DPB09A-05 | Normal 12V (9~18V) | 15mA | 784mA | ±5V | ±0~800mA | 85% | 470μF |
| DPB09A-12 | 22mA | 862mA | ±12V | ±0~375mA | 88% | 100μF | |
| DPB09A-15 | 20mA | 862mA | ±15V | ±0~300mA | 88% | 47μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc | |||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 9W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | 0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5% (±1% for 3.3Vout model), Dual output models:±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 400KH | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +115℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~70℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air, Level 2±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 2, 0.5KV at power | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 275Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 24*9.6*11.2mm (0.94*0.38*0.44 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 5g; 21pcs/per tube, 2100pcs/100 tube/per carton | ||||||
Meanwell DPB09A-15 Features
l SIP8 package with industry standard pinout
l 3 years warranty
l 2:1 wide input range
l High efficiency up to 89%
l 1.5KVDC I/O isolation
l Remote ON/OFF control
l 9V model available (optional)
l No minimum load required
l Operating temperature range -40~+90℃
l Protections: Short circuit (Continuous)/Overload/Input under voltage
Meanwell DPB09A-15 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Telecom/Datacom system
l Wireless network
l Industrial control facility
Meanwell DPB09A-15 Mechanical Diagram
