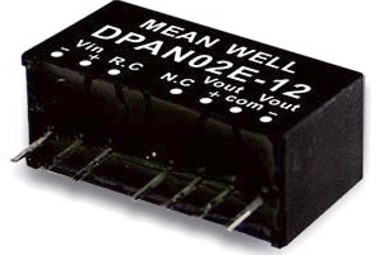

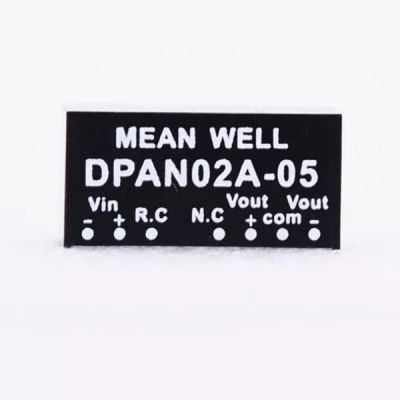

Meanwell 2W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DPAN02E
Brand Meanwell
Details

Meanwell DPAN02E Series is 2W isolated and regulated DC- DC converter. The item outstands module type and SIP8 package. Meanwhile it features international standard pins, high efficiency reaching up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without extra components, overload and continuous-mode short circuit protection, etc. What's more, DPAN02E models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its good quality, high efficiency and excellent performance, Meanwell DPAN02E Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture and so on.

DPAN02E Meanwell 2W DC-DC Converter SIP8 package DPAN02E-05 DPAN02E-12 DPAN02E-15 2:1 wide input range SPAN02 YCICT

Meanwell DPAN02E Series Encoding

SPAN Series Name S: Single Output
D: Dual Output
2 Rated Wattage
E Input voltage (E: 4.5~9Vdc, A: 9~18Vdc, B: 18-36Cdc, C: 36-75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPAN02E Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPAN02E-05   600mA 519mA ±5V ±0~200mA 78% 200μF
DPAN02E-12 600mA 504mA ±12V ±0~83mA 80% 83μF
DPAN02E-15 600mA 503mA ±15V ±0~67mA 80% 67μF
INPUT VOLTAGE RANGE E: 4.5~9Vdc, A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 15Vdc; 12Vin models: 25Vdc; 24Vin models: 50Vdc; 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 1000mA Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24V and 48Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 2W
RIPPLE & NOISE 75mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.2Vdc; 12Vin:7.3Vdc; 24Vin: 15.5Vdc; 48Vin:31Vdc
Shutdown voltage: 5Vin:3Vdc; 12Vin:5.8Vdc; 24Vin: 12Vdc; 48Vin: 24Vdc
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin<0.8Vdc or open circuit; Power OFF: R.C.~-Vin>4~15Vdc
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 2500Khrs MIL-HDBK-217F(25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.7g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPAN02E Series Features

l  3 years warranty

l  2:1 wide input range

l  No minimum load required

l  High efficiency up to 85%

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  Protections: Short circuit (Continuous)/Overload

l  Operating temperature range -40~+90℃

l  SIP8 package with industry standard pinout

l  Comply to BS EN/EN55032 radiated Class A without additional components

DPAN02E Meanwell 2W DC-DC Converter SIP8 DPAN02E-05 DPAN02E-12 DPAN02E-15 2:1 wide input range low cost SPAN02 YCICT

Meanwell DPAN02E Series Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Telecom/datacom system

l  Wireless network

l  Industrial control facility

DPAN02E Meanwell 2W DC-DC Converter SIP package DPAN02E-05 DPAN02E-12 DPAN02E-15 2:1 wide input range low cost YCICT

Meanwell DPAN02E Series Mechanical Diagram

DPAN02E Meanwell 2W DC-DC Converter SIP8 package DPAN02E-05 DPAN02E-12 DPAN02E-15 2:1 wide input range low cost YCICT
