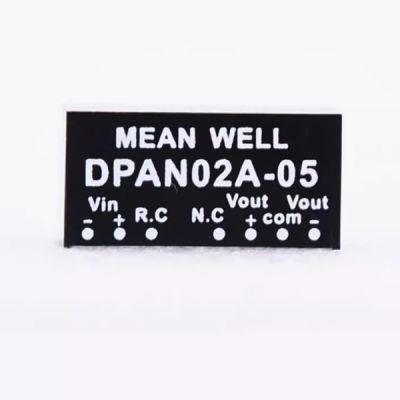

Meanwell 2W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DPAN02A
Brand Meanwell
Details

Meanwell DPAN02A Series is 2W isolated and regulated DC- DC converter. The unit highlights module type and SIP8 package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without extra components, overload and continuous-mode short circuit protection, etc. Apart from them, DPAN02A models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its good quality, high efficiency and excellent performance, Meanwell DPAN02A Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture and so on.

DPAN02A Meanwell Power Supply 2W DC-DC Regulated Converter DPAN02A-05 DPAN02A-12 DPAN02A-15 dual output low cost YCICT

Meanwell DPAN02A Series Encoding

SPAN Series Name S: Single Output
D: Dual Output
2 Rated Wattage
A Input voltage (E: 4.5~9Vdc, A: 9~18Vdc, B: 18-36Cdc, C: 36-75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPAN02A Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPAN02A-05  12V (9-18V) 31mA 211mA ±5V ±0~200mA 79% 2000μF
DPAN02A-12 31mA 202mA ±12V ±0~83mA 82% 83μF
DPAN02A-15 31mA 202mA ±15V ±0~67mA 83% 67μF
INPUT VOLTAGE RANGE E: 4.5~9Vdc, A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 15Vdc; 12Vin models: 25Vdc; 24Vin models: 50Vdc; 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 1000mA Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24V and 48Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 2W
RIPPLE & NOISE 75mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.2Vdc; 12Vin:7.3Vdc; 24Vin: 15.5Vdc; 48Vin:31Vdc
Shutdown voltage: 5Vin:3Vdc; 12Vin:5.8Vdc; 24Vin: 12Vdc; 48Vin: 24Vdc
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin<0.8Vdc or open circuit; Power OFF: R.C.~-Vin>4~15Vdc
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 2500Khrs MIL-HDBK-217F(25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.7g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPAN02A Series Features

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  SIP8 package with industry standard pinout

l  Protections: Short circuit (Continuous)/Overload

l  Operating temperature range -40~+90℃

l  No minimum load required

l  2:1 wide input range

l  3 years warranty

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  High efficiency up to 85%

DPAN02A Meanwell Power Supply 2W DC-DC Regulated Converter SIP8 DPAN02A-05 DPAN02A-12 DPAN02A-15 dual output YCICT

Meanwell DPAN02A Series Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

DPAN02A Meanwell Power Supply 2W DC-DC Regulated Converter SIP8 Package DPAN02A-05 DPAN02A-12 DPAN02A-15 SPAN02A YCICT

Meanwell DPAN02A Series Mechanical Diagram
