DPAN02A-12
5.78

DPAN02A-12

$5.78

Meanwell 2W SIP Package DC-DC Regulated Converter with 31mA202mA±12V±0~83mA

- +
Availability:In stock
SKU Meanwell DPAN02A-12
Brand Meanwell
Details

Meanwell DPAN02A-12 is 2W isolated and regulated DC-DC converter with 31mA202mA±12V±0~83mA. The product stands out with module type and SIP8 package. At the same time, the main features are as following: international standard pins, high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without extra components, overload and continuous-mode short circuit protection, etc. What's more, DPAN02A models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Thanks to its good quality, high efficiency and excellent performance, Meanwell DPAN02A-12 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture and so on.

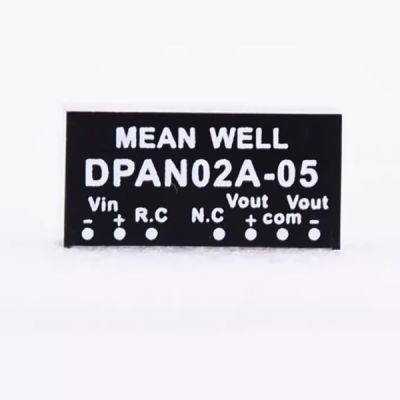

DPAN02A-12 Meanwell Power Supply 2W DC-DC Regulated Converter SIP package DPAN02A DPAN02A-05 DPAN02A-15 SPAN02A YCICT

Meanwell DPAN02A-12 Encoding

SPAN Series Name S: Single Output
D: Dual Output
2 Rated Wattage
A Input voltage (E: 4.5~9Vdc, A: 9~18Vdc, B: 18-36Cdc, C: 36-75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell DPAN02A-12 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DPAN02A-05  12V (9-18V) 31mA 211mA ±5V ±0~200mA 79% 2000μF
DPAN02A-12 31mA 202mA ±12V ±0~83mA 82% 83μF
DPAN02A-15 31mA 202mA ±15V ±0~67mA 83% 67μF
INPUT VOLTAGE RANGE E: 4.5~9Vdc, A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 15Vdc; 12Vin models: 25Vdc; 24Vin models: 50Vdc; 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 1000mA Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24V and 48Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 2W
RIPPLE & NOISE 75mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.2Vdc; 12Vin:7.3Vdc; 24Vin: 15.5Vdc; 48Vin:31Vdc
Shutdown voltage: 5Vin:3Vdc; 12Vin:5.8Vdc; 24Vin: 12Vdc; 48Vin: 24Vdc
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin<0.8Vdc or open circuit; Power OFF: R.C.~-Vin>4~15Vdc
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 2500Khrs MIL-HDBK-217F(25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.7g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell DPAN02A-12 Features

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  Protections: Short circuit (Continuous)/Overload

l  Operating temperature range -40~+90℃

l  No minimum load required

l  SIP8 package with industry standard pinout

l  2:1 wide input range

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  High efficiency up to 85%

l  3 years warranty

DPAN02A-12 Meanwell Power Supply 2W DC-DC Regulated Converter SIP DPAN02A DPAN02A-05 DPAN02A-15 low cost SPAN02A YCICT

Meanwell DPAN02A-12 Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

DPAN02A-12 Meanwell Power Supply 2W DC-DC Regulated Converter DPAN02A DPAN02A-05 DPAN02A-15 low cost SPAN02A YCICT

Meanwell DPAN02A-12 Mechanical Diagram
