DLP-04R
25.26
Details

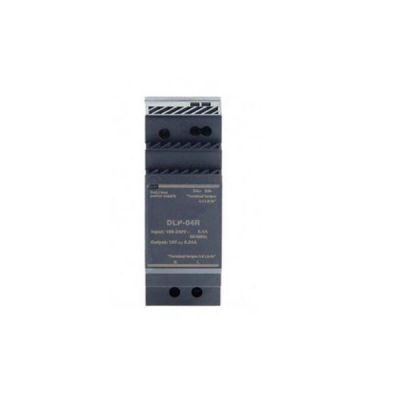

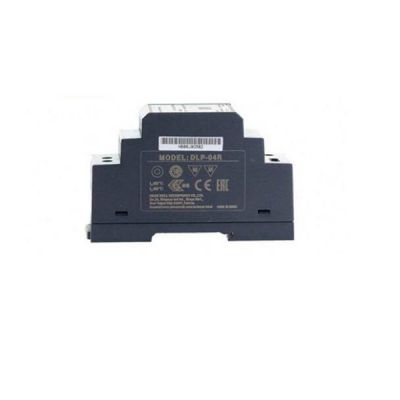

Meanwell DLP-04R is DALI Bus Power Supply with 16V15.3-18.7V240mA240mA250mA3.84W50 mVp-p250ms, 50ms/115VAC,230VAC. The product features high efficiency and small size. At the same time, it provides 240mA for DALI control gears and DALI devices without power supply circuits. Additionally, DLP-04R could work under -20℃~+60℃ wide temperature, permitting the product to fit all kinds of applications. This model is perfectly suitable for power up any products labeled with the DALI trademark. Based on over 35 years of industrial power supply experience, Meanwell DLP-04R is engineered to be a reliable and safe solution for DALI bus environment.
Meanwell DLP-04 Series Encoding
| DLP | Series Name |
| 4 | Rated Wattage |
| R (shape) | R: Rail type |
| L: Linear type |
Meanwell DLP-04R Specifications
| Model | DLP-04R | |
| OUTPUT | RATED DC VOLTAGE | 16V |
| DC VOLTAGE RANGE | 15.3-18.7V | |
| RATED CURRENT | 240mA | |
| GUARANTEED SUPPLY CURRENT | 240mA | |
| MAXIMUM SUPPLY CURRENT | 250mA | |
| RATED POWER | 3.84W | |
| RIPPLE & NOISE (max.) | 50 mVp-p | |
| SETUP, RISE TIME | 250ms, 50ms/115VAC,230VAC | |
| HOLD UP TIME (Typ.) | 70ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Typ.) | 0.1A/115VAC 0.06A/230VAC; Model label: 0.4A/100-240VAC | |
| INRUSH CURRENT (Typ.) | COLD START 20A/230VAC | |
| LEAKAGE CURRENT | 0.5mA / 240VAC | |
| NO LOAD POWER CONSUMPTION | Typ. 0.5W | |
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 23.6 ~ 27V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| FUNCTION | LED DISPLAY | Green LED: Normal operation |
| Yellow LED: Bus Communication | ||
| Red LED: Bus short detection | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | BS EN/EN61347-1, BS EN/EN61347-2-11, EAC TP TC 004 approved |
| DALI STANDARDS | Compliance to IEC62386-101 | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61547, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, light industry level, EAC TP TC 020 | |
| Others | MTBF | 7018.6K hrs min. Telcordia SR-332 (Bellcore) ; 625.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 35*90*54.5mm (W*H*D) | |
| PACKING | 0.087Kg;96 pcs/9.5Kg/1.04CUFT | |
Meanwell DLP-04R Features
l 3 years warranty
l Isolation class ll
l Compact size with 2SU (35mm) width (type R)
l Universal AC input/Full range
l Withstand 300VAC Surge input for 5 seconds
l No load power consumption<0. 5W (type L)
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l 3 color LED for status indicator (type R)

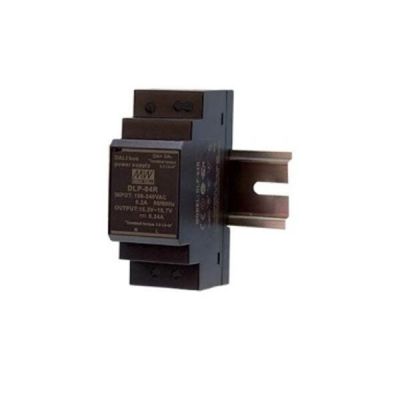

l Installed on DIN rail TS-35/7 .5 or 15 (type R)
l 100% full load burn-in test
Meanwell DLP-04R Applications
l DALI Bus
l DALI Bus Powered Units
Meanwell DLP-04R Mechanical Diagram
