DLC03C
8.69
Details

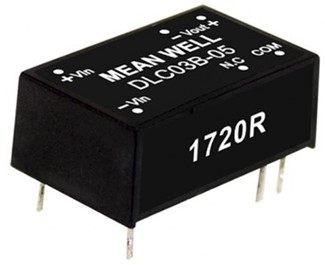

Meanwell DLC03C Series is 3W isolated and regulated DC-DC converter. The product outstands module type and DIP16 package. The main features are as following: international standard pins, high efficiency reaching up to 82%, wide working temperature range-40~+85℃, 1.5KVDC I/P-O/P isolation voltage, the compliance to BS EN/EN55032 radiated Class B without extra components, continuous-mode short circuit protection, etc. Apart from them, the SLC03 and DLC03 models account for different input voltage, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage,5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its long lifespan, high reliability, and excellent quality, Meanwell DLC03C Series is suitable for all kinds ofsystems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DLC03C Series Encoding
| DLC | Series Name | S: Single Output |
| D: Dual Output | ||
| 03 | Rated Wattage | |
| C | Input Voltage (A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc) | |
| 12 | Output Voltage (5/12/15Vdc, ±5V/±12V/±15Vdc) | |
Meanwell DLC03C Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DLC03C-05 | 48V (36~75V) | 10mA | 79mA | ±5V | ±0-300mA | 80% | 220μF |
| DLC03C-12 | 10mA | 78mA | ±12V | ±0-125mA | 80% | 220μF | |
| DLC03C-15 | 10mA | 78mA | ±15V | ±0~100mA | 80% | 220μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 12Vin models: 25Vdc ; 24Vin models: 50V; 48Vin models: 100Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION | Fuse recommended. 12Vin models: 1A Slow-Blow Type, 24Vin models: 0.5A Slow-Blow Type, 48Vin models: 200mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 1000mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 150~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage | 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc | |||||
| Shutdown voltage | 12Vin: 7Vdc, 24Vin: 14Vdc, 48Vin: 30Vdc | ||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +105℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0 ~ 80℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3 ~ 5sec./265℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 300Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 22.1*13.8*8.55mm (0.87*0.54*0.34 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 4.5g ; 36pcs/per tube, 1800pcs/50 tube/per carton | ||||||
Meanwell DLC03C Series Features
l Operating temperature range -40~+85℃
l DIP16 package with industry standard pinout
l No minimum load required
l High efficiency up to 82%
l 3 years warranty
l 2:1 wide input range
l 1.5KVDC I/O isolation
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l Comply to BS EN/EN55032 radiated Class B without additional components
Meanwell DLC03C Series Applications
l Analyzer
l Detector
l Data switch
l Instrument
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell DLC03C Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
