DLC03C-12

$8.73

Meanwell 3W DIP Package DC-DC Regulated Converter with 10mA78mA±12V±0-125mA

- +
Availability:In stock
SKU Meanwell DLC03C-12
Brand Meanwell
Details

Meanwell DLC03C-12 is 3W isolated DC-DC converter with 10mA78mA±12V±0-125mA. The unit highlights regulated, module type and DIP16 package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 82%, wide working temperature range-40~+85℃, 1.5KVDC I/P-O/P isolation voltage, the compliance to BS EN/EN55032 radiated Class B without extra components, continuous-mode short circuit protection, etc. What's more, the SLC03 and DLC03 models account for different input voltage, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage,5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. In view of its long lifespan, high reliability, and excellent quality, Meanwell DLC03C-12 is suitable for all kinds ofsystems such as industrial control, telecommunication field, distributed power architecture, and so on.

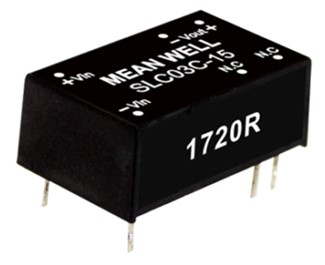

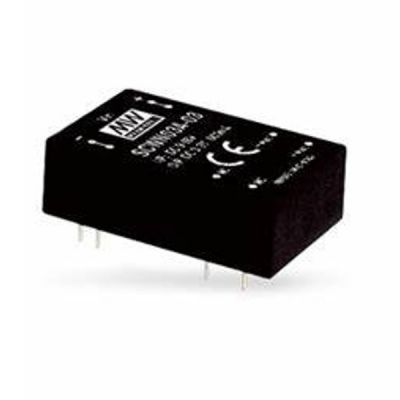

DLC03C-12 Meanwell Power Supply 3W DC-DC Regulated Converter DLC03C DLC03C-05 DLC03C-15 DIP Package low cost YCICT

Meanwell DLC03C-12 Encoding

DLC Series Name S: Single Output
D: Dual Output
03 Rated Wattage
C Input Voltage (A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc)
12 Output Voltage (5/12/15Vdc, ±5V/±12V/±15Vdc)

Meanwell DLC03C-12 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DLC03C-05 48V (36~75V) 10mA 79mA ±5V ±0-300mA 80% 220μF
DLC03C-12 10mA 78mA ±12V ±0-125mA 80% 220μF
DLC03C-15 10mA 78mA ±15V ±0~100mA 80% 220μF
INPUT VOLTAGE RANGE A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc
SURGE VOLTAGE (100ms max.) 12Vin models: 25Vdc ; 24Vin models: 50V; 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION Fuse recommended. 12Vin models: 1A Slow-Blow Type, 24Vin models: 0.5A Slow-Blow Type, 48Vin models: 200mA Slow-Blow Type
INTERNAL POWER DISSIPATION 1000mW
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 3W
RIPPLE & NOISE 50mVp-p
LINE REGULATION ±0.2%
LOAD REGULATION ±0.5%
SWITCHING FREQUENCY (Typ.) 100KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 150~250% rated output power
Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
Shutdown voltage 12Vin: 7Vdc, 24Vin: 14Vdc, 48Vin: 30Vdc
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +105, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0 ~ 80)
SOLDERING TEMPERATURE 1.5mm from case of 3 ~ 5sec./265max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 80pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class B
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 300Khrs min. MIL-HDBK-217F(25)
DIMENSION 22.1*13.8*8.55mm (0.87*0.54*0.34 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 4.5g ; 36pcs/per tube, 1800pcs/50 tube/per carton

Meanwell DLC03C-12 Features

l  3 years warranty

l  1.5KVDC I/O isolation

l  Operating temperature range -40~+85℃

l  DIP16 package with industry standard pinout

l  No minimum load required

l  High efficiency up to 82%

l  2:1 wide input range

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

l  Comply to BS EN/EN55032 radiated Class B without additional components

DLC03C-12 Meanwell Power Supply 3W DC-DC Regulated Converter DLC03C DLC03C-05 DLC03C-15 DIP Package module type YCICT

Meanwell DLC03C-12 Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

DLC03C-12 Meanwell Power Supply 3W DC-DC Converter DLC03C DLC03C-05 DLC03C-15 DIP Package module type low cost YCICT

Meanwell DLC03C-12 Mechanical Diagram

DLC03C-12 Meanwell Power Supply 3W DC-DC Converter DLC03C DLC03C-05 DLC03C-15 DIP Package module type SLC03 YCICT
