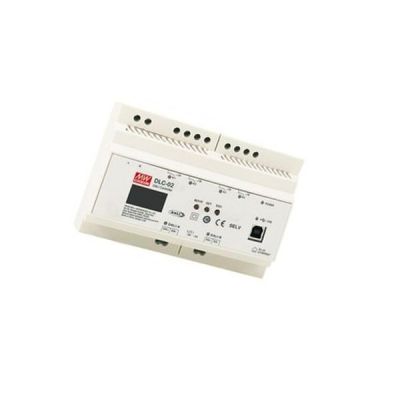

DLC-02
26.58
Details
Meanwell DLC-02 is a multi-master controller to obtain the regulation of the DALI-2 system from DALI input devices and control gears to make a DALI lighting system. Devices in the DALI bus can be scan, configure and setting through the DLC-02 software. At the same time, DLC-02 supports up to 128 DALI participants via two independent DALI Bus. The DALI Bus power supply comes directly within DLC-02, so no additional DALI power supply is required. This device comes in 4 built-in relays, providing switching possibilities for home applications and non-dimmable lighting. Additionally, DLC-02 is also integrated with several features. The Effect function allows users to customize a series of events and function of input devices. Thanks to an embedded battery, time is memorized even AC is lost. The clock of DLC-02 can be synchronized in real-time. Therefore, the regular events and actions can be scheduled by the Timer function accordingly. What’s more, the built-in Modbus TCP/IP protocol is very flexible to adapt with other manufacturers' control software.
Meanwell DLC-02 Encoding
| DLC | Series Name | |
| 2 | Number of output Channels | |
Meanwell DLC-02 Specifications
| Model | DLC-02 | |
| OUTPUT | BUS VOLTAGE | Built-in DALI bus power supply; Voltage range : 2x16V |
| GUARANTEED SUPPLY CURRENT | 2x240mA | |
| MAXIMUM SUPPLY CURRENT | 2x250mA | |
| RATED POWER | 7.68W | |
| SETUP,RISE TIME | 250ms,50ms/115VAC,230VAC | |
| INPUT | VOLTAGE RANGE | 100~305VAC, 140~430VDC,(class Ⅱ) |
| FREQUENCY RANGE | 47~63Hz | |
| AC CURRENT(Typ.) | 0.5A/115VAC 0.25A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 45A/230VAC | |
| PROTECTION | SHORT CIRCUIT | Short circuit delay 0.7S shutdown,Restart period 5S, Retry time 0.7S |
| FUNCTION | USB INTERFACE | 1 USB slave connector , type-B |
| DISPLAY | OLED display for easy operation | |
| INDICATOR | 2*LED indicators for BUS voltage; 4*LED indicators for relay ;1*LED indicators for power on | |
| GENERIC SETTING | Three buttons( MOVE, SET,ESC) on the front panel to set and view settings | |
| Ethernet | Control via Modbus TCP/IP protocol (RJ-45) | |
| Relay | 10A/125VAC ,5A/250VAC | |
| ENVIRONMENT | WORKING TEMP | -25 ~ +45℃ |
| WORKING HUMIDITY | 5 ~ 93% RH non-condensing; comply with climatic EN50090-2-2 | |
| STORAGE TEMP., HUMIDITY | -25 ~ +70℃, 10 ~ 95% RH non-condensing | |
| VIBRATION | 5 ~ 150Hz, 2G 12min./1cycle, each along X, Y, Z axes according to EN50090-2-2 | |
| SAFETY&EMC | SAFETY STANDARDS | Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11 |
| DALI STANDARDS | Compliance to BS EN/EN62368-101,BS EN/EN62386-103 | |
| EMC EMISSION | Compliance to BS EN/EN55015,Harmonic current class A | |
| EMC IMMUNITY | Compliance to BS EN/EN61547 | |
| Others | MTBF | 618.9K hrs min. Telcordia SR-332 (Bellcore) ; 190.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 144*90*58.3mm (L*W*H) | |
| PACKING | 0.43Kg; 30pcs/13.9Kg/ 1.30CUFT | |
| DIN RAIL MOUNTING | 35 mm rail;8 units wide | |
| ENCLOSURE MATERIAL | ABS-V0 | |
Meanwell DLC-02 Features
l DALI-2 multi-master controller
l 2 independent DALI Bus channels with built in DALI power supply (up to 250mA per bus)
l Connect up to 2X 64 DALI control gears and 2X12 input devices· Max 16 scenes and groups setting per channel
l OLED display, LED indicators and buttons for local operation· Built in with 250V/5A(X 4) relay
l Easy installation and configuration via DLC-02 software
l Effect setting with timer events and input devices
l Upto 255 timer events
l Support 8 sequences schedule up to 16 steps per sequence· Support DALI-2 devices with Part 207/209/301/302/303/304
l Support DT8 colour control(Tunable white,RGBW ,xy-coordinate)· Built in with Modbus TCP/IP protocol
l 5 years warranty

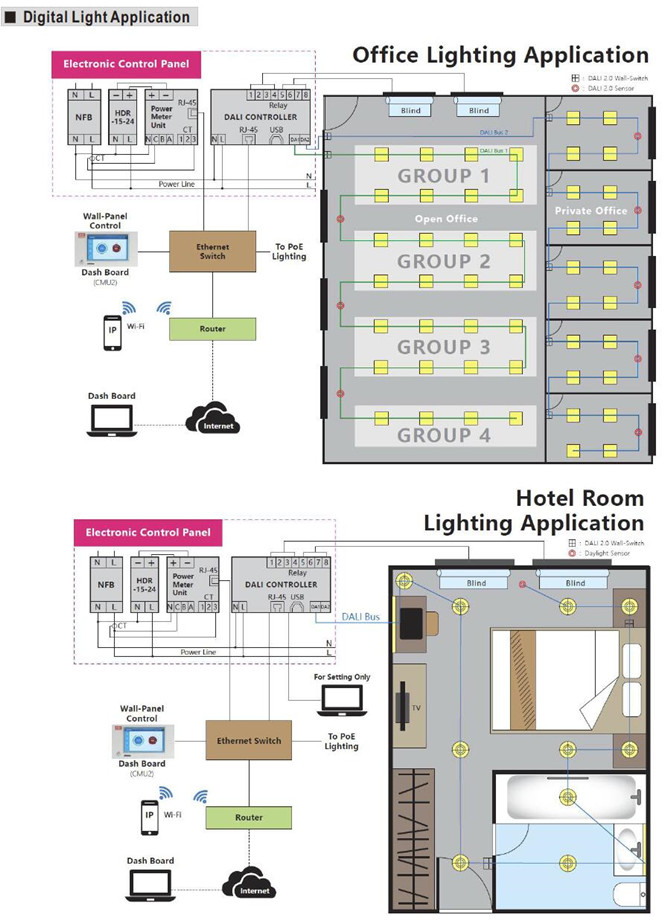

Meanwell DLC-02 Applications
l Office lighting
l Smart home lighting
l Luxury villas lighting
l LED indoor lighting
l Human centric lighting control
l RGBW lighting control
l Building automation system

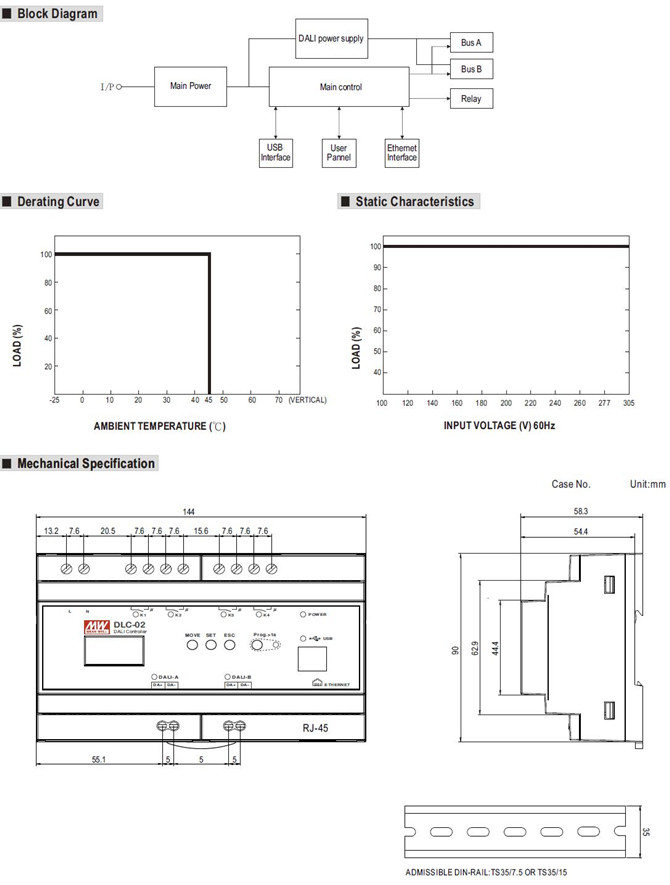

Meanwell DLC-02 Mechanical Diagram
