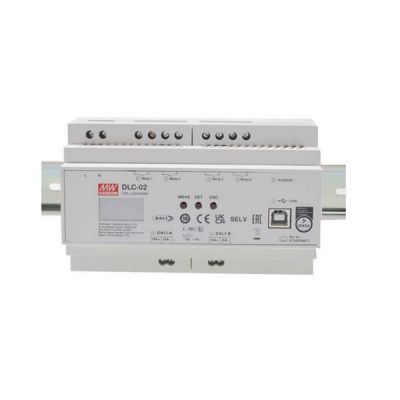

DLC-02-KN
204.15
Details
Meanwell DLC-02-KN Series is a KNX to DALI gateway used to connect a digital DALI lighting system to the KNX installation. It enables the room-based lighting control units to be conveniently incorporated into the higher-level KNX building management system. This device transforms switch and dim commands from the connected KNX system into DALI telegrams and status information from the DALI bus into KNX telegrams. At the same time, DLC-02-KN supports up to 128 DALI participants via two independent DALI Bus. The DALI Bus power supply comes directly within DLC-02-KN, so no additional DALI power supply is required. Moreover, this device comes in 4 built-in relays, providing switching possibilities for home applications and non-dimmable lighting. In addition, DLC-02-KN is also integrated with several features. The Sequence function allows users to customize a series of brightness values and color gradients with limited cycles (1-255) or unlimited cycles, which is suitable for entertainment applications. Thanks to an embedded battery, time is memorized even AC is lost. The clock of DLC-02-KN can be synchronized in real-time. Therefore, the regular events and actions can be scheduled by the Timer function accordingly. Furthermore, Standby switch-off function can be realized in combination with a KNX switch actuator (e.g., KAA-8R-S). Through this setup, when all DALI devices are under OFF status, DLC-02-KN can inform the actuator to cut-off AC input of DALI ECGs to save energy.
Meanwell DLC-02-KN Series Encoding
| DLC | Series Name |
| 02 | Number of output Channels |
| KN | KNX to DALI gateway |
Meanwell DLC-02-KN Series Model Specifications
| MODEL | DLC-02-KN | |
| OUTPUT | BUS VOLTAGE | Built-in DALI bus power supply; Voltage range : 2x16V |
| GUARANTEED SUPPLY CURRENT | 2x240mA | |
| MAXIMUM SUPPLY CURRENT | 2x250mA | |
| RATED POWER | 7.68W | |
| SETUP,RISE TIME | 250ms, 50ms/115VAC,230VAC | |
| INPUT | VOLTAGE RANGEF | 100~305VAC, 140~430VDC,(class II ) |
| REQUENCY RANGE | 47~63Hz | |
| AC CURRENT(Typ.) | 0.5A/115VAC 0.25A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 45A/230VAC | |
| PROTECTION | SHORT CIRCUIT | Short circuit delay 0.7S shutdown,Restart period 5S, Retry time 0.7S |
| FUNCTION | USB INTERFACE | 1 USB slave connector , type-B |
| DISPLAY | OLED display for easy operation | |
| INDICATOR | 2*LED indicators for BUS voltage; 4*LED indicators for relay ;1*LED indicators for power on | |
| GENERIC SETTING | Three buttons( MOVE, SET,ESC) on the front panel to set and view settings | |
| KNX | DALI Gateway(KNX type) | |
| Relay | 10A/125VAC ,5A/250VAC | |
| ENVIRONMENT | WORKING TEMP. | -25 ~ +45℃ |
| WORKING HUMIDITY | 5 ~ 93% RH non-condensing; comply with climatic EN50090-2-2 | |
| STORAGE TEMP., HUMIDITY | -25 ~ +70℃, 10 ~ 95% RH non-condensing | |
| VIBRATION | 5 ~ 150Hz, 2G 12min./1cycle, each along X, Y, Z axes according to EN50090-2-2 | |
| SAFETY & EMC | SAFETY STANDARDS | Compliance to BS EN/EN63044-1, BS EN/EN63044-3 |
| DALI STANDARDS | Compliance to BS EN/EN62368-101,BS EN/EN62386-103 | |
| EMC EMISSION | Compliance to BS EN/EN63044-5-2, BS EN/EN63044-5-3(BS EN/EN50491-5-2/3) | |
| EMC IMMUNITY | Compliance to BS EN/EN63044-5-2, BS EN/EN63044-5-3(BS EN/EN50491-5-2/3) | |
| Others | MTBF | 562.4K hrs min. Telcordia SR-332 (Bellcore) ; 167.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 144*90*58.3mm (L*W*H) | |
| PACKING | 0.43Kg; 30pcs/13.9Kg/ 1.30CUFT | |
| DIN RAIL MOUNTING | 35 mm rail;8 units wide | |
| ENCLOSURE MATERIAL | ABS-V0 | |
Meanwell DLC-02-KN Series Features
l KNX to DALI gateway (DALl-2)
l 2 independent DALI Bus channels with built in DALI power supply (up to 250mA per bus)
l Connect up to 2X64 DALI ECGs
l Max 16 scenes and groups setting per channel
l OLED display, LED indicators and buttons for local operation· Built in with 250V/5A(X 4) relay
l Easy installation and configuration via E TS (database and DCA)
l Program via ETS5/ ETS6 software
l Up to 16 Sequence (32 Steps per Sequence) and 16 Timer (6 Operations per Timer)can be parameterized
l Support DALI-2 devices with part 202/206/207/208/209 (DT1/DT5/DT6/DT7/DT8)
l 5 years warranty
Meanwell DLC-02-KN Series Applications
l Office lighting
l Smart home lighting
l Luxury villas lighting
l LED indoor lighting
l Human centric lighting control
l RGBW lighting control
l Building automation system

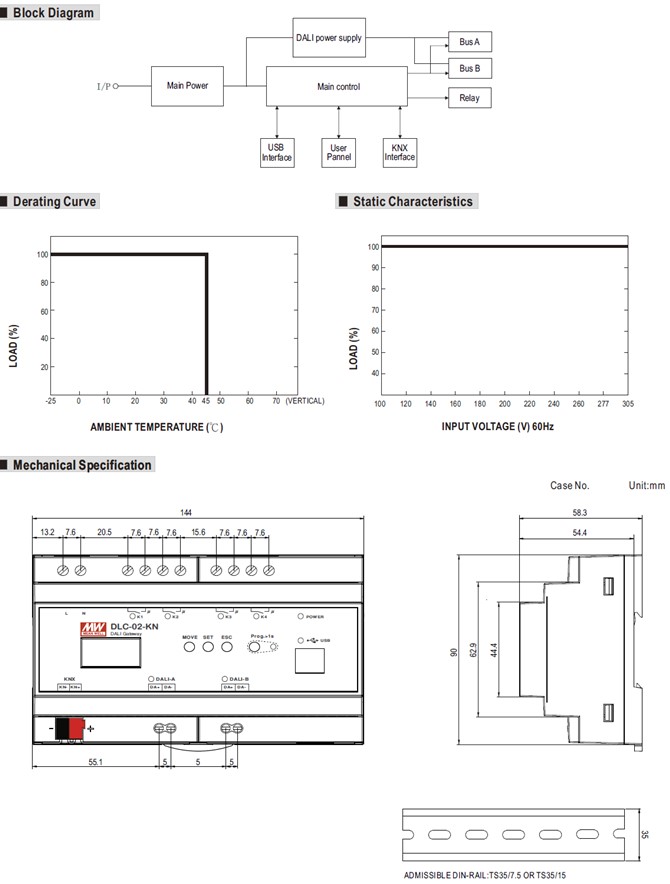

Meanwell DLC-02-KN Series Mechanical Diagram
