DKMW30G
24.03
Details

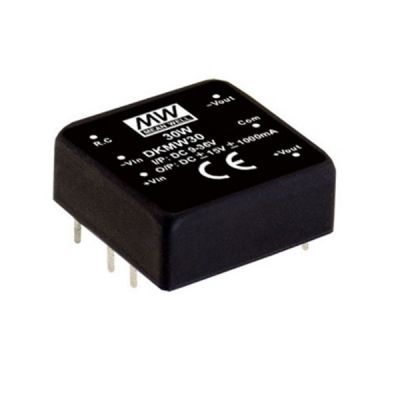

Meanwell DKMW30G Series is 30W isolated and regulated DC-DC Converter. The product outstands module type and DIP 1"x1" package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 90%, wide working temperaturerange -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without extra components, Continuous-mode short circuit, overload, over temperature, input undervoltage protection, Remote ON/OFF and trimmable output voltage etc. Furthermore, the models account for different input voltage 9~36V and 18~75V 4:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±12V/±15V for dual outputs. Considering its longevity, high reliability, and excellent performance, Meanwell DKMW30G Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DKMW30G Series Encoding
| DKMW | Series Name S: Single Output D: Dual Output |
| 30 | Rated Wattage |
| G | Input Voltage ( F: 9-36Vdc, G: 18-75Vdc) |
| 12 | Output Voltage ( 3.3/5/12/15Vdc, ±12/±15Vdc) |
Meanwell DKMW30G Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DKMW30G-12 | Normal 48V (18~75V) | 8mA | 710mA | ±12V | ±0 ~ 1250mA | 88.0% | 1250μF |
| DKMW30G-15 | 8mA | 702mA | ±15V | ±0 ~1000mA | 89.0% | 1000μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc , G: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 24Vin models : 50Vdc, 48Vin models : 100Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION | Fuse recommended. 24Vin models: 6A delay time Type, 48Vin models: 3A delay time Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 30W | ||||||
| RIPPLE & NOISE | 3.3/5Vout models: 75mVp-p, other models:100mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | Single output models:±0.2%, Dual output models:±1% | ||||||
| SWITCHING FREQUENCY | 3.3/5Vout models: 270KHz, other models: 330KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% (Single output model only) | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 170% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc | ||||||
| Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ max | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 60℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 3.3/5Vout models: 860Khrs, Other models: 1170Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 25.4*25.4*10.2mm (1*1*0.4 inch) | ||||||
| CASE MATERIAL | Black coated copper with non-conductive base | ||||||
| PACKING | 19.2g ; 12pcs/per tube, 600pcs/50 tube/per carton | ||||||
Meanwell DKMW30G Series Features
l DIP 1"x1" package with industry standard pinout
l 4:1 ultra-wide input range
l Operating temperature range -40 ~+85℃
l Remote ON/OFF control and Trimming output (±10%)
l High efficiency up to 90%
l 1.5KVDC I/O isolation
l No minimum load required
l Comply to BS EN/EN55032 radiated Class A without additional components
l Protections: Short circuit (Continuous)/Overload/Over voltage/Over temperature/Input under voltage
l 3 years warranty
Meanwell DKMW30G Series Applications
l Analyzer
l Detector
l Data switch
l Instrument
l Wireless network
l Telecom/Datacom system
l Industrial control facility

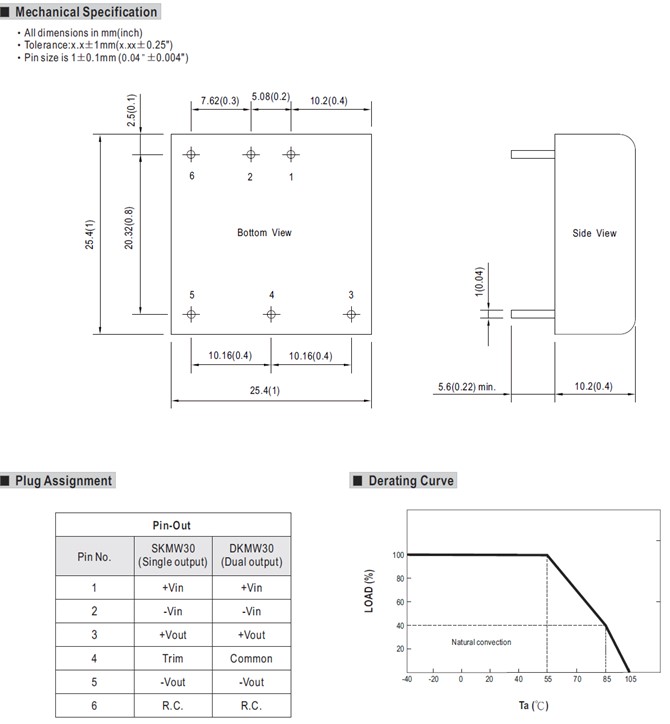

Meanwell DKMW30G Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
