DEPARTMENTS
DKMW20F
35.71

DKMW20F

As low as $35.71

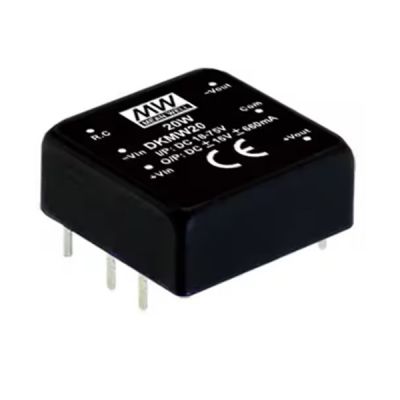

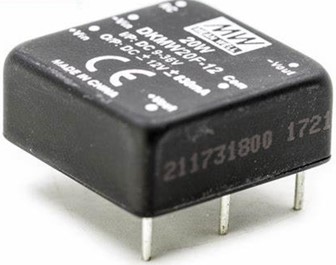

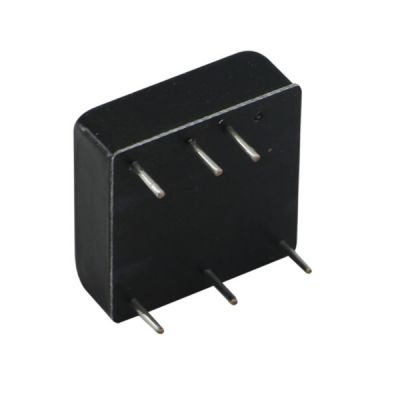

Meanwell 20W 1"x1" Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DKMW20F
Brand Meanwell
Details

Meanwell DKMW20F Series is 20W isolated and regulated DC-DC Converter. The product stands out with module type and DIP 1"x1"package. Meanwhile, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, Continuous-mode short circuit, overload, over temperature, input undervoltage protection, remote ON/OFF and trimmable output voltage etc. What's more, the models account for different input voltage 9~36V and 18~75V 4:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±12V/±15V for dual outputs. Considering its longevity, high reliability, and excellent performance, Meanwell DKMW20F Series is suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

DKMW20F Meanwell Power Supply 20W 24V DIP Package DC-DC Regulated Converter DKMW20F-12 DKMW20F-15 SKMW20F low cost YCICT

Meanwell DKMW20F Series Encoding

DKMW Series Name S: Single Output D: Dual Output
20 Rated Wattage
F Input Voltage ( F: 9-36Vdc, G: 18-75Vdc)
12 Output Voltage ( 3.3/5/12/15Vdc, ±12/±15Vdc)

Meanwell DKMW20F Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DKMW20F-12 Normal 24V (9~36V) 10mA 936mA ±12V ±0 ~ 830mA 87.0% 800μF
DKMW20F-15 10mA 936mA ±15V ±0 ~660mA 87.0% 650μF
INPUT VOLTAGE RANGE F: 9~36Vdc , G: 18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER Pi type
PROTECTION Fuse recommended. 24Vin models: 3A delay time Type, 48Vin models: 1.5A delay time Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 20W
RIPPLE & NOISE 3.3/5Vout models: 75mVp-p, other models:100mVp-p
LINE REGULATION ±0.2%
LOAD REGULATION Single output models:±0.2%, Dual output models:±1%
SWITCHING FREQUENCY 3.3/5Vout models: 270KHz, other models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.) ±10% (Single output model only)
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 110 ~ 170% rated output power
Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc
Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
CASE TEMPERATURE +105 max
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% /(0 ~ 60)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 5 sec./260max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 1500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032(CISPR32) NA
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 3.3/5Vout models: 910Khrs, Other models: 1220Khrs MIL-HDBK-217F(25)
DIMENSION 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL Black coated copper with non-conductive base
PACKING 19g ; 12pcs/per tube, 600pcs/50 tube/per carton

Meanwell DKMW20F Series Features

l  DIP 1"x1" package with industry standard pinout

l  3 years warranty

l  1.5KVDC Il/O isolation

l  High efficiency up to 89%

l  4:1 ultra-wide input range

l  Operating temperature range -40 ~ +85℃

l  No minimum load required

l  Remote ON/OFF control and Trimming output (±10%)

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage

DKMW20F Meanwell Power Supply 20W 24V DIP Package DC-DC Regulated Converter DKMW20F-12 DKMW20F-15 SKMW20F YCICT

Meanwell DKMW20F Series Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Telecom/Datacom system

l  Wireless network

l  Industrial control facility

DKMW20F Meanwell Power Supply 20W DIP Package DC-DC Regulated Converter DKMW20F-12 DKMW20F-15 SKMW20F YCICT

Meanwell DKMW20F Series Mechanical Diagram

DKMW20F Meanwell Power Supply 20W DIP Package DC-DC Regulated Converter DKMW20F-12 DKMW20F-15 SKMW20F low cost YCICT
