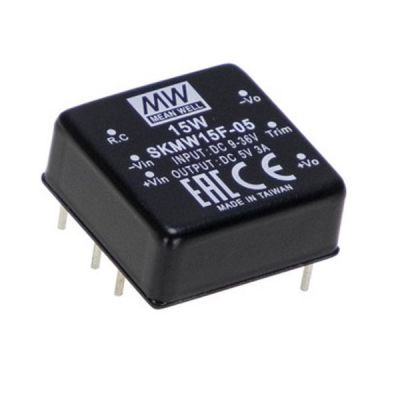

Meanwell 15W 1"x1" Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell DKMW15F
Brand Meanwell
Details

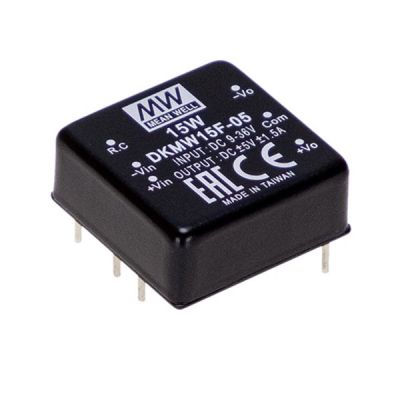

Meanwell DKMW15F Series is 15W isolated and regulated DC-DC Converter. The unit highlights module type and DIP 1"x1"package. Meanwhile, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperaturerange -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, input under voltage protection, etc. What's more, the models account for different input voltage 9~36V and 18~75V 4:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Considering its longevity, high reliability, and excellent performane, Meanwell DKMW15F Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

DKMW15F Meanwell Power Supply 15W 24V DC-DC Regulated Converter DKMW15F-05 DKMW15F-12 DKMW15F-15 SKMW15F YCICT

Meanwell DKMW15F Series Encoding

DKMW Series Name S: Single Output D: Dual Output
15 Rated Wattage
F Input Voltage ( F: 9-36Vdc, G: 18-75Vdc)
12 Output Voltage ( 3.3/5/12/15Vdc, ±5/±12/±15Vdc)

Meanwell DKMW15F Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
DKMW15F-05 Normal 24V (9~36V) 35mA 750mA ±5V ±0~1500mA 85.0% 1000μF
DKMW15F-12 35mA 730mA ±12V ±0~625mA 88.0% 470μF
DKMW15F-15 35mA 700mA ±15V ±0~500mA 89.0% 330μF
INPUT VOLTAGE RANGE F: 9~36Vdc , G: 18~75Vdc
FILTER Pi type
PROTECTION (Typ.) Fuse recommended. 24Vin models: 4.0A delay time Type, 48Vin models: 2.0A delay time Type
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 10W for 3.3V output ; 15W for other output
RIPPLE & NOISE 50mVp-p (max.)
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SWITCHING FREQUENCY 300KHz
EXTERNAL TRIM ADJ. RANGE (Typ.) Single output only; ±10% for 3.3V/5V, -20%~+10% for 12V/15V
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 110 ~ 220% rated output power
Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by diode for single output ; Hiccup mode for dual output
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 24Vin (F-type): 9.0Vdc, 48Vin (G-type): 17.3Vdc
Shutdown voltage: 24Vin (F-type): 8.6Vdc, 48Vin (G-type): 16.5Vdc
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.5Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +85 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max
WORKING HUMIDITY 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 71)
SOLDERING TEMPERATURE 1.5mm from case of 3 ~ 5sec./265 (max)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:3KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 1200pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A without external components
Class B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 contact ±4KV
Radiated Susceptibility BS EN/EN61000-4-3 3V/m
EFT/Burest BS EN/EN61000-4-4 ±0.5KV
Surge BS EN/EN61000-4-5 Line-Line ±0.5KV
Conducted BS EN/EN61000-4-6 3Vrms
OTHERS MTBF 220Khrs MIL-HDBK-217F (25)
DIMENSION 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL Black coated metal with non-conductive base
PACKING 20g; 10pcs/per tube, 600pcs/60 tube/per carton

Meanwell DKMW15F Series Features

l  3 years warranty

l  3KVDC I/O isolation

l  High efficiency up to 89%

l  4:1 ultrawide input range

l  Operating temperature range -40 ~ +85℃

l  DIP 1"x1" package with industry standard pinout

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage

DKMW15F Meanwell Power Supply 15W DIP Package DC-DC Regulated Converter DKMW15F-05 DKMW15F-12 DKMW15F-15 SKMW15F YCICT

Meanwell DKMW15F Series Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Telecom/Datacom system

l  Wireless network

l  Industrial control facility

DKMW15F Meanwell Power Supply 15W 24V DIP DC-DC Regulated Converter DKMW15F-05 DKMW15F-12 DKMW15F-15 SKMW15F YCICT

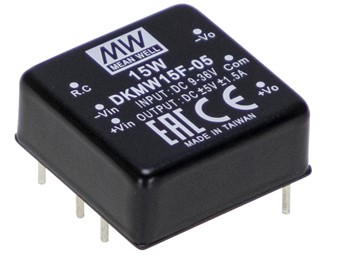

Meanwell DKMW15F Series Mechanical Diagram

DKMW15F Meanwell Power Supply 15W DIP DC-DC Regulated Converter DKMW15F-05 DKMW15F-12 DKMW15F-15 SKMW15F YCICT
