DKM30F-15N
22.59
Details

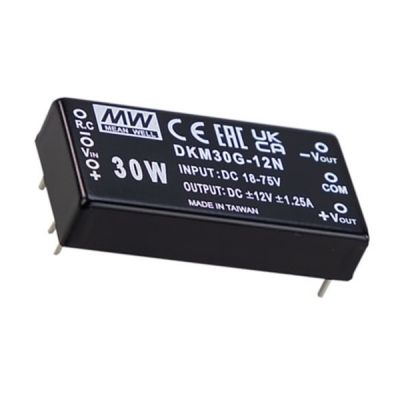

Meanwell DKM30F-N Series is 30W isolated and regulated DC-DC Converter. The product highlights module type and DIP 2"x1" package. Meanwhile, the main features are as foolowing: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, continuous-mode short circuit, overload, overvoltage protection, remote ON/OFF and trimmable output voltage etc. Additionally, the models account for different input voltage 9~36V and 18~75V 4:1 ultra-wide input range, and various output voltage 5V/12V/15V for single output, and ±12V/±15 for dual outputs. Considering its high efficiency, excellent reliability and longevity, Meanwell DKM30F-N Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DKM30F-N Series Encoding
| DKM | Series Name S: Single Mode, D: Dual Mode |
| 30 | Rated Wattage |
| F | Input Voltage (F: 9-36Vdc, G: 18-75Vdc) |
| 12 | Output Voltage( 5/12/15Vdc, '±12/±15Vdc) |
| N | New Series |
| ST | Blank: PCB Mounting Type (Standard Model) |
| ST: Screw Terminal Type ( Optional Model) |
Meanwell DKM30F-N Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DKM30F-12N□ | Nominal 12V, 24V (9~36V) | 28mA | 2850mA | ±12V | ±0-1250mA | 88% | 150μF |
| DKM30F-15N□ | 38mA | 2800mA | ±15V | ±0-1000mA | 86% | 100μF | |
| INPUT | VOLTAGE RANGE | F:9~36Vdc, G:18~75Vdc | |||||
| FILTER | Pi type | ||||||
| PROTECTION | Fuse recommended (24Vin : 6A Slow-Blow type, 48Vin: 4A Slow-Blow) | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2% max. | |||||
| RATED POWER | 30W | ||||||
| RIPPLE & NOISE | 150mVp-p max. | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 380KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% (Single output model only) | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 110~230% | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE INPUT | Protection type : Shutdown output voltage (F type : 40Vdc typ. , G type: 86Vdc typ.) | ||||||
| OVER VOLTAGE OUTPUT | Clamp by TVS diodes | ||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >2.5~5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max. | ||||||
| WORKING HUMIDITY | 5%~95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.05% / ℃ | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3~5 sec./265℃ max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | N/A | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | ±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | 3V/m | |||||
| EFT/Bursts | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | ±0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | 3V (e.m.f.) | |||||
| OTHERS | MTBF | >250Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 50.8*25.4*11.2mm (2*1*0.44 inch) | ||||||
| CASE MATERIAL | Six-side shielded case | ||||||
| PACKING | Blank Type: 31g; 10pcs/per tube, 400pcs/40 tube/per carton ST Type: 50g; 10pcs/Box, 120pcs/12 Box/per carton |
||||||
Meanwell DKM30F-N Series Features
l 3 years warranty
l 4:1 ultra-wide input range
l No minimum load required
l High efficiency up to 89%
l DIP 2"x1" package with industry standard pinout
l Remote ON/OFF control and Trimming output (±10%)
l Screw terminal type available (Optional)
l 24Vo model available (Only single output optional)
l Operating temperature range -40~+90℃ (-40~+60℃ no derating)
l Comply to BS EN/EN55032 radiated Class A without additional components
l Protections: Short circuit (Continuous)/Overload/Over voltage
l 3KVDC I/O isolation
Meanwell DKM30F-N Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Telecom/Datacom system
l Wireless network
l Industrial control facility
Meanwell DKM30F-N Series Mechanical Diagram
