DKM10C
14.81
Details

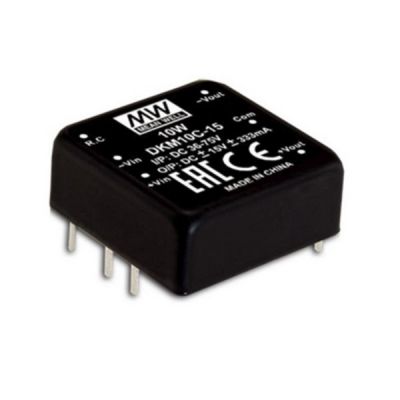

Meanwell DKM10C Series is 10W isolated and regulated DC-DC Converter. The product outstands module type and DIP 1"x1" package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 90%, wide working temperaturerange -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without extra components, continuous-mode short circuit protection, etc. In addition, the models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its long lifespan, high reliability, and excellent performane, Meanwell DKM10C Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell DKM10C Series Encoding
| DKM | Series Name S: Single Output D: Dual Output |
| 10 | Rated Wattage |
| C | Input Voltage ( E: 4.7-9Vdc, A: 9-18Vdc, B: 18-36Vdc, C: 36-75Vdc) |
| 05 | Output Voltage ( 3.3/5/9/12/15Vdc, ±5/±12/±15Vdc) |
Meanwell DKM10C Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| DKM10C-05 | 48V (36~75V) | 15mA | 246mA | ±5V | ±0~1000mA | 85.0% | 1000μF |
| DKM10C-12 | 15mA | 239mA | ±12V | ±0~416mA | 86.0% | 440μF | |
| DKM10C-15 | 15mA | 239mA | ±15V | ±0~333mA | 89.0% | 330μF | |
| INPUT | VOLTAGE RANGE | E: 4.7~9Vdc , A: 9~18Vdc , B: 18~36Vdc , C: 36~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models : 12Vdc, 12Vin models : 25Vdc, 24Vin models : 50Vdc, 48Vin models : 100Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 5A delay time Type, 12Vin models: 4A delay time Type, 24Vin models: 2A delay time Type, 48Vin models: 1A delay time Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 10W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | Single output models:±0.2%, Dual output models:±1% | ||||||
| SWITCHING FREQUENCY | 350KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | ±10% (Single output model only) | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 140% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by diode | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc | ||||||
| Shutdown voltage: 5Vin: 4.2Vdc, 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 32Vdc | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >5.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ max | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1000pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032(CISPR32) | NA | |||||
| Radiated | BS EN/EN55032(CISPR32) | Class A Class B with external components |
|||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | 1200Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 25.4*25.4*10.2mm (1*1*0.4 inch) | ||||||
| CASE MATERIAL | Black coated copper with Non-Conductive Base | ||||||
| PACKING | 18.3g ; 12pcs/per tube, 600pcs/50 tube/per carton | ||||||
Meanwell DKM10C Series Features
l 3 years warranty
l DIP 1"x1" package with industry standard pinout
l Operating temperature range -40~+85℃
l Remote ON/OFF control and Trimming output (±10%)
l 2:1 wide input range
l 1.5KVDC l/O isolation
l No minimum load required
l High efficiency up to 90%
l Comply to BS EN/EN55032 radiated Class A without additional components
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
Meanwell DKM10C Series Applications
l Analyzer
l Detector
l Data switch
l Instrument
l Industrial control facility
l Telecom/Datacom system
l Wireless network
Meanwell DKM10C Series Mechanical Diagram
