Meanwell 3200~12800W 1U Distributed Power/Charger System

- +
Availability:In stock
SKU Meanwell DHP-12K1U Power System
Brand Meanwell
Details

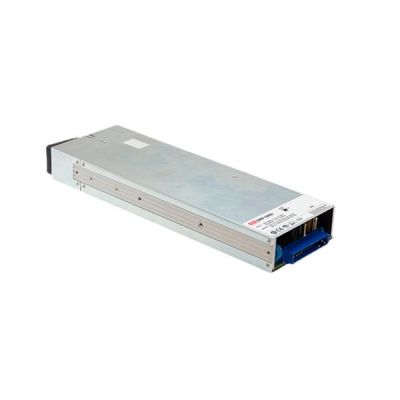

Meanwell DHP-12K1U Rack Power System and DHB- 1U rack charger system are the complete solution for the power distribution utilizing the rack configuration with the 1U low profile. Starting with a single unit of 3200W, DRP-3200 is the front end rectifier (or power supply) and DBR-3200 is the charger module. With the active current sharing function, the rectifier or charger can provide up to 12800W of power when paired with a single-layer 19-inch rack-mount chassis DHP-1U. When the rectifier is stacked with two layers, it can provide 25600W of power.

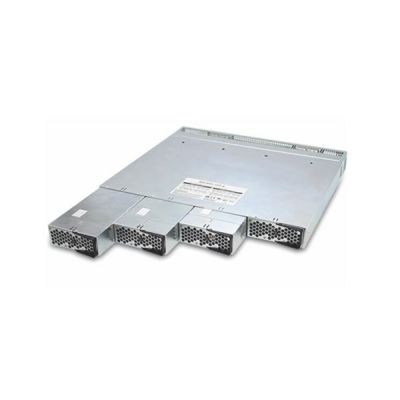

Meanwell DHP-1U Rack Power System DHP-12K1U-24 DHP-12K1U-48 DHB-12K1U-24 DHB-12K1U-48 ycict

Meanwell DHP-1U Series Encoding

Rack Shelf
DHP Series Name
1U Profile of the system
T T: Terminal block

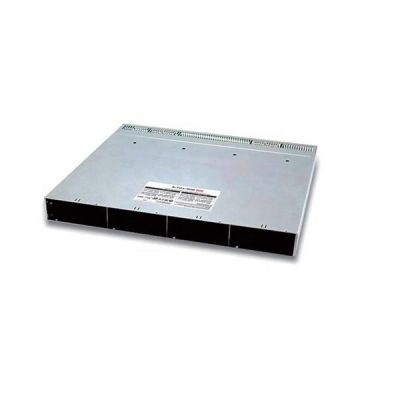

A Rack Shelf for 3200W Unit
Whole System
DHP Series Name DHP: Power Supply System
Series Name: DHB: Charger System
12K 12K: Maximum wattage with fully-populated shelf
1U Profile of the system
T T: Terminal block
24 Output Voltage ( 24V/48V)

Meanwell DHP-1U Series Model Specifications

Model DHP-12K1U-24 DHP-12K1U-48
Output Rectifier DRP-3200-24 DRP-3200-48
Output Voltage 24V 48V
Max Output Current 532A 1268A
Max Output Power 12768W 12864W
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT (Typ.) per RECTIFIER 17A/230VAC
LEAKAGE CURRENT per RECTIFIER <1.5mA / 230VAC
ENVIRONMENT WORKING TEMP -30 ~ +70, when 3 or 4 power/charger units are paralleled in power shelf, highest working temperature shall de-rate to 40 at full load
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:700VDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 ----
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
OTHERS MTBF 4484.6K hrs min. Telcordia SR-332 (Bellcore) ; 1090.4K hrs min. MIL-HDBK-217F (25)
DIMENSION Rack 400*482.6*44(L*W*H, with mounting bracket) ; 400*440*44(L*W*H, without mounting bracket
PACKING 4.85Kg; 3pcs/17.4Kg/1.8CUFT

Meanwell DHP-1U Series Features

l  Universal AC input/ Full range

l  1U profile 19" rack shelf, fitting four 3200W modules up to 12800W with active current sharing

l  Output voltage and current programmable

l  Support hot swap (hot plug)

l  Built-in PMBus protocol (Optional CANBus protocol)

l  5 years warranty

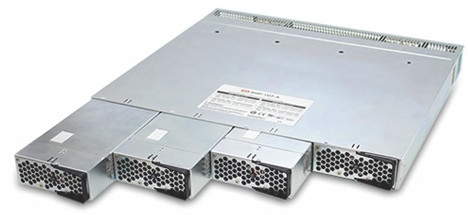

Meanwell DHP-1U Series Features Meanwell DHP-1U price and specs DHP-1U rack system ycict

Meanwell DHP-1U Series Applications

l  Distributed power architecture system

l  Wireless/telecommunication solution

l  Electric vehicle or marine charger station

l  DC UPS or emergency backup

l  Wastewater treatment system

l  Electrolysis system

DHP-1U Meanwell DHP-1U Series Features price and specs DHP DHB rack system ycict

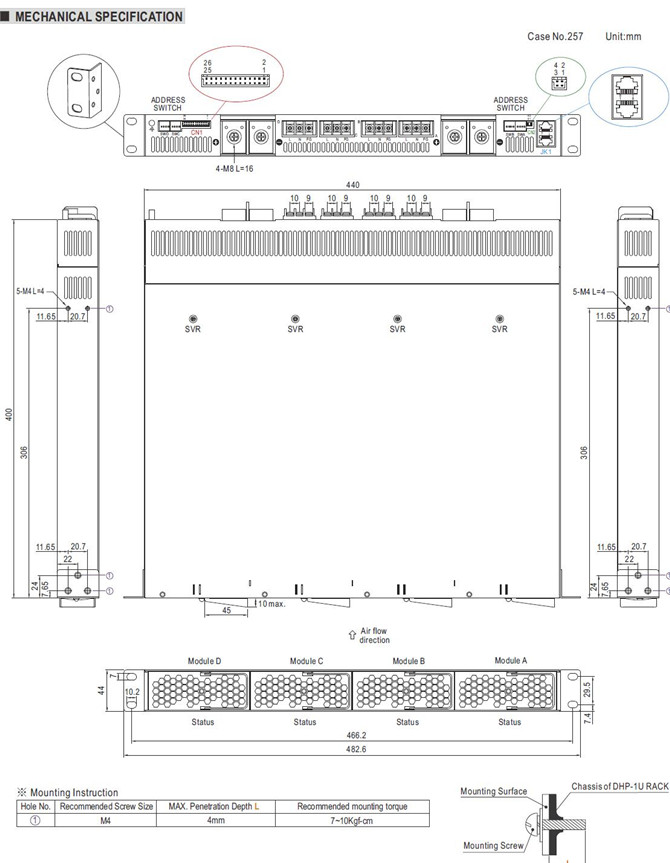

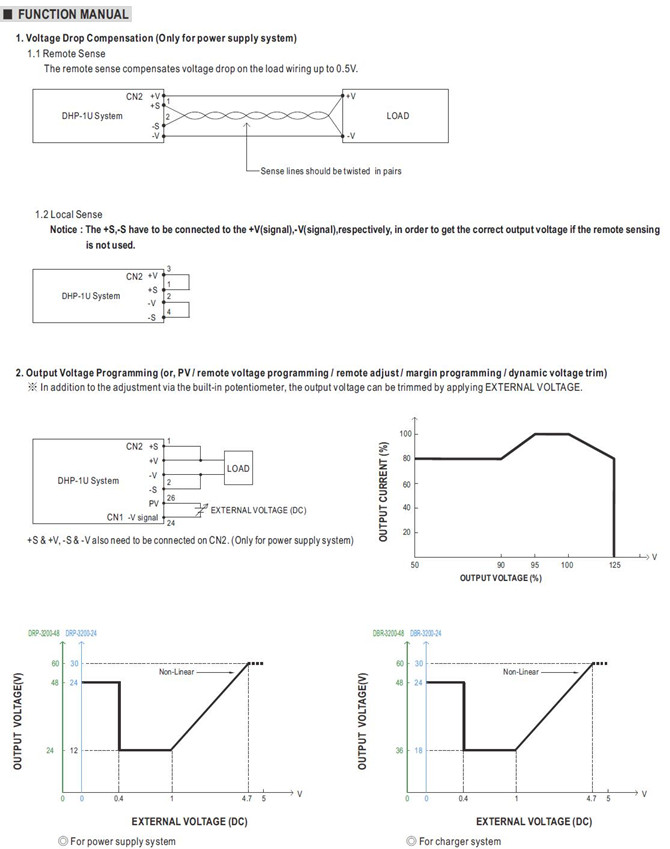

Meanwell DHP-1U Series Mechanical Diagram

Meanwell DHP-1U Meanwell DHP-1U series price and specs new and original ycict

Meanwell DHP-1U Meanwell DHP-1U series price and specs DHP DHB YCICT

Meanwell DHP-1U Rack Power System
